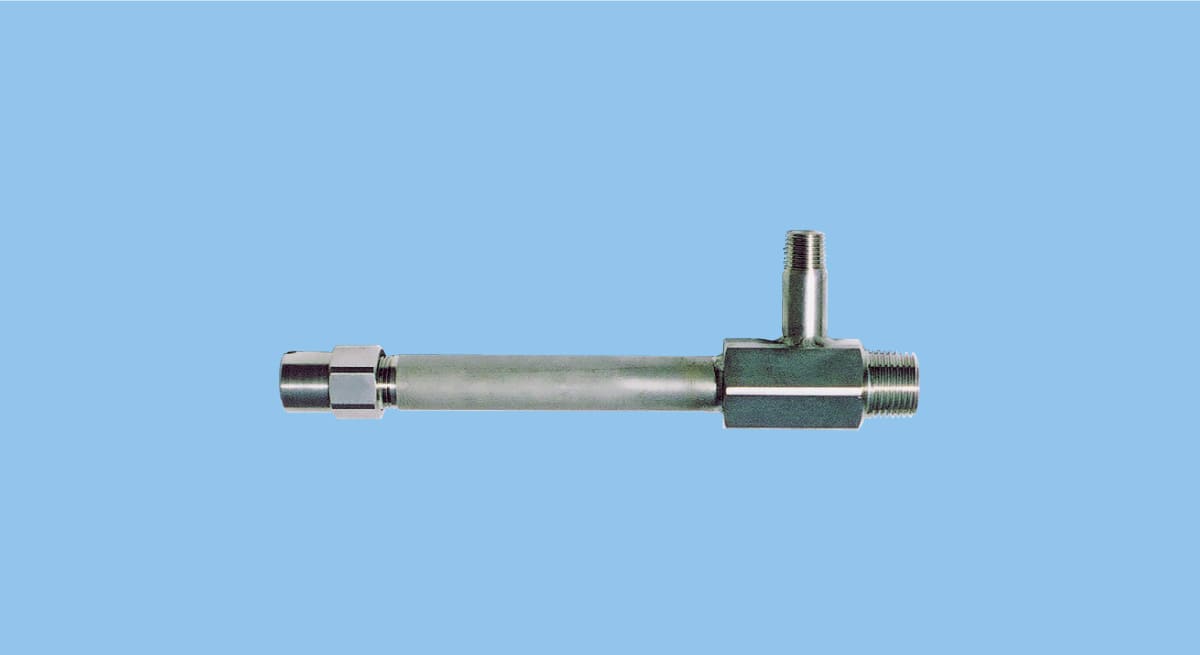

Spray Gun Unit with BIM Nozzles BIMV
Pneumatic flat spray nozzles with a wide adjustable range of fl…
- Clog Resistant
- Industrial Cooling
Even Flat Spray Nozzles
DOVEA
Pneumatic even flat spray nozzles offer a wide range of adjustable flow rates and minimal variation in spray angle.
Thanks to their uniform spray distribution, these nozzles are suitable for use in a multi-nozzle arrangement.
Specs
| Main Material | S303, S304 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | Internal mixing pre-mix type |
| Spray Droplet Measuring Method | Fraunhofer Diffraction Method |
| Fog Classification | Semi-coarse fog, Semi-fine fog |
| Mean Droplet Diameter | 50–200 μm |
| Spray Capacity (Flow-rate) | 0.42–40 L/min |
| Spray Angle | 55º, 70º, 95º, or 110º *1 |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) Spray angle measured at compressed air pressure of 0.3 MPa and liquid pressure of 0.7 MPa.
Note: Please refer to the catalog for detailed specifications including spray capacity (flow rate), mean droplet diameter, liquid and air inlet sizes.
Resources for Download
• Flat spray pneumatic nozzle producing a large volume of semi-fine atomization with a mean droplet diameter of 50 μm or more (*2).
• Liquid pressure type under the liquid pressures of 0.07–0.7 MPa.
• Large turn-down ratio with minimal variation in spray angle.
• Uniform distribution suitable for multiple-nozzle arrangements.
• Large free passage diameter minimizes clogging.
• Spray angle of 55ﾟ, 70ﾟ, 95ﾟ, or 110ﾟ.
*2) Measured by Fraunhofer diffraction method.
Applications
- Cooling: Gas, steel plates, steel pieces, moldings, etc.
- [Steelmaking industry]

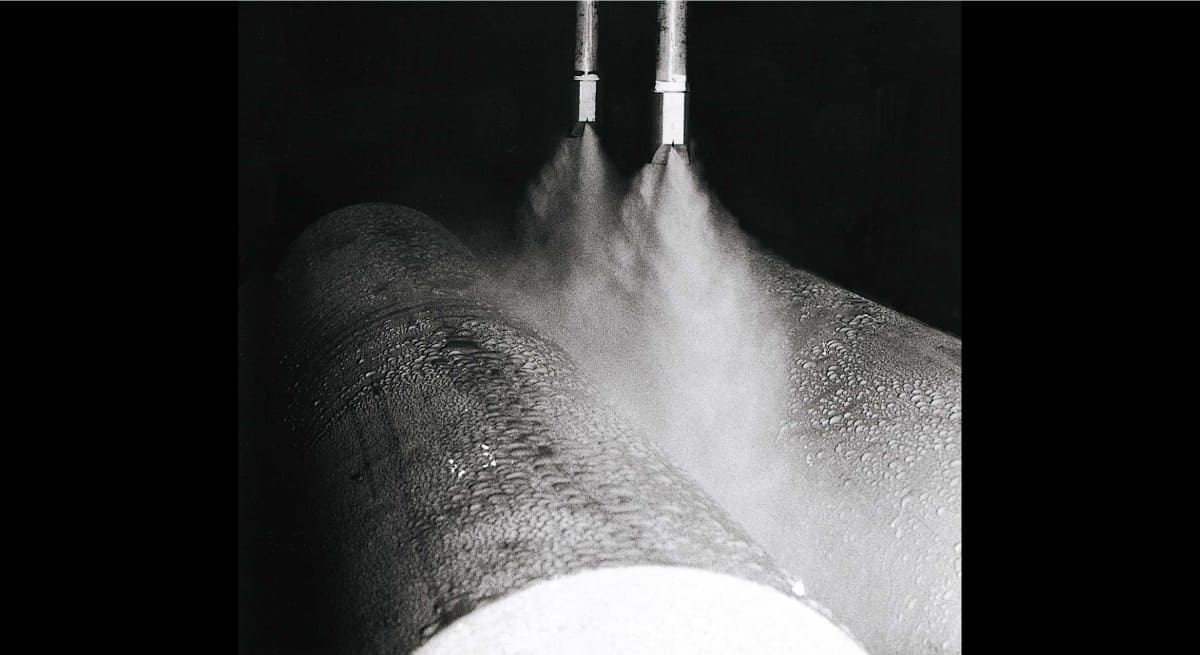

- Steel making process: Cooling continuous casted steel (bloom and slab)
- Rolling mill process: Cooling roll in heat treatment
Industries where this nozzle is used
- Steelmaking
- Pollution Control
