Full Cone Spray Nozzles

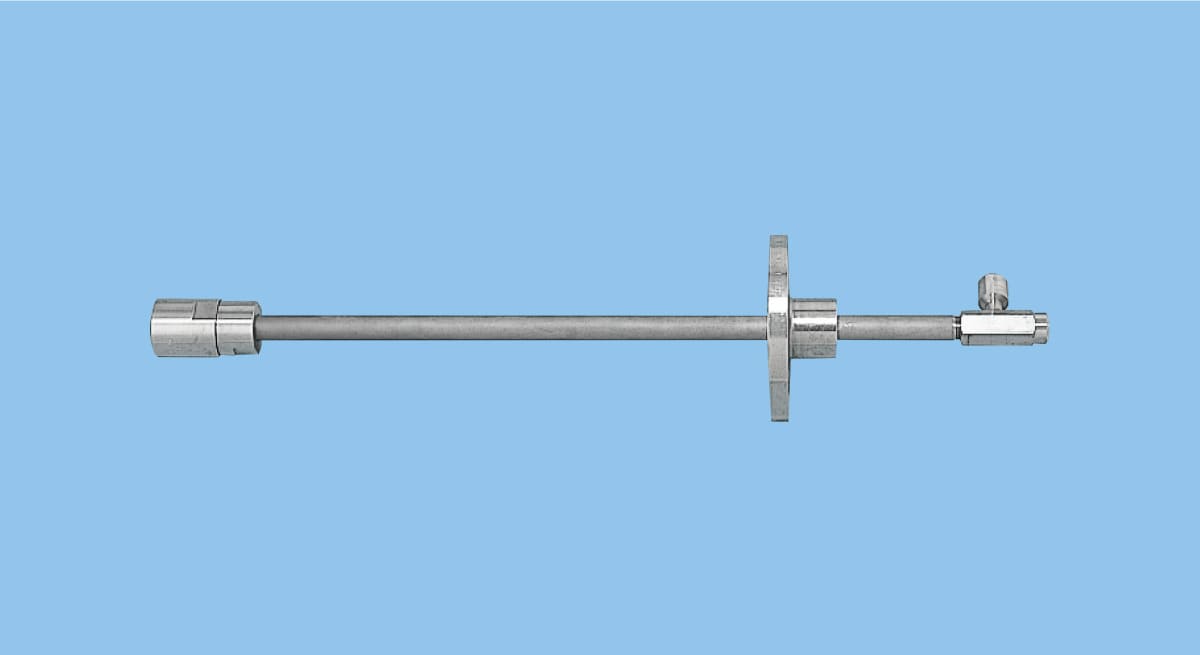

JJA

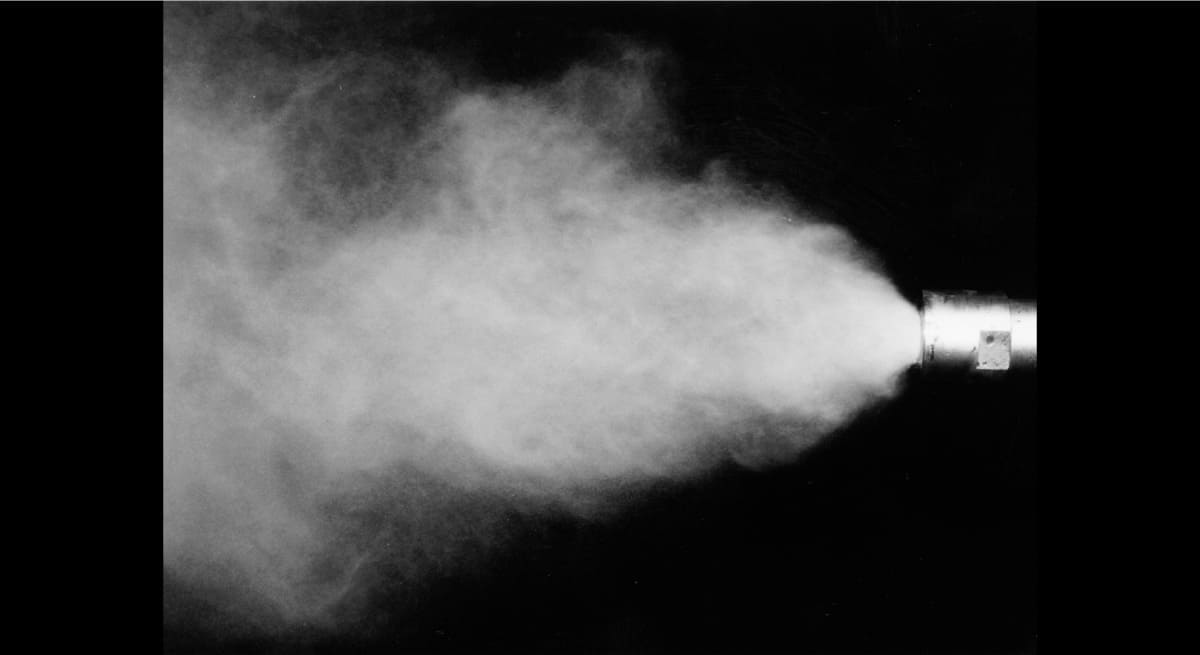

Pneumatic full cone spray nozzles produce a semi-fine to semi-coarse fog with a mean droplet diameter of 130 μm or larger. These nozzles feature a large free passage diameter, making them resistant to clogging and suitable for spraying sewage for combustion and other applications.
Specs
| Main Material | S316L, S304 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | Internal mixing pre-mix type |
| Spray Droplet Measuring Method | Immersion Sampling Method |
| Fog Classification | Semi-coarse fog, Semi-fine fog |
| Mean Droplet Diameter | 150–650 μm |
| Spray Capacity (Flow-rate) | 1.1–24.0 L/min *1 |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) Measured at compressed air pressure of 0.2-0.4 MPa and liquid pressure of 0.05-0.7 MPa.
Note: Please refer to the catalog for detailed specifications including spray capacity (flow rate), mean droplet diameter, liquid and air inlet sizes.
Resources for Download
• Full cone spray pneumatic nozzle producing a large volume of semi-fine to semi-coarse atomization with a mean droplet diameter of 130 μm or more (*2).
• Large turn-down ratio. Uniform spray droplet size distribution across the entire spray area.
• Clog-resistant design due to large free passage diameter is suitable for spraying factory effluents and waste water.
• Simple structure, easy maintenance.
*2) Measured by the immersion sampling method.
Applications
- Cooling: Gas, moldings
- Combustion: Waste water
Industries where this nozzle is used
- Steelmaking
- Pollution Control
