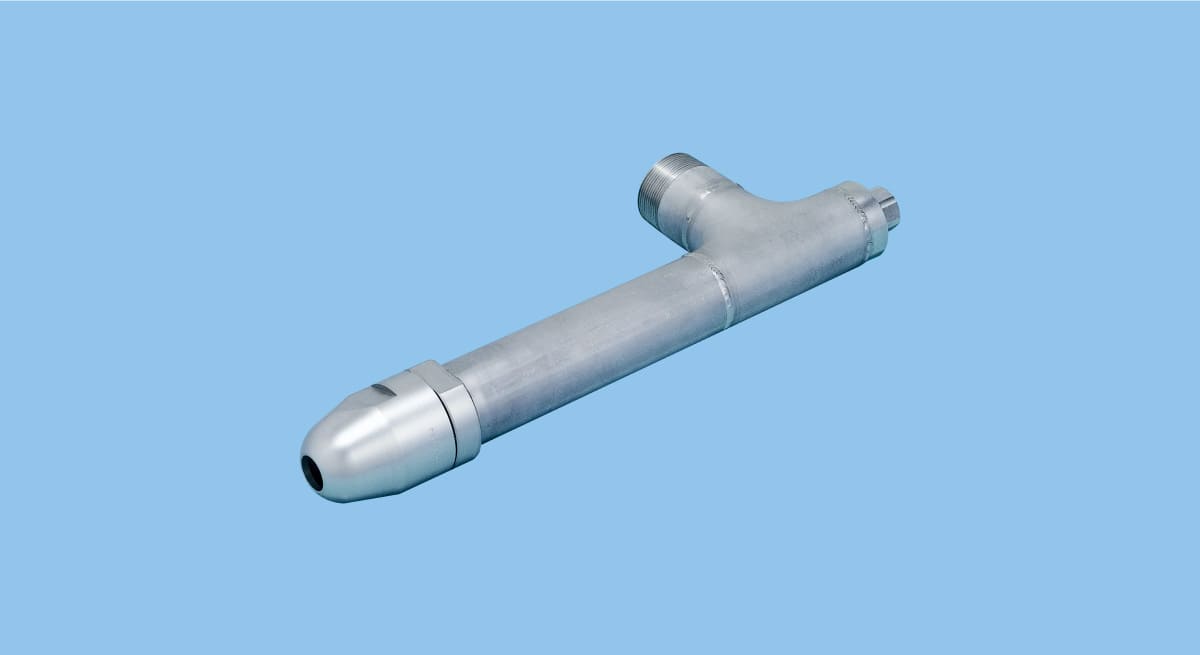

Full Cone Spray Nozzles (Blower Air Type)

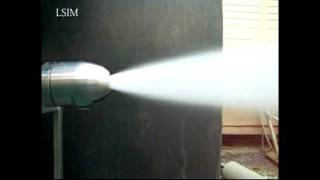

LSIM
Pneumatic full cone spray nozzles utilize blower air for atomization, resulting in running cost reductions of 1/2 to 2/3 compared to nozzles with equivalent performance using compressed air.
Specs
| Main Material | S316L, S304 |
|---|---|
| Air Supply | Blower air |
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | Internal mixing outer air type |
| Spray Droplet Measuring Method | Laser Doppler Method |
| Fog Classification | Semi-fine fog |
| Mean Droplet Diameter | 40–80 μm |
| Spray Capacity (Flow-rate) | 100–1,000 L/hr *1 |
| Spray Angle | 20º |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) Measured at liquid pressure of 0.1–2.0 MPa.
Note: Please refer to the catalog for detailed specifications including spray capacity (flow rate), mean droplet diameter, liquid and air inlet sizes.
Resources for Download

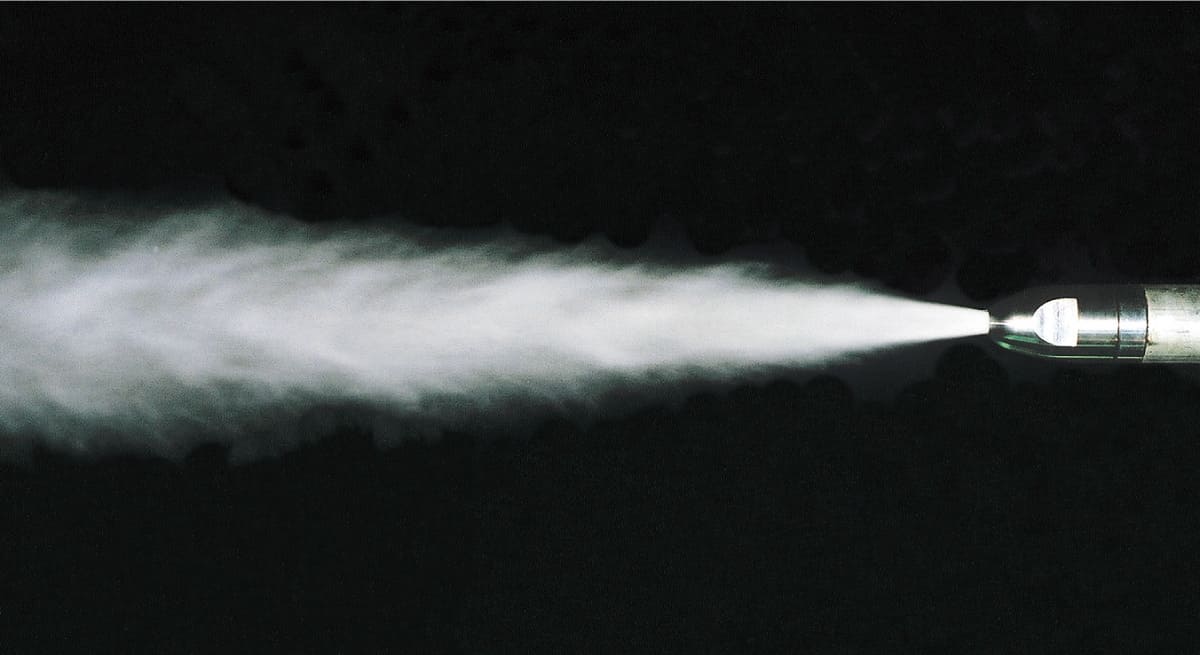

• Full cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 40 μm or more (*2).
• Produces semi-fine atomization having no large droplets. When the mean droplet diameter is 80 μm, the maximum droplet diameter is 180 μm (*2) under air-water ratio of 250.
• Energy-saving for blower-use. Low running cost.
• Spray angle of 20ﾟ.
*2) Measured by Laser Doppler Method.
Applications
- Cooling: Gas, refractories
Industries where this nozzle is used
- Pollution control
