Ultra-compact, Low Flow Rate Flat Spray Nozzles
SCBIMV
High-performance pneumatic flat fan spray nozzles, a further miniaturized version of the compact fine fog flat spray nozzle CBIMV Series.
Specs
| Main Material | S303 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | Internal mixing inner air type |
| Spray Droplet Measuring Method | Laser Doppler Method |
| Fog Classification | Fine fog |
| Mean Droplet Diameter | 20–100 μm |
| Spray Capacity (Flow-rate) | 0.25–4.0 L/hr |
| Spray Angle | 45º, 80º, 110º *1 |
| Spray Width | 70–380 mm *2 |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) Spray angle measured at compressed air pressure of 0.3 MPa and liquid pressure of 0.1 MPa.
*2) Measured at spray distance of 100 mm from nozzle.
Note: Please refer to the catalog for detailed specifications including spray capacity (flow rate), mean droplet diameter, liquid and air inlet sizes.
Resources for Download
• Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 100 μm or less.**

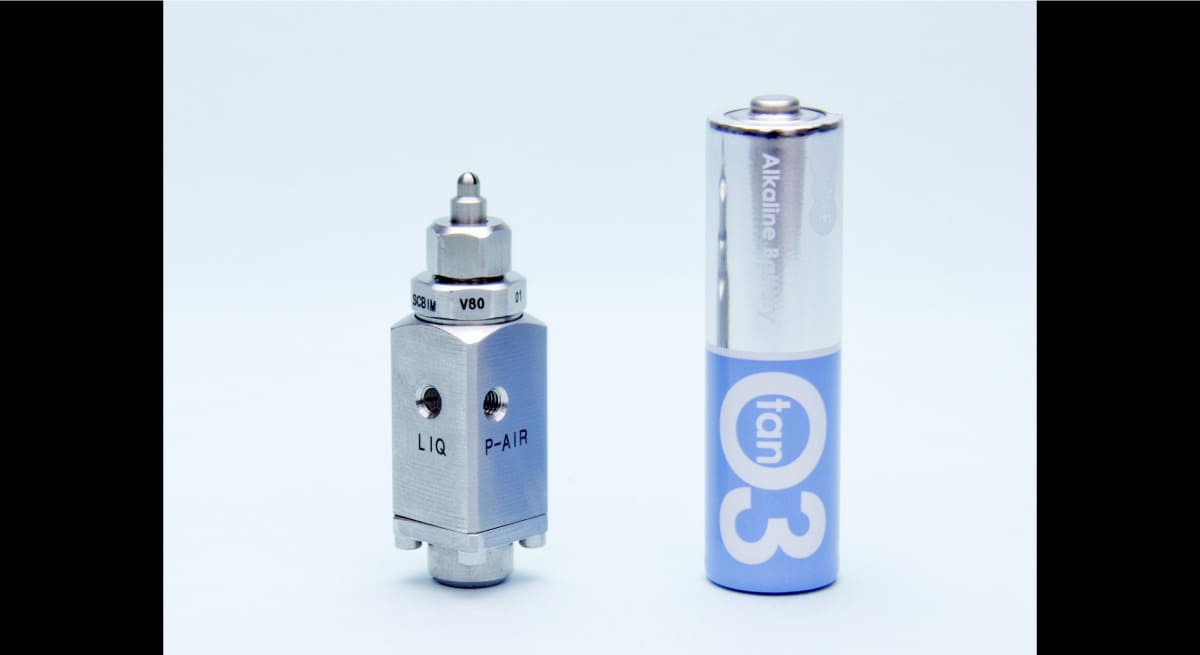

• Ultra-compact size. About 42 mm in total length including control adaptor.
• Features large turn-down ratio under liquid pressures of 0.1–0.3 MPa.

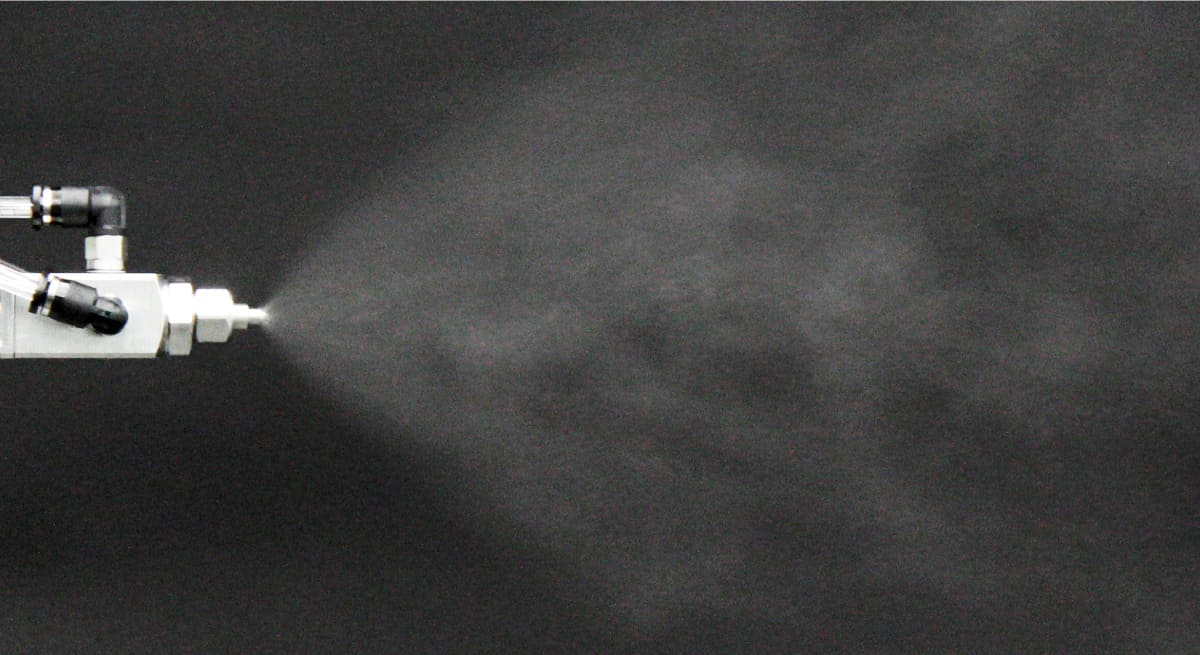

• Produces two different spray distributions: uniform spray distribution throughout spray pattern area (when spraying at a low air-water ratio), or a mountain-shaped distribution having gradually tapered edges (at a high air-water ratio).
• Spray angle of 110ﾟ, 80ﾟ, or 45ﾟ.*
• Capable of spraying smallest flow rate among all of our pneumatic spray nozzles.
• Spray ON/OFF can be regulated by switching the pilot air ON/OFF (adaptor type SP) or by turning compressed air ON/OFF (adaptor type SN).
*Spray angle measured at compressed air pressure of 0.3 MPa and liquid pressure of 0.1 MPa.
**Mean droplet diameter measured by Laser Doppler Method.
Applications
- Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, honey, insecticide, aqueous urea, etc.
- Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
- Moisture control: Paper, gas, ceramics, concrete, etc.
- Cleaning: Printed circuit boards, glass tubes, etc.
- Others: Dust suppression, catalyst denitration, etc.
Industries where this nozzle is used
- Steelmaking
- Electronics
- Paper & pulp
- Printing
- Food
- Automotives
Structure
- Four-part structure: Nozzle tip, core, cap, and adaptor. See the catalog for details of adaptors.
