Pulse Spray Nozzles
SETO-SD

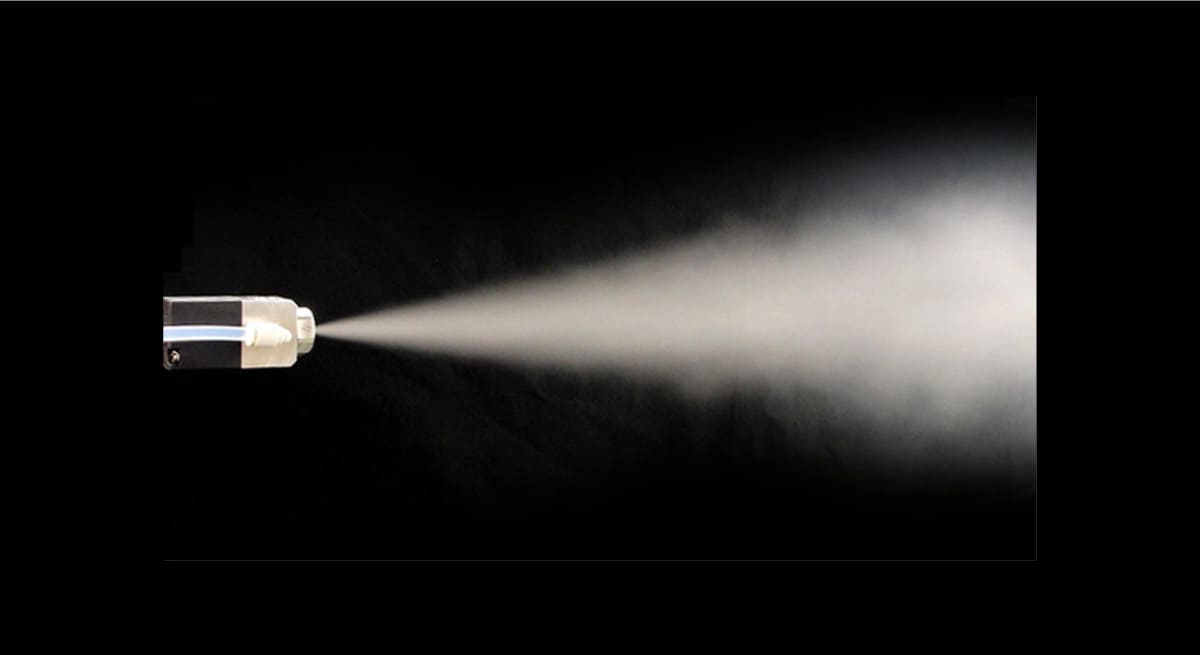

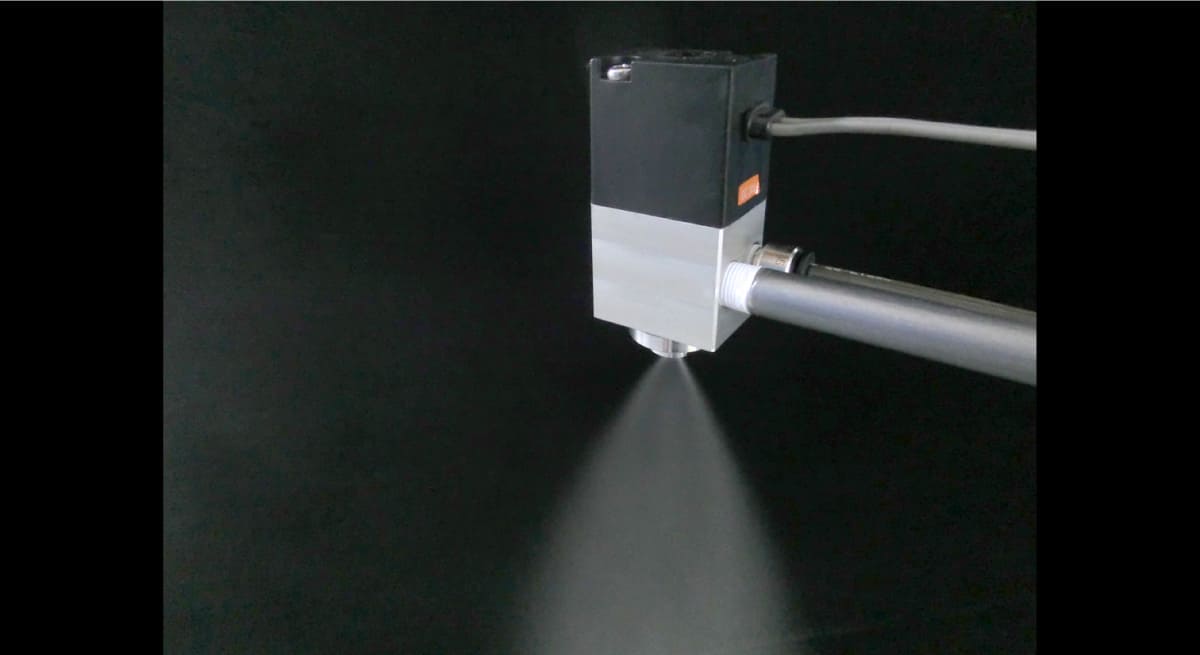

These nozzles, achieving intermittent pulse spray with a duration of 0.02 seconds per shot and delivering 0.006 cc per shot, are ideal for applying a small amount of coating agent, such as a protective agent. Additionally, they are compliant with IP65 and IP 67 (dust and water tight).
Specs
| Air Supply | Compressed air |
|---|---|
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | Internal mixing outer air type *1 |
| Spray Droplet Measuring Method | Laser Doppler Method |
| Fog Classification | Fine fog |
| Mean Droplet Diameter | 15–25 μm *2 |
| Spray Capacity (Flow-rate) | 0.9–26.4 L/hr |
| Spray Width | 40–50 mm *2 |
Fog Classification: Based on spray droplet size. Click here for details.
*1) SETO07503R-I+SD is an internal mixing outer air type (the other SETO-SD models are external mixing type).
*2) Please refer to the catalog for detailed specifications including spray capacity (flow rate), mean droplet diameter, liquid and air inlet sizes.
Resources for Download
• Full cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 15–25 μm (*3).
• Fast response performance by solenoid activation: intermittent pulse spray at 0.02 sec/shot with a minimum of 0.006 cc/shot is possible.
• Ideal for coating in small amounts, i.e. protective agent coating, etc.
• IP65, IP67 (dust-proof and water-proof) structure.
• Liquid siphon feed type (liquid pressure device is not required). Use with the liquid pressure device is also possible.
*3) Measured by Laser Doppler Method.
Applications
- Spraying release agent for metal molds
- Coating
- Mold cooling
- Seasoning (food)
- Uniform coating without dripping, etc.
Industries where this nozzle is used
- Food
- Automotives
