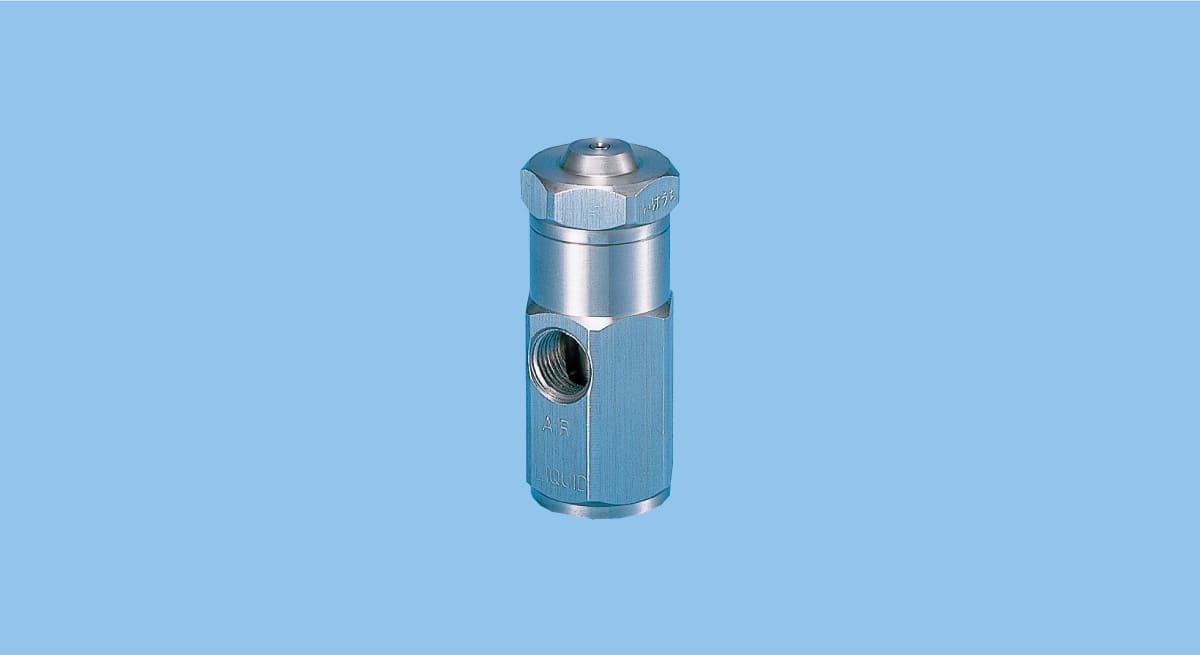

Full Cone Nozzles for Spraying Viscous Liquid
SETOJet

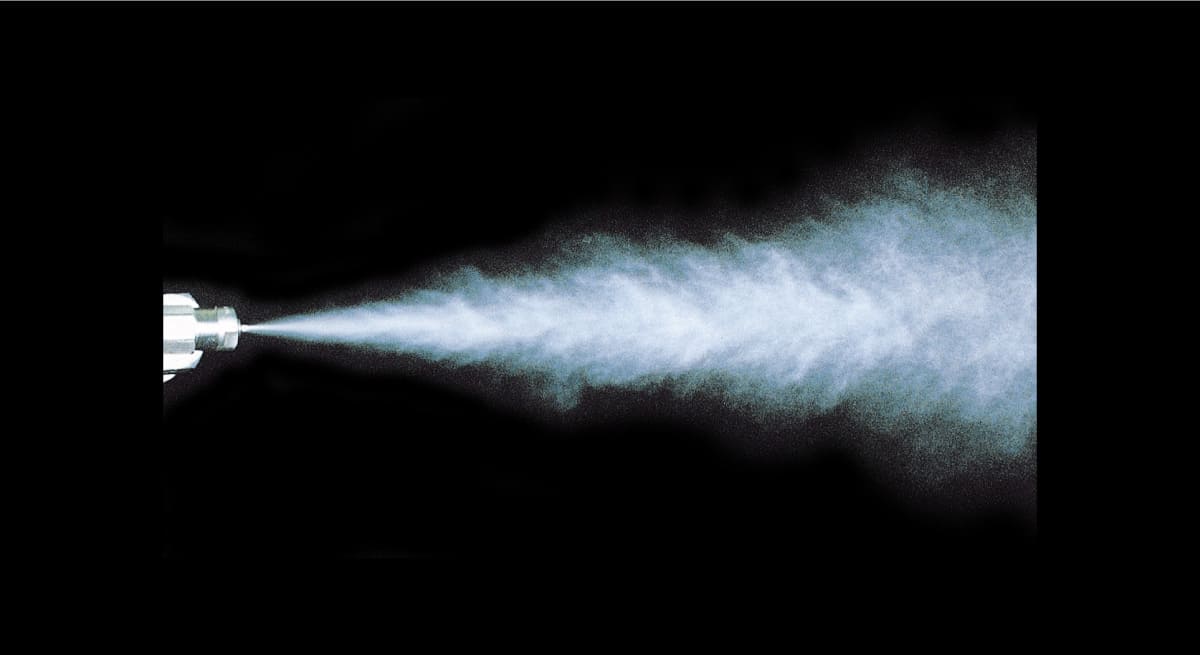

Pneumatic full cone spray nozzles, producing a fine fog with a mean droplet diameter of 60 μm or less. These nozzles are clog-resistant thanks to their external mixing type, which mixes air and liquid outside the nozzle.
Sister product includes SETOJet-R Series.
Specs
| Main Material | S303 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid pressure, Liquid siphon |
| Air-liquid Mixing System | External mixing |
| Spray Droplet Measuring Method | Laser Doppler Method |
| Fog Classification | Fine fog |
| Mean Droplet Diameter | 20–60 μm *1 |
| Spray Capacity (Flow-rate) | 2.0–111 L/hr *2 |
| Spray Width | 130–180 mm *1 |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) Measured at compressed air pressure of 0.3 MPa and liquid pressure of 0 MPa (siphon height of 100 mm).
*2) Measured at compressed air pressure of 0.3 MPa, liquid pressure of 0 MPa (siphon height of 100 mm) and 0.05 MPa.
Note: Please refer to the catalog for detailed specifications including spray capacity (flow rate), mean droplet diameter, liquid and air inlet sizes.
The catalog below includes SETOJet-R and SETOJet-PTFE Series.
Resources for Download
• Full cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 60 μm or less (*3).
• Clog-resistant design. Optimal for spraying viscous liquids.
• Liquid siphon feed type (liquid pressure device is not required). Use with the liquid pressure device is also possible.
*3) Measured by Laser Doppler Method.
Applications
- Spraying: Mold release agent, deodorant, oil, surface treatment agent, rust preventive, lubricant, chocolate, honey, glaze, insecticide, aqueous urea, slurry, other viscous liquid
Industries where this nozzle is used
- Pollution Control
- Electronics
- Food
