Automatic Nozzle Lifting Unit

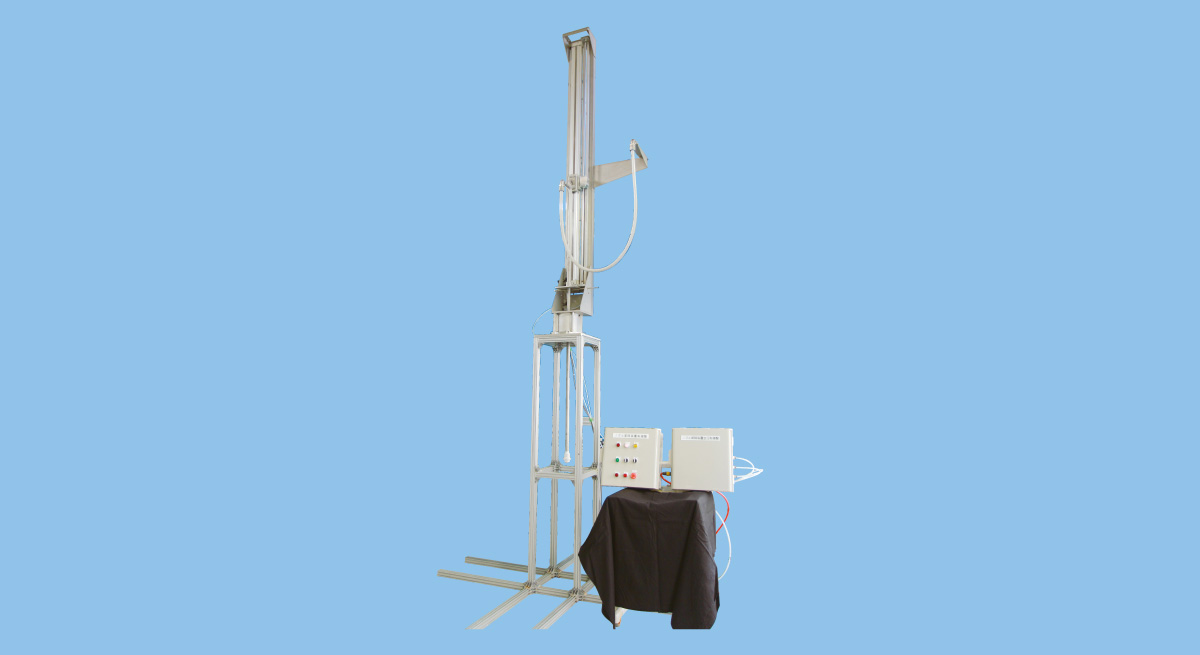

NLD (Automatic Nozzle Lifting Unit)
A unit that automatically lifts a tank cleaning nozzle up and down inside a deep tank.
The maximum stroke is approximately 1.7 m; the unit comprises a lifting device, a control panel, a tank cleaning nozzle, a pneumatic control panel, accessories such as air tubes and wires, and an isolation valve (optional).
Specs
| Weight | 90kg *1 |
|---|---|
| Main Material | Liquid contact parts: S304, fluorocarbon resin |
| Max. Temperature | 5–50℃ |
| Power Consumption | 40W |
| Operating Pressure for Liquid | 0.05–1.0 MPa *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Approximate weight, based on a flange of 100A and cylinder stroke of 1,700 mm. Contact us for other available sizes.
*2) 0.3–0.7 MPa for compressed air
For more details, please refer to the catalog and contact us.
Resources for Download
• Lifting device able to move up and down a spray nozzle attached on the tip with compressed air.
• The maximum stroke of about 1.7 m allows for cleaning tall tanks.
Applications
- For cleaning tall tanks
- For saving labor and reducing time for cleaning
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food & beverages
- Medical

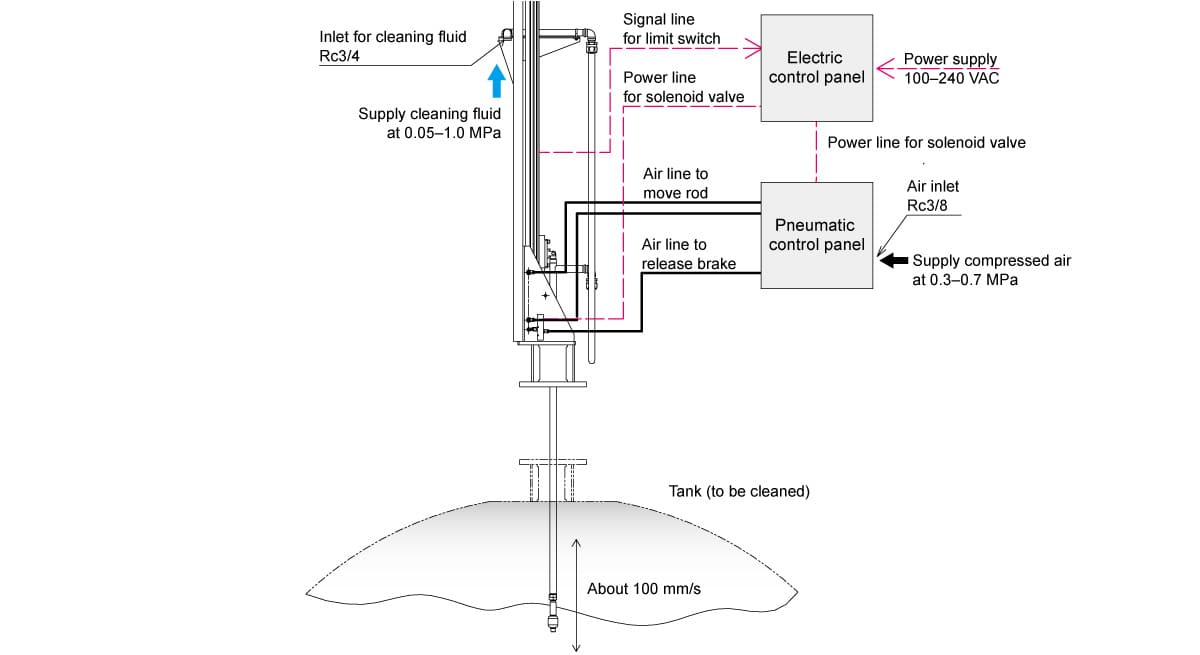

Structure
- This system has the following components: Lifting device, Electric control panel, Spray nozzle (ES or SR series), Pneumatic control panel, Accessories (tubing), Isolation valve (optional)
- Contact us for more details.
