3D Rotational Tank Cleaning Nozzles RJ (ROTARY JETTER)
ROTARY JETTER Series: tank cleaning nozzles with three-dimensio…
- Made-to-Order
- 360º
- ROTARY JETTER
- Cleaning
3D Rotational Tank Cleaning Nozzles

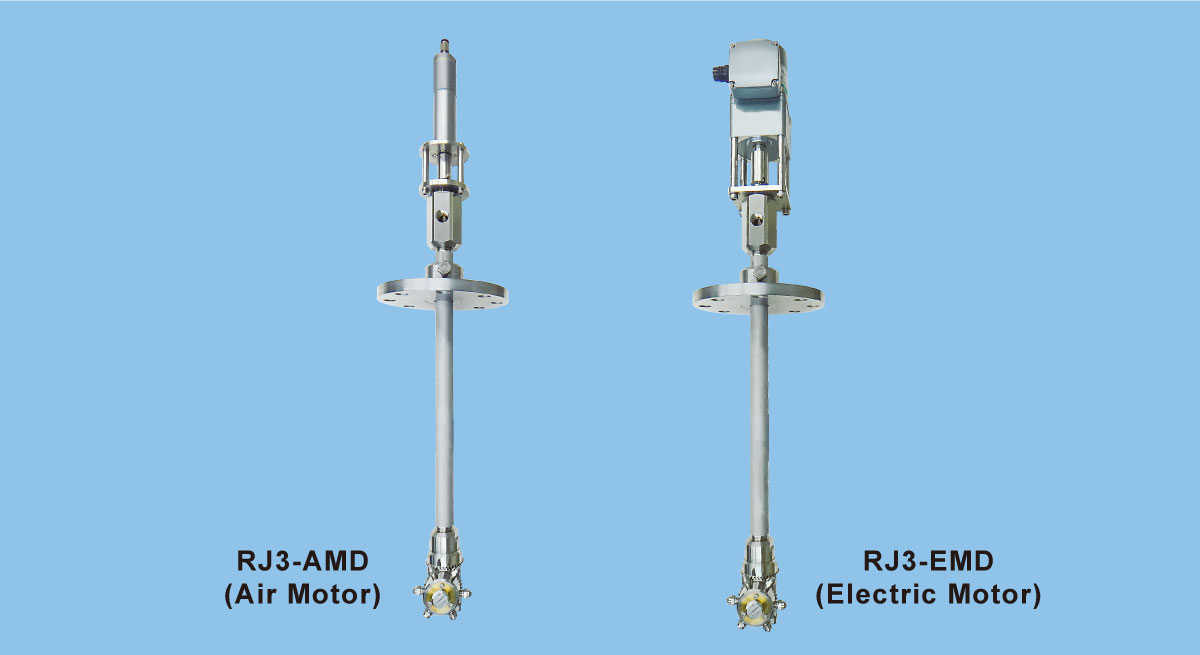

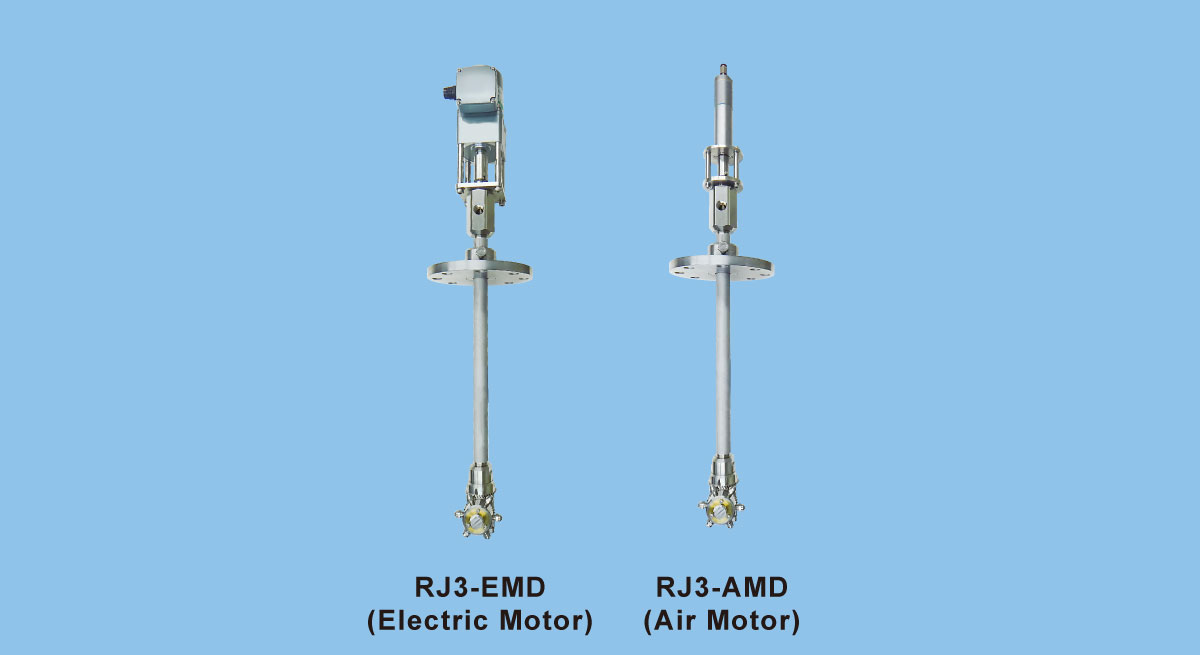

RJ3-MD (with Air or Electric Motor)
Motorized tank cleaning nozzles with three-dimensional rotation capable of 360-degree cleaning.
With stable low-speed rotation driven by an air or electric motor, they maintain directional stability and exert strong cleaning power, and can be used at relatively high temperatures.
Specs
| Liquid Inlet Thread Size | Rc1/2 |
|---|---|
| Weight | RJ3-AMD: 14–19 kg, RJ3-EMD: 11–16 kg *1 |
| Main Material | S304, SCS14, ABB2 + bronze alloy, UPE (seal), FKM (O-ring) |
| Max. Temperature | 80℃ |
| Reach Distance of Spray | Approx. 1.5–2.5m (RADIUS) *2 |
| Number of Nozzles Attached | 2, 3, or 6 |
| Operating Pressure for Liquid | 0.3–15 MPa |
| Spray Capacity (Flow-rate) | 4.2–103.7 L/min *3 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Without flange.
*2) Spray reach distance varies depending on the number of nozzles attached and the nozzle orifice diameter. Contact us for details.
*3) Spray flow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
• 2 nozzles: 4.2–80.3 L/min
• 3 nozzles: 6.3–98.0 L/min
• 6 nozzles: 6.4–103.7 L/min
Power Voltage of RJ3-EMD (electric motor): 100 VAC
Power Consumption of RJ3-EMD (electric motor): 40 W
Resources for Download
• 3D rotation solid stream jet powerfully cleans the inside of a tank.
• Stable low-speed rotation with motor maximizes contact time between cleaning surface and cleaning liquid for effective cleaning.
• Models come with two, three, or six nozzles for precision cleaning.
• Heat-resistant up to 80 deg. C (176 deg. F).
• Immediate use and stable rotation anywhere a power supply is available. No adjustment required.
Applications
- Removing tough, sticky and stubborn dirt
- Cleaning of reactor vessels in chemical plants
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
