Insert HEADER

The Insert HEADER is a design-conscious mist header that blends naturally into the landscape.

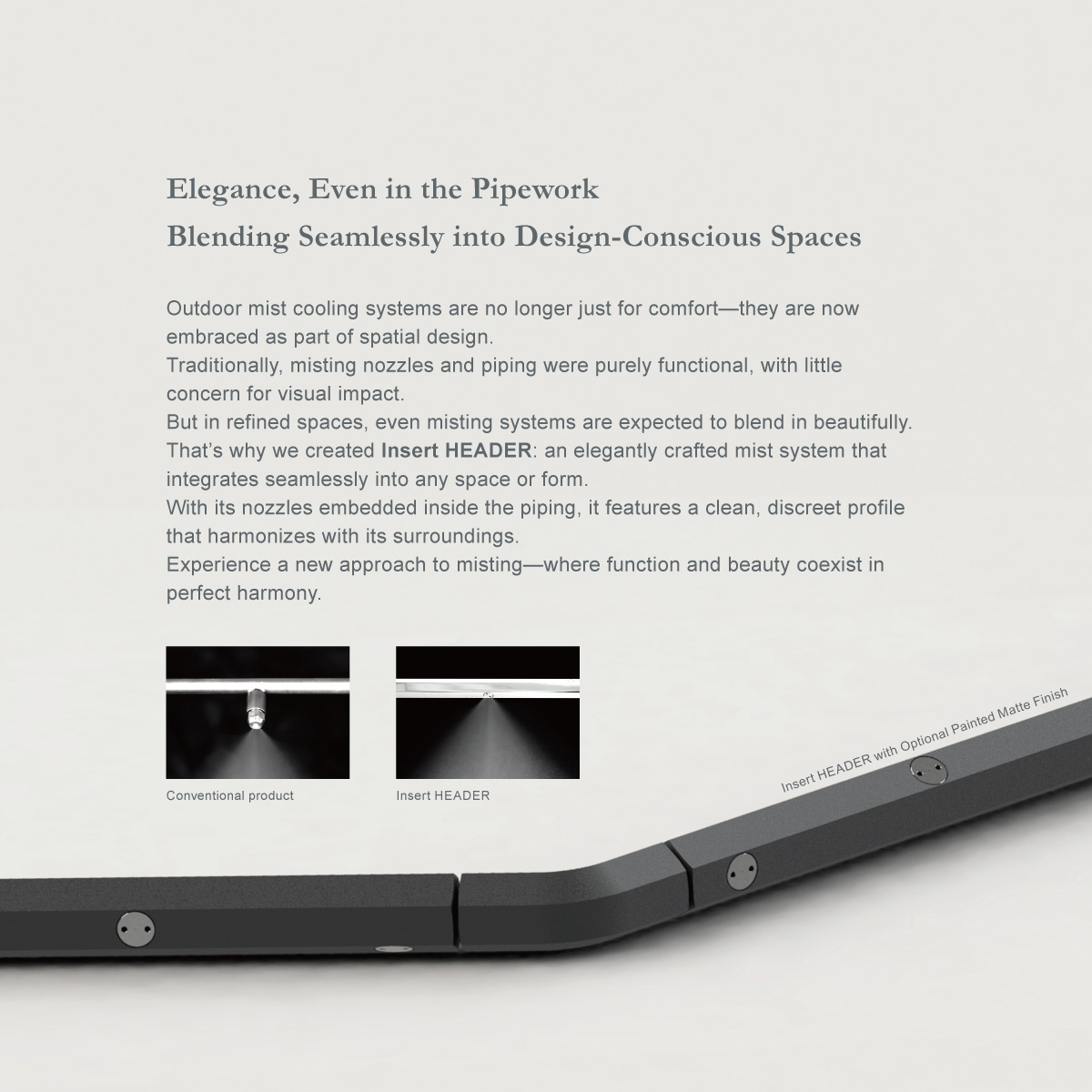

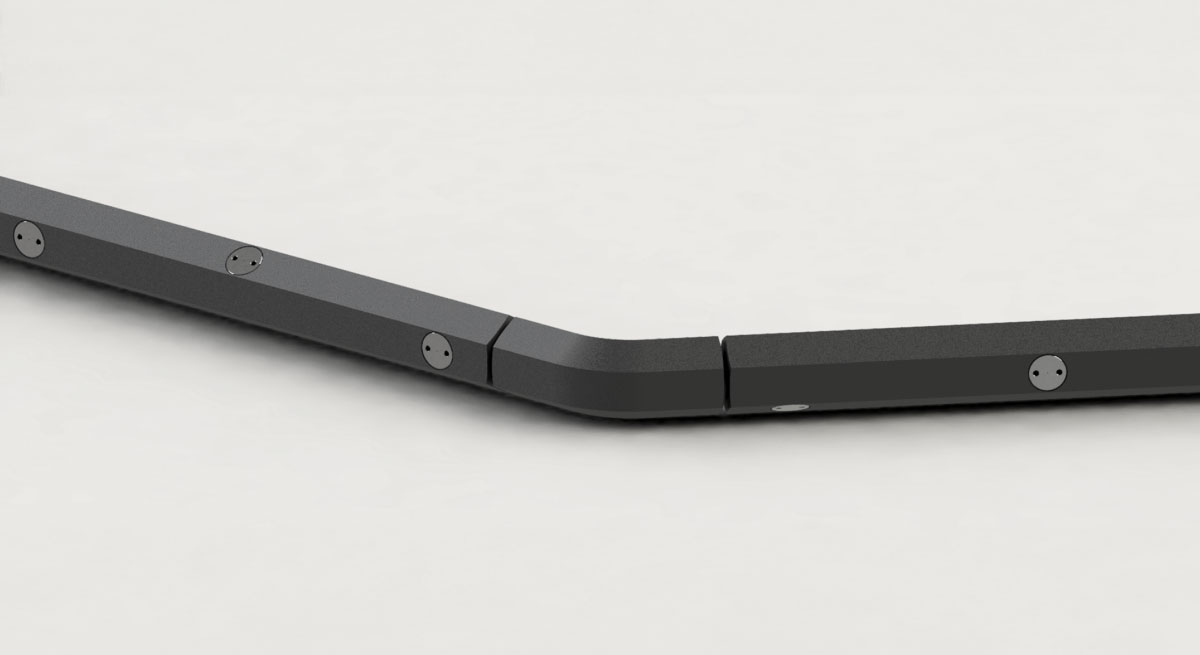

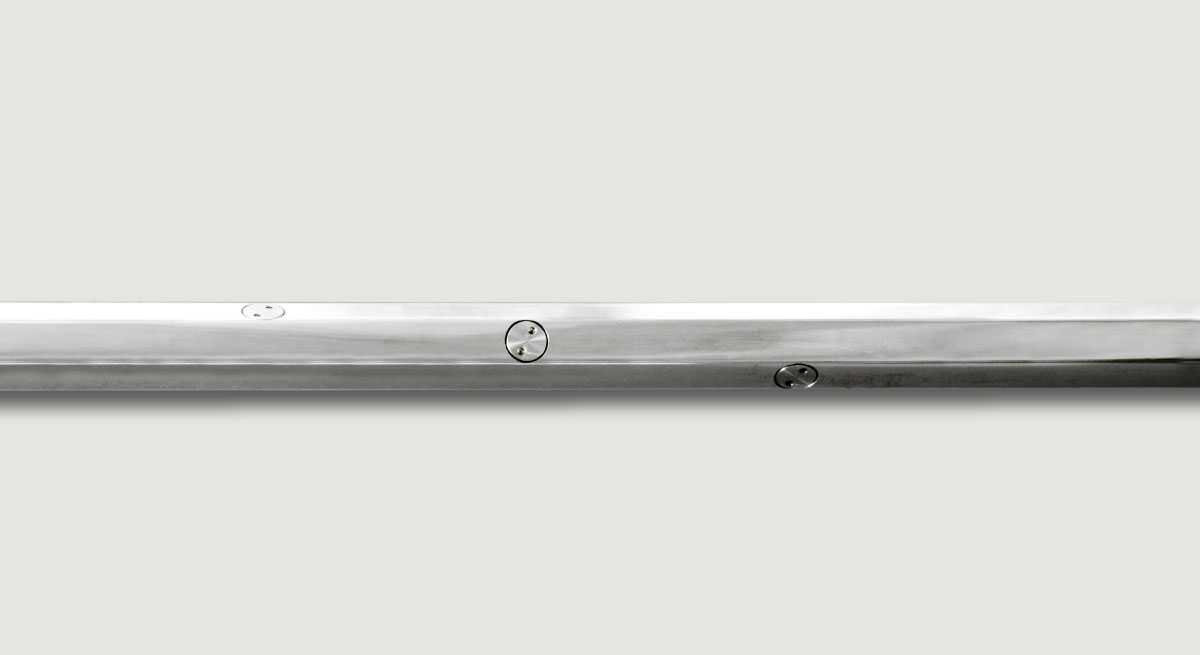

By embedding the nozzles inside the piping, it eliminates protrusions and achieves a sleek, flush profile that remains discreet.

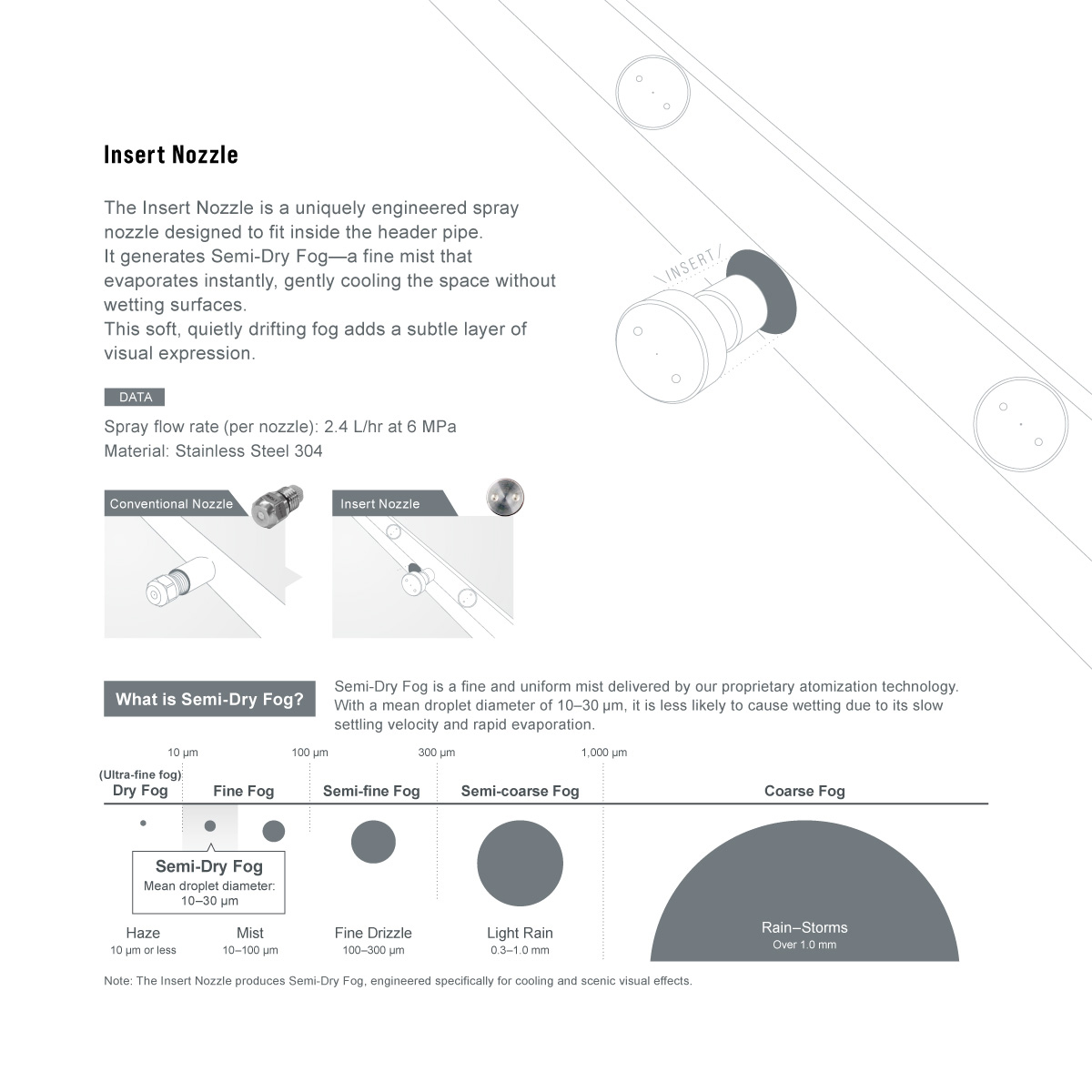

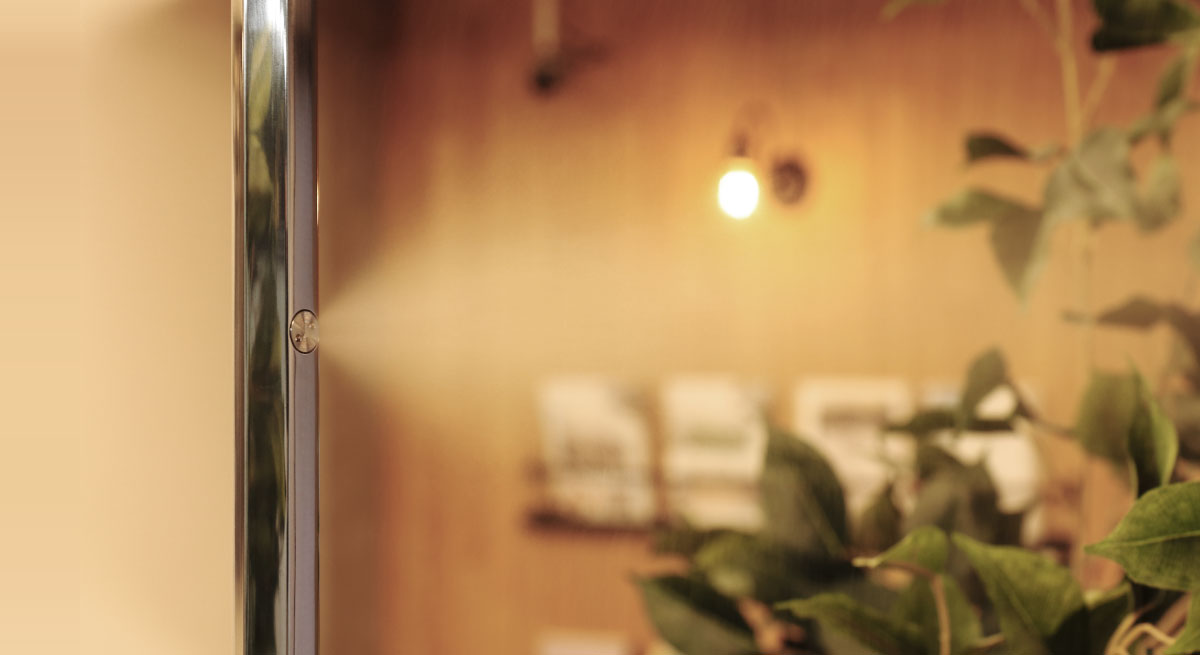

Its nozzles produce Semi-Dry Fog with a mean droplet diameter of 10–30 µm, enabling dense mist with minimal wetting—delivering cooling comfort and a refined visual effect.

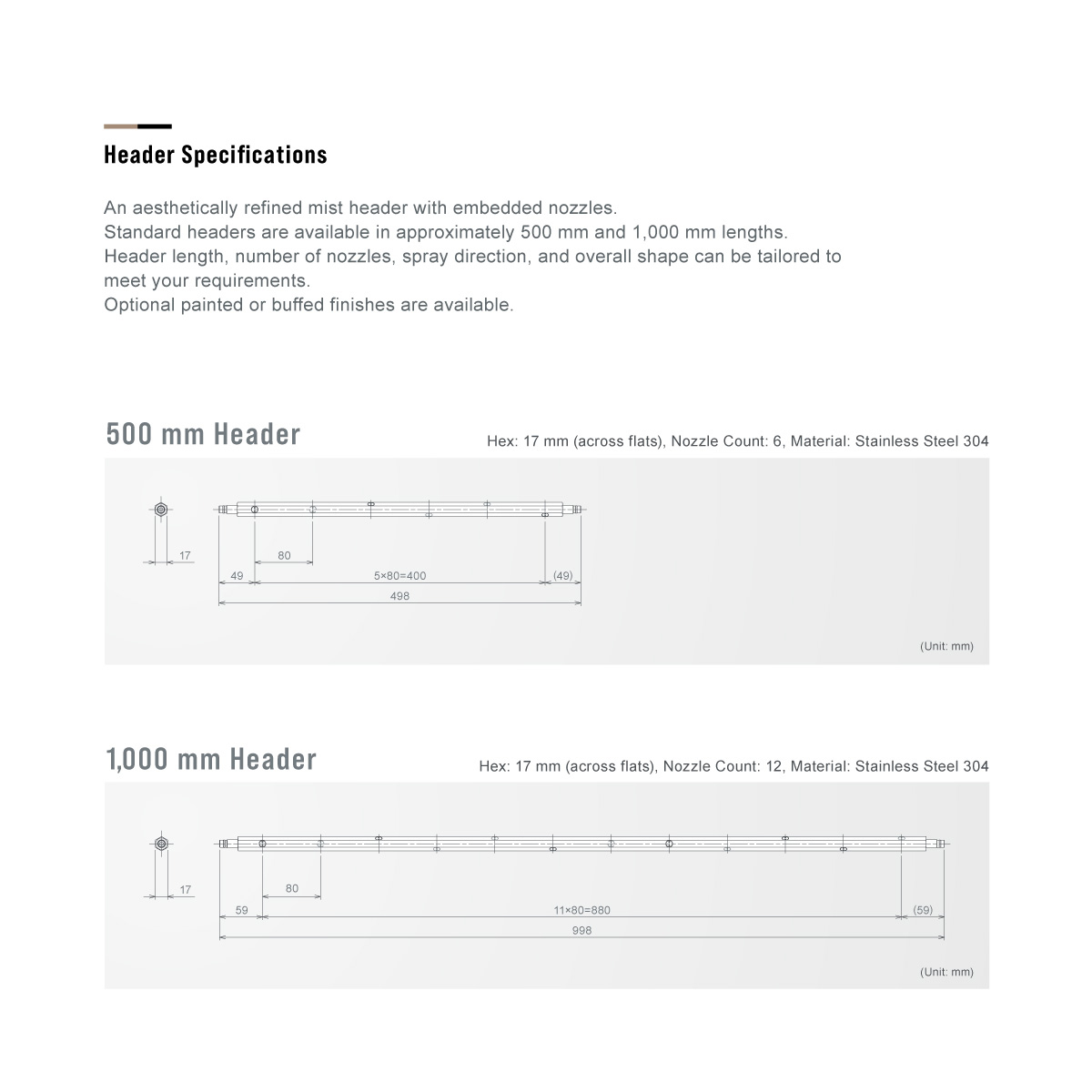

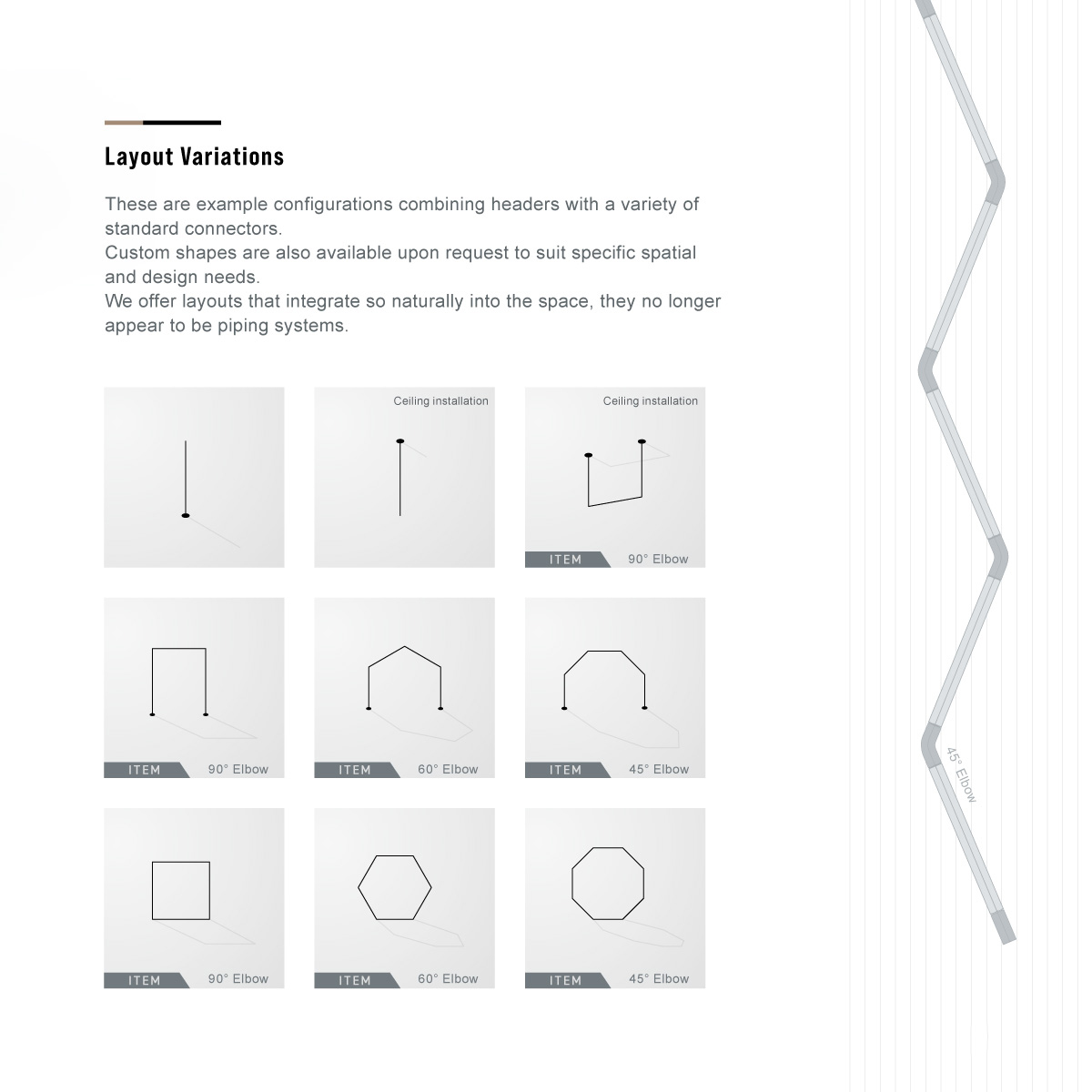

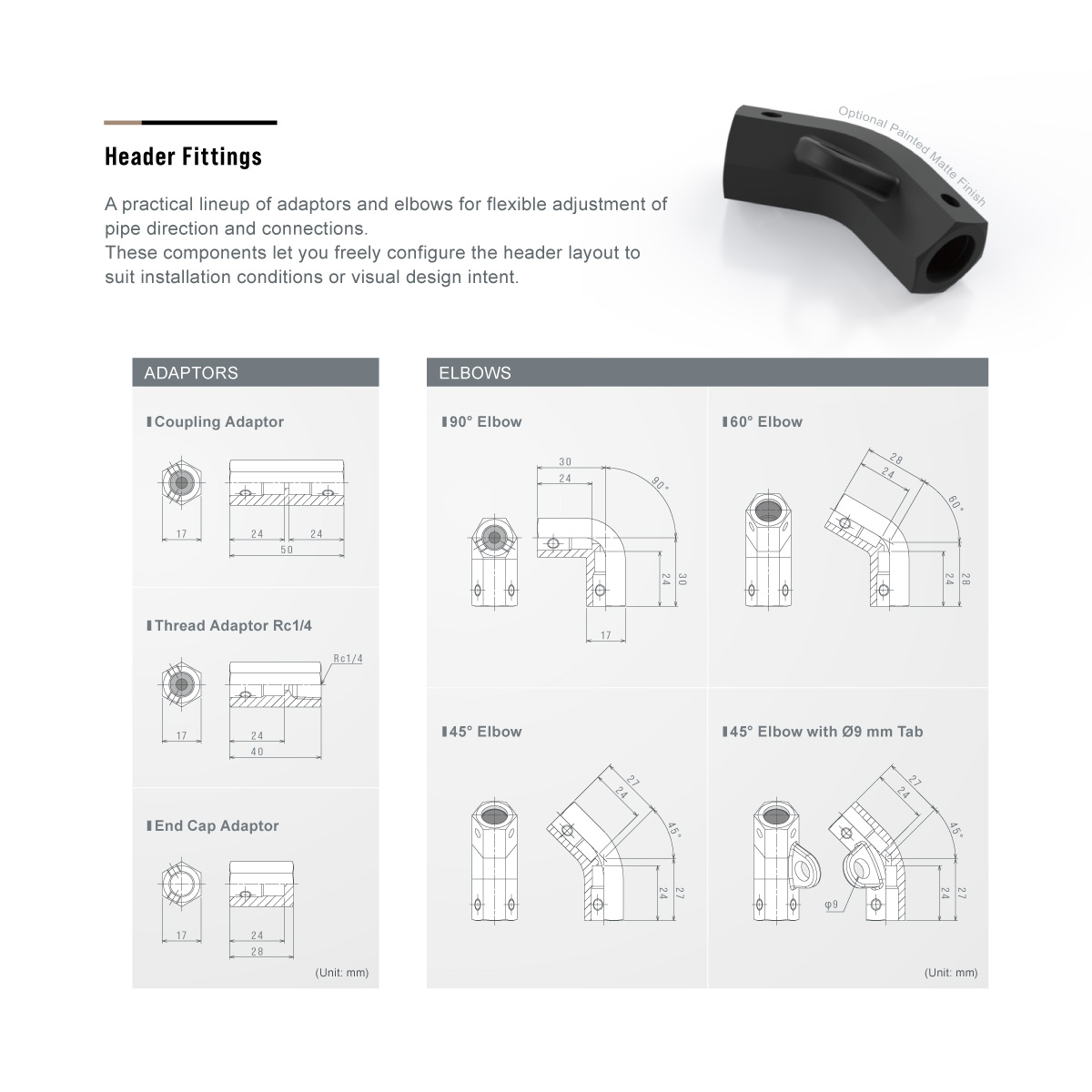

Layouts can be tailored to the site and design intent by selecting header length, nozzle count, spray direction, and fittings such as adapters and elbows.

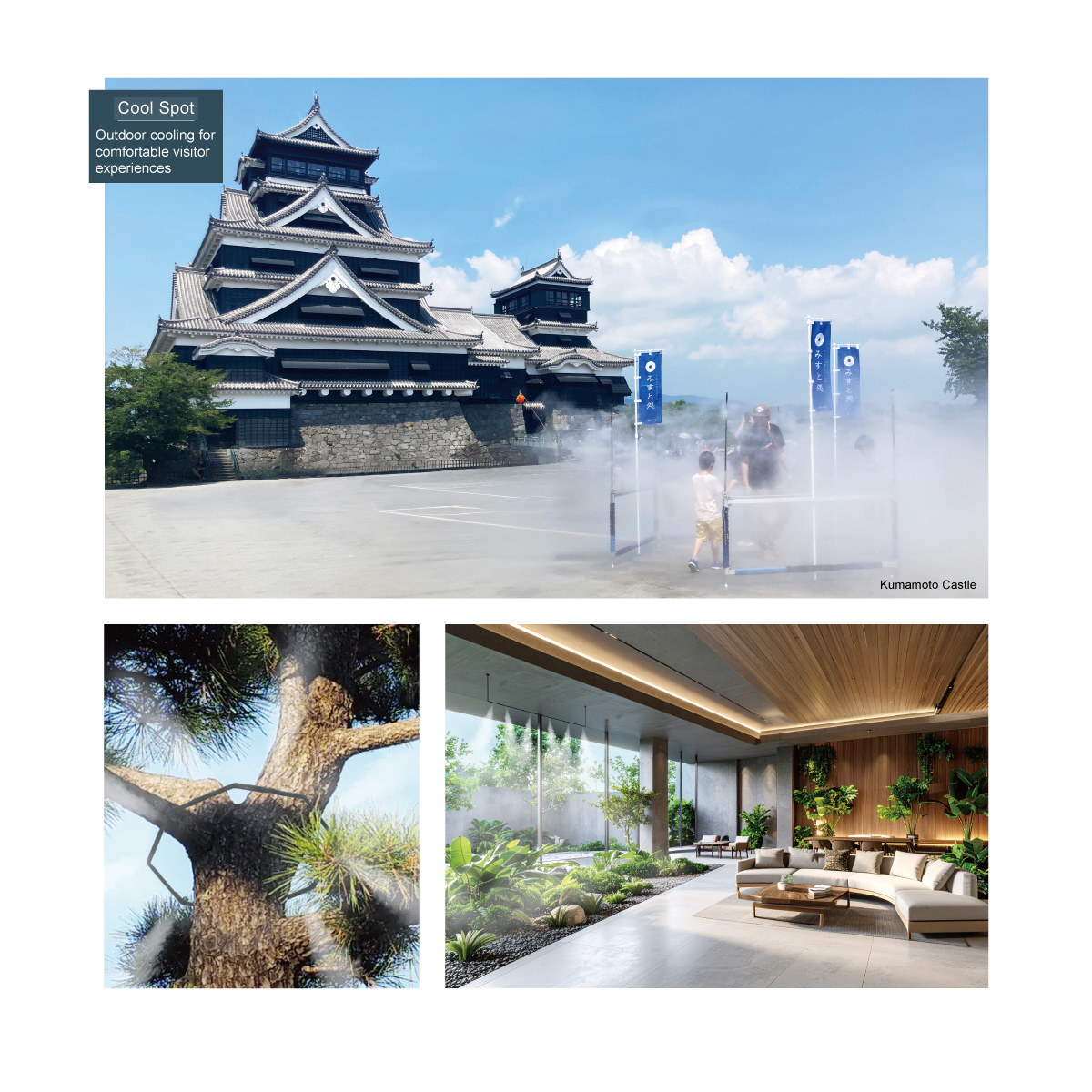

We also offer the LHOYM system and the “Sea of Clouds” system for outdoor cooling and dramatic landscape effects. For custom solutions, please contact us.
