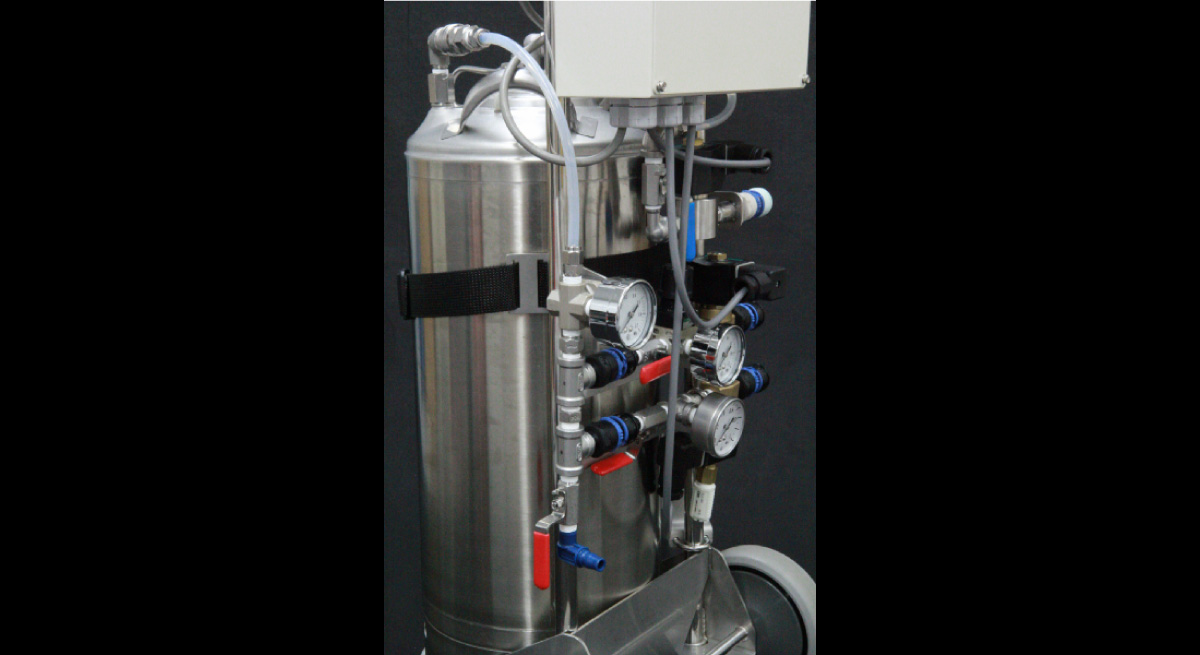

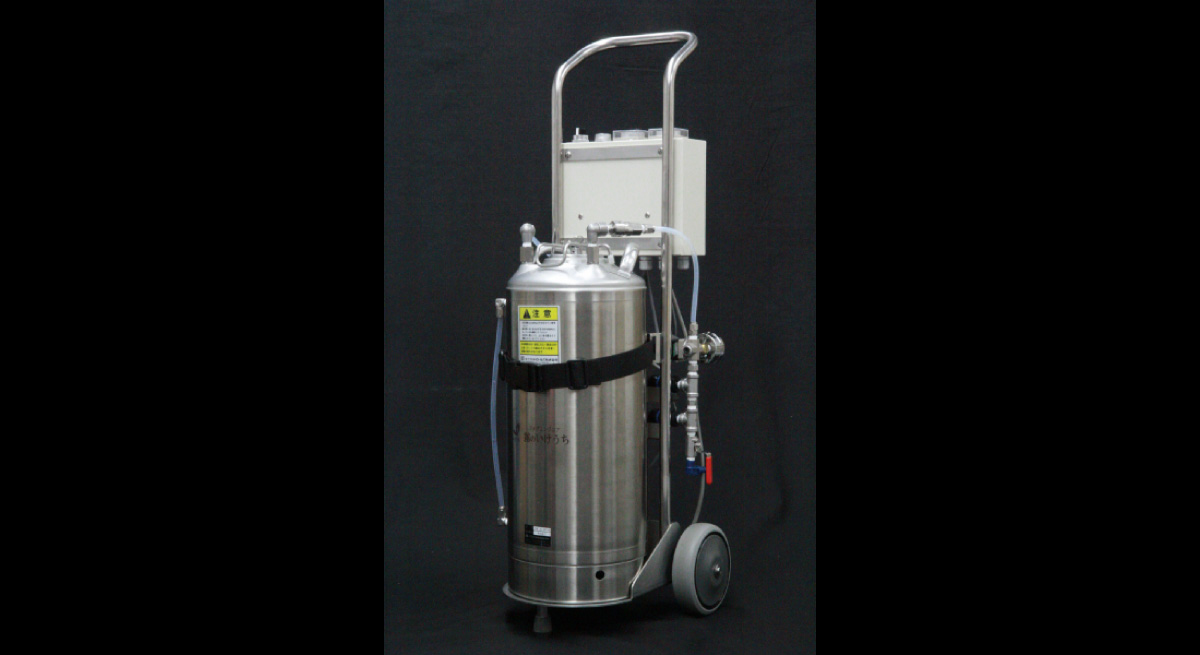

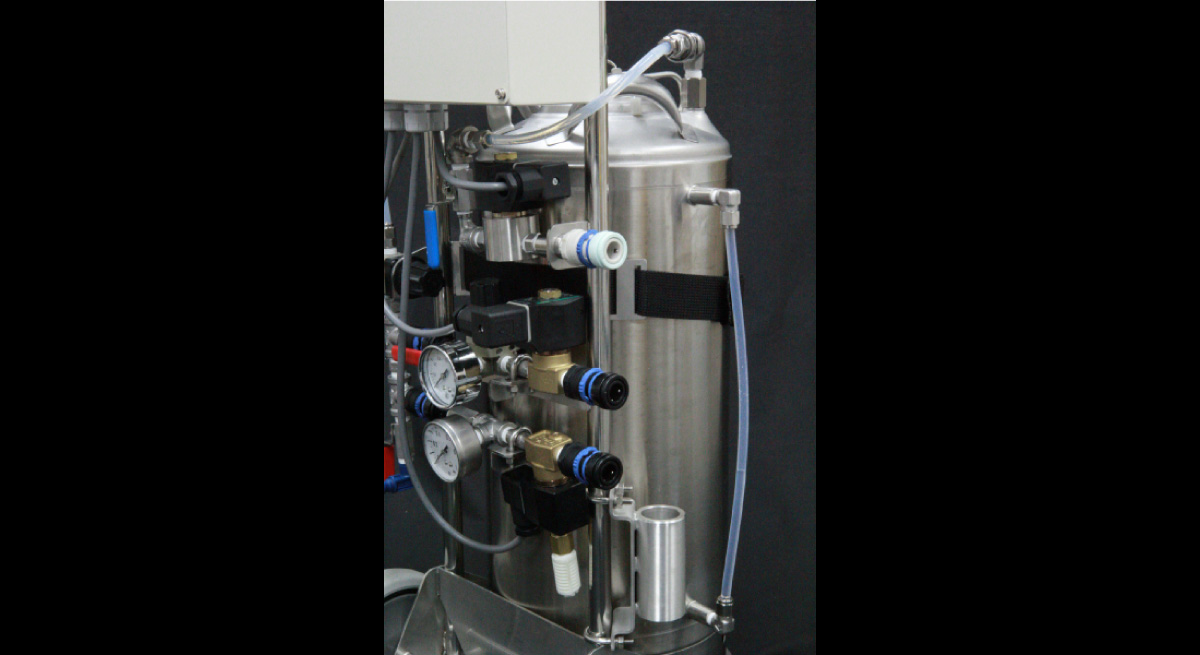

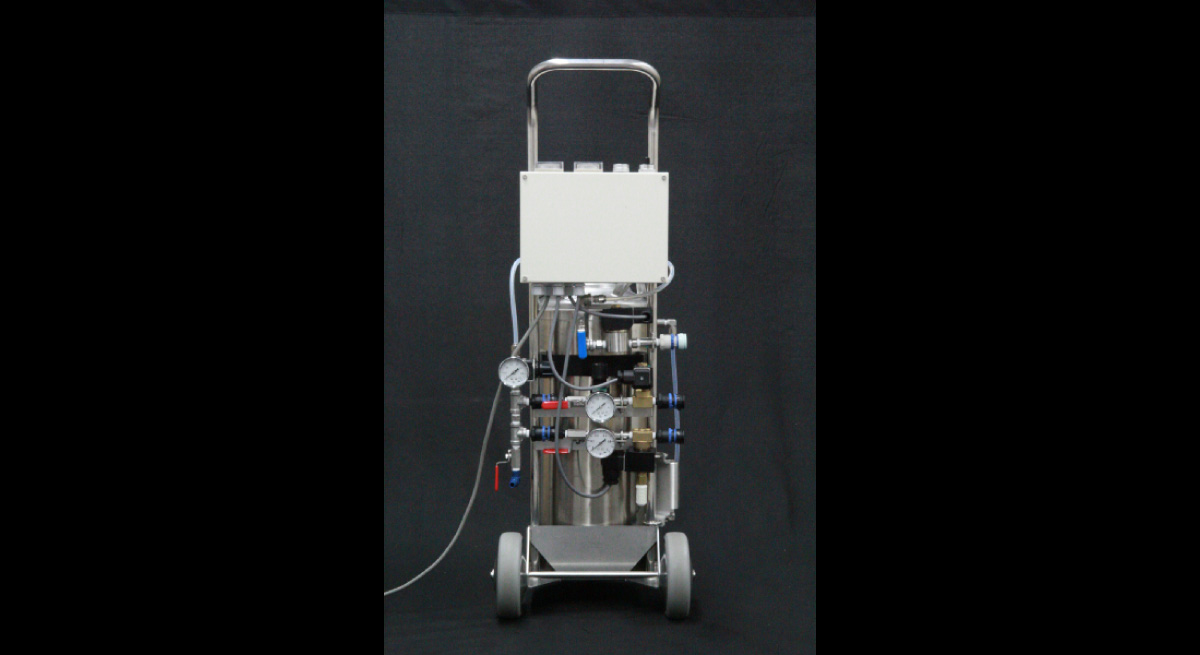

FC Series (Portable Spray Controller)

A portable spray control unit capable of controlling spray on-off by adjusting liquid pressure, air pressure, and pilot air during spraying.
Spraying only requires compressed air and a power supply, eliminating the need for complex plumbing or preparatory work for controlled operation.

HOME
Products
Portable Spray Control Unit FC Series (Portable Spray Controller)

Specs

Weight	17 kg
Main Material	S304
Air Supply	Compressed air
Power Consumption	21W (50Hz), 18 W (60Hz) *1
Spray Capacity (Flow-rate)	8 L/min (Max)
Air Consumption	350 NL/min (Max)

*1) Power consumption for FC-2SN-C. For other models, please contact us.
Note: Specifications vary depending on the model number of this product. For details, please contact us.

Model No. | Recommended nozzles | Features
FC-2SP-C | Pneumatic spray nozzle BIM series with SPB type adaptor etc. | Highly responsive intermittent spraying is possible via pilot air on/off control.
FC-2SN-C | Pneumatic spray nozzle BIM series with SNB type adaptor etc. | Intermittent spraying is possible via compressed air on/off control.
FC-2NT-C | Pneumatic spray nozzle BIM series with N, T, or NDB type adaptor etc. | Pressure regulation and ON-OFF control are possible for both liquid and air.
FC-1SO-C | Hydraulic spray nozzles SO series | Highly responsive intermittent spraying is possible via pilot air on/off control.
