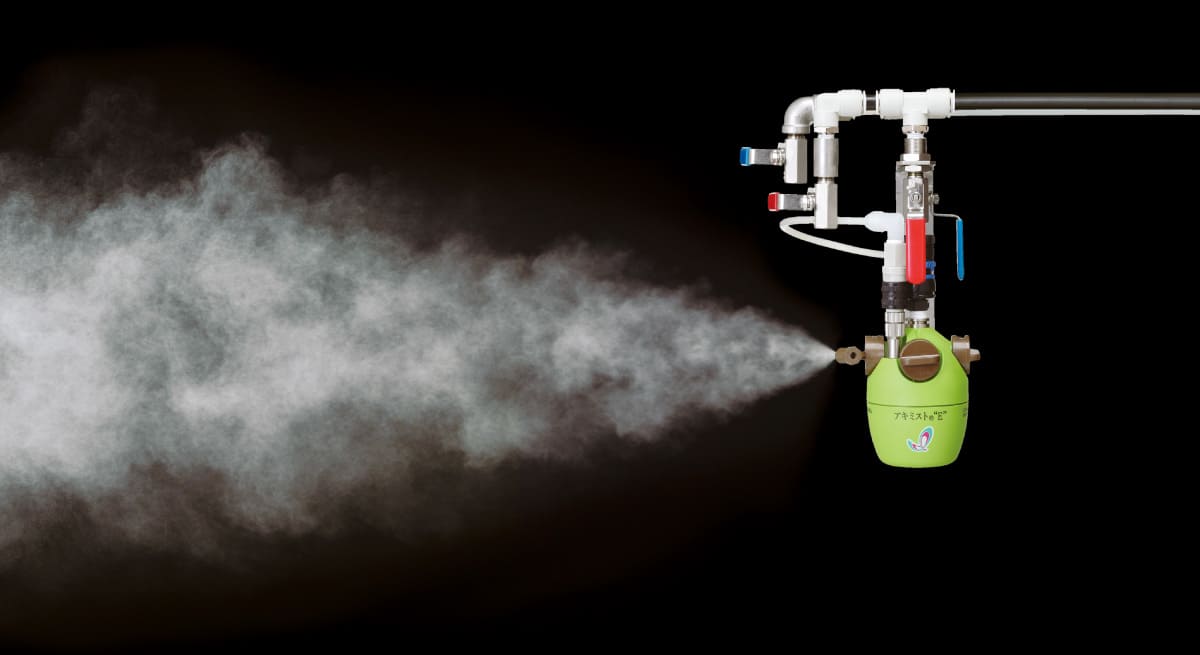

Dry Fog Humidifier AKIMist "E"
An energy-saving pneumatic humidifier producing non-wetting "Dr…
- Dry Fog
- Pneumatic Humidification
- Humidification
- Moisture Condioning
- Preventing Static Electricity

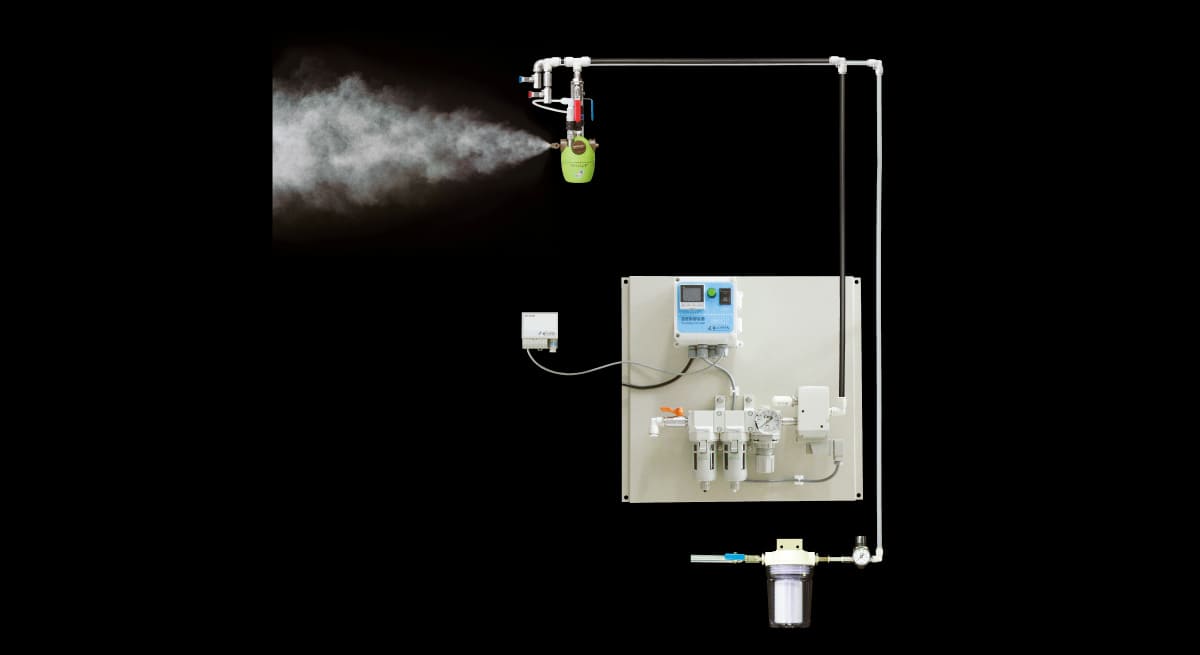

DIY Dry Fog Humidifier Kit
AE-KIT
A humidifier kit, incorporating AKIMist-E Dry Fog humidifier, a controller unit, a water filter unit, and a piping unit.
No piping work is required for installing Dry Fog Humidifier. All necessary hoses for connection to an air line or water tap are included, allowing for DIY installation (wall mounting) and operation.
Specs
| Mean Droplet Diameter | 7.5 μm *1 |
|---|---|
| Spray Capacity (Flow-rate) | 2.4–19.2 L/hr at 0.3 MPa*3 |
| Air Consumption | 29–232 L/min, Normal at 0.3 MPa*2 |
*1) Sauter mean droplet diameter of AKIMist “E” with nozzle type 03C at a compressed air pressure of 0.3 MPa.
*2) Air consumption varies with the number of nozzles mounted on AKIMist "E" and air pressure.
*3) Spray capacity (flow rate) varies with the number of nozzles mounted on AKIMist "E" and air pressure.
Refer to AE-KIT Inquiry Sheet for details.
Resources for Download
• Energy-saving pneumatic humidifier kit that produces “Dry Fog”.
• No professional installation is required; DIY wall-mount installation and operation are possible.
Applications
- Installation in areas where humidification is required
- Adding humidity on site without large-scale piping work by professional contractors
Structure

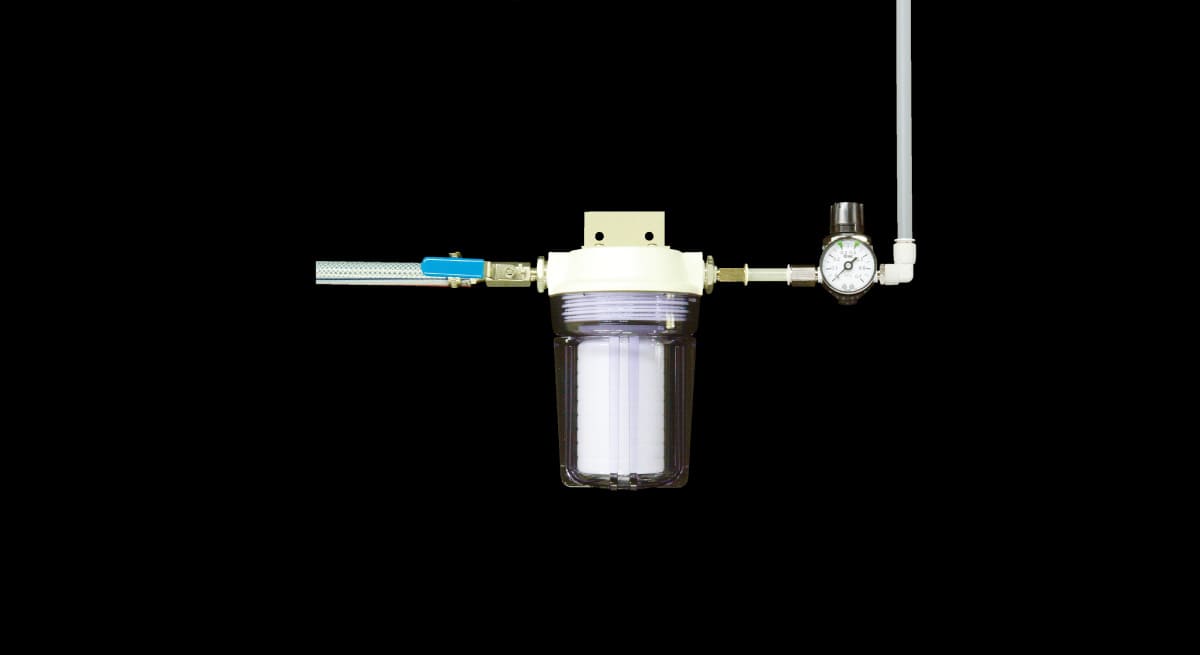

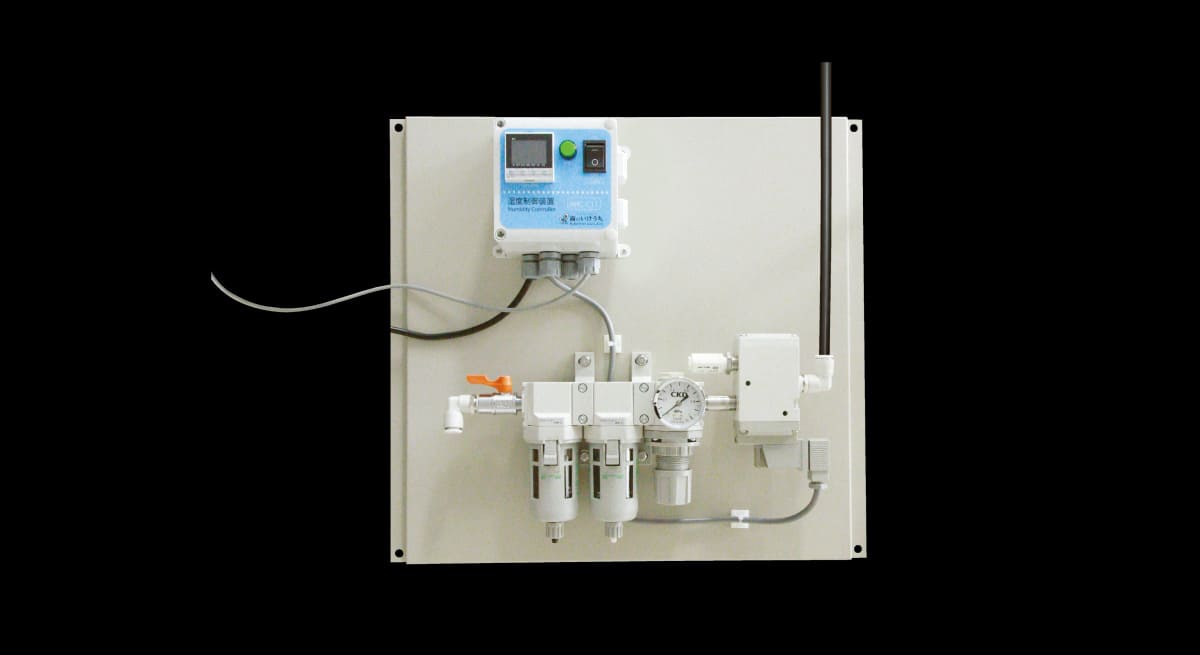

- Consists of a Nozzle Unit (AKIMist® “E” Dry Fog humidifiers), Control Unit, Water Filter Unit, and Piping Unit.
- The total number of nozzles must be eight or fewer. Refer to the AE-KIT Inquiry Sheet for details.
