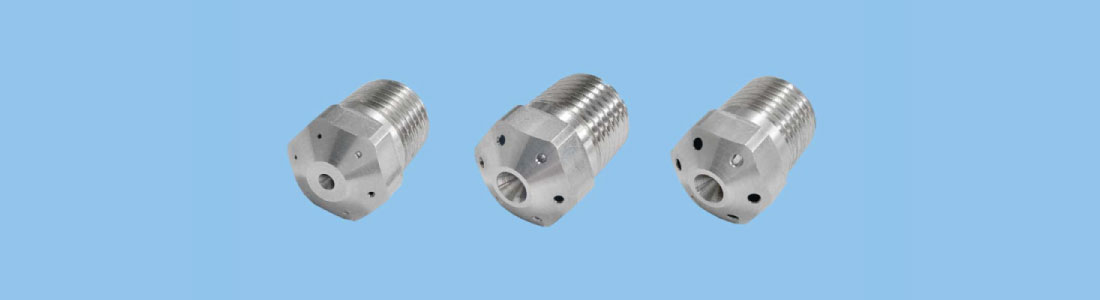

IKEUCHI is pleased to announce the launch of its new air nozzle, the JAN Series, which produces a full cone air blow pattern. The product is now available for purchase starting February 7, 2025.

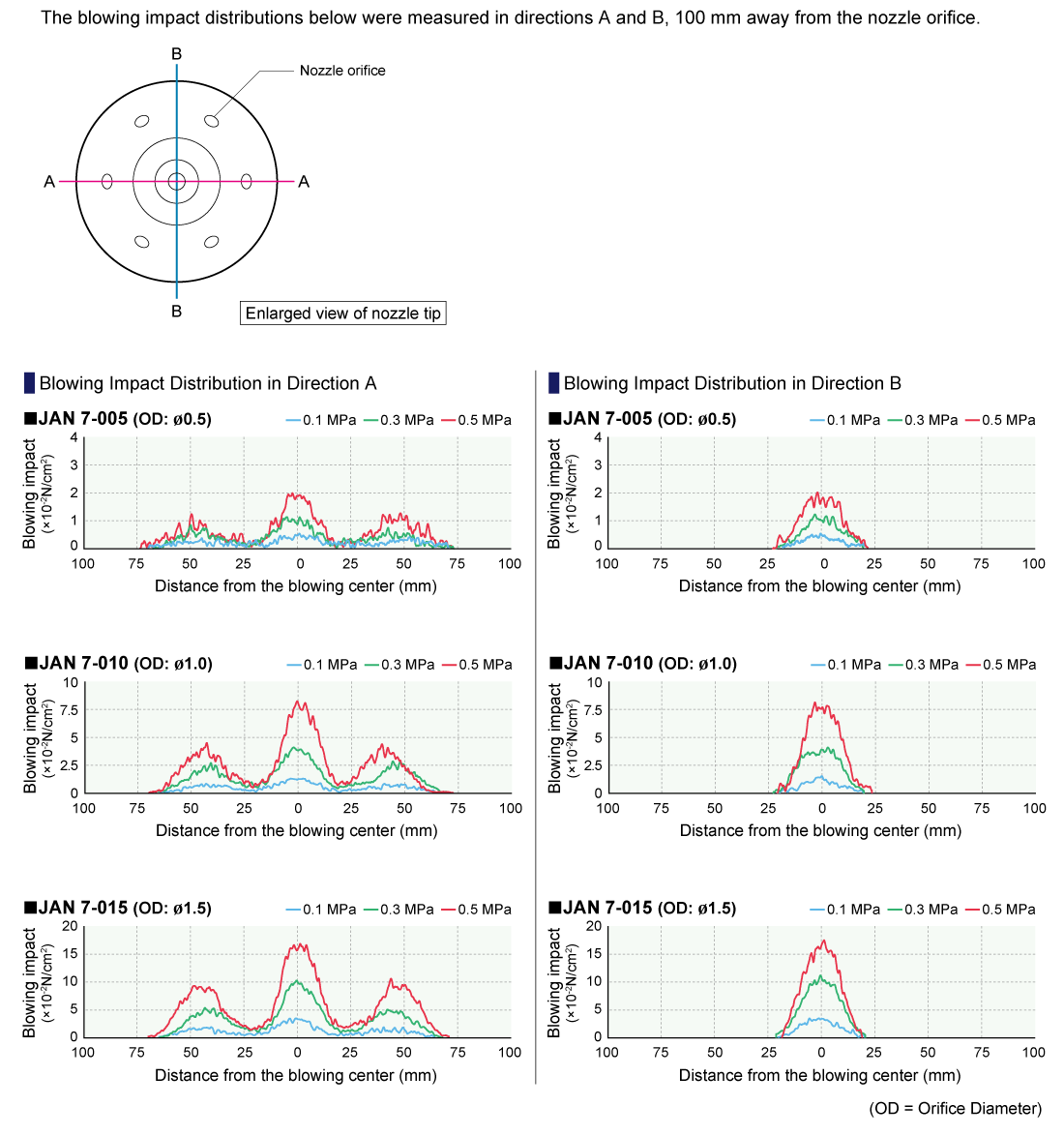

Our new air nozzle, JAN, produces a wide full-cone blow pattern by emitting air through 7 holes at the center and periphery, covering an area of 125 to 140 mm (at 0.1 MPa to 0.5 MPa). Its compact design, with a length of only 20 mm, makes it ideal for installation in various types of equipment, even in tight spaces.

The JAN is available in three orifice diameters of 0.5, 1.0, and 1.5 mm, and is suitable for applications such as air cooling, gas purging, and air blowing over circular workpieces.

Main specifications are as follows:
Blowing width: 135 mm (at 0.3 MPa)

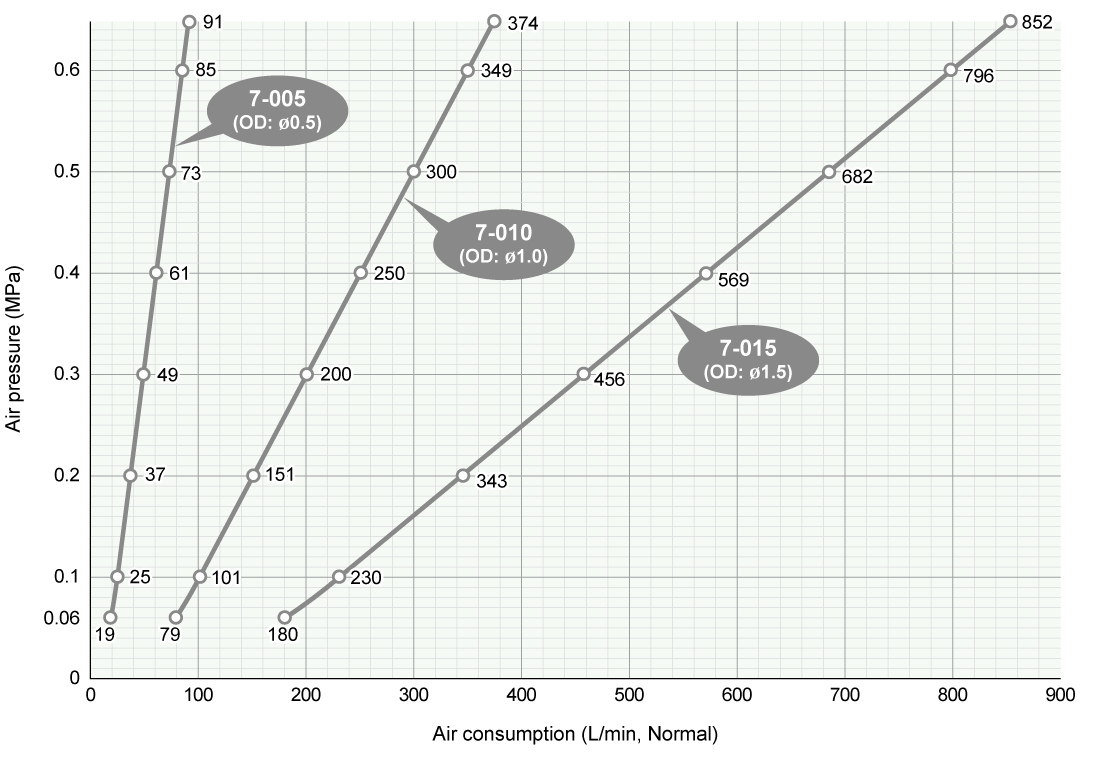

Air consumption: 49 to 456 L/min (at 0.3 MPa)
Noise level: 57 to 82 dBA (at 0.3 MPa)
Material: Stainless Steel 303
Thread size: R1/4
Weight: 13 g
Max operating pressure: 1.0 MPa
Max temperature: 400°C
Powered by compressed air.

Please feel free to contact us for any inquiries or questions.
