Wide Coverage Full Cone Jet Air Nozzles
JAN

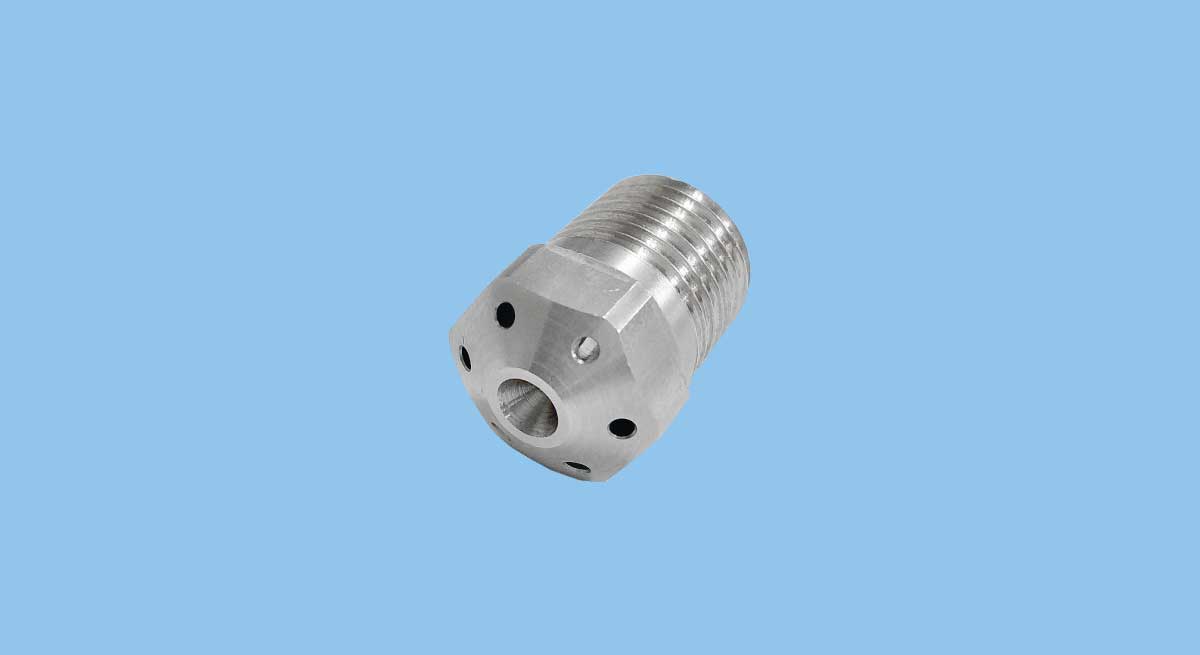

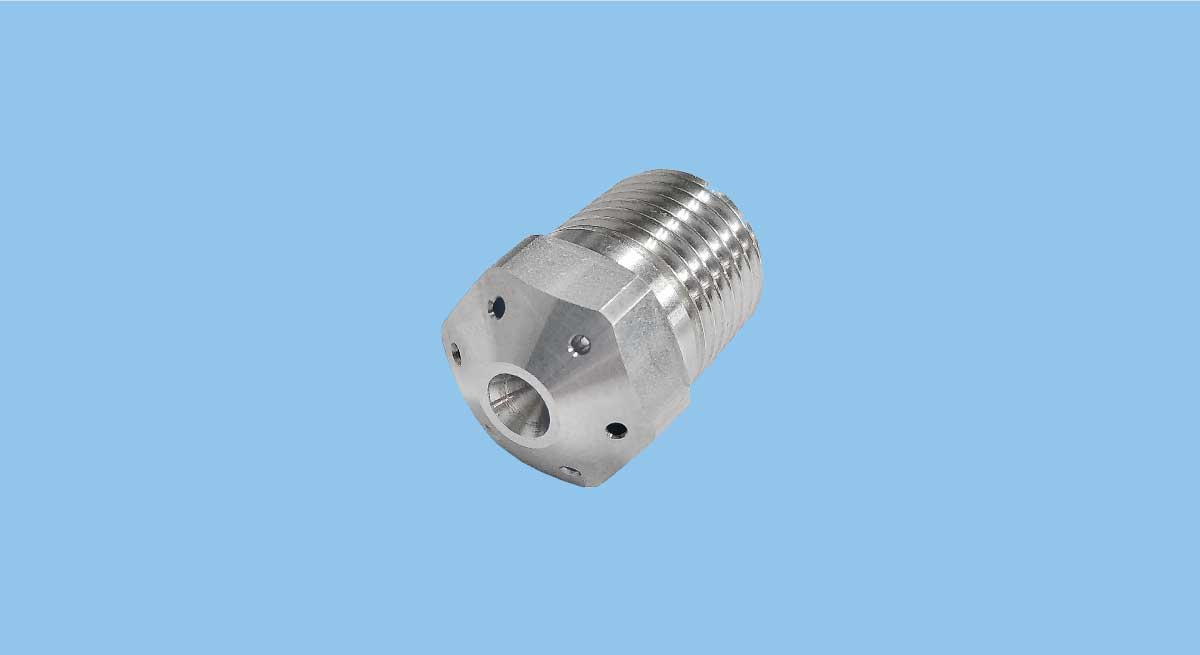

Compact air nozzle with a full cone air blow pattern.
A single nozzle covers a wide area with a blow width of 135 mm at 0.3 MPa.
Specs
| Air Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Air Supply | Compressed air |
| Max. Operating Pressure | 1.0 MPa |
| Max. Temperature | 400℃ |
| Noise Level | 57–82 dBA *1 |
| Air Consumption | 49–456 L/min, Normal at 0.3 MPa |
| Spray Width | 125–140 mm *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Measured at 0.3 MPa, 1,000 mm distance. (Background noise: 47 dBA)
*2) Measured at 0.1 to 0.5 MPa, 100 mm distance.
Resources for Download
• Air nozzle with a full cone air blow pattern.
• A single nozzle covers a wide area with a blow width of 135 mm at 0.3 MPa.
• The compact design of only 2 cm in length fits easily in a tight space.
• Available with orifice diameters of 0.5, 1.0, or 1.5 mm.
• Suitable for blowing air over circular-shaped workpieces, cooling, and gas purging.
Applications
- Air blow with wide coverage, aiding in water blow-off
- Cooling
- Gas purging
- Blowing air over circular-shaped workpieces such as cleaning lens surfaces
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
