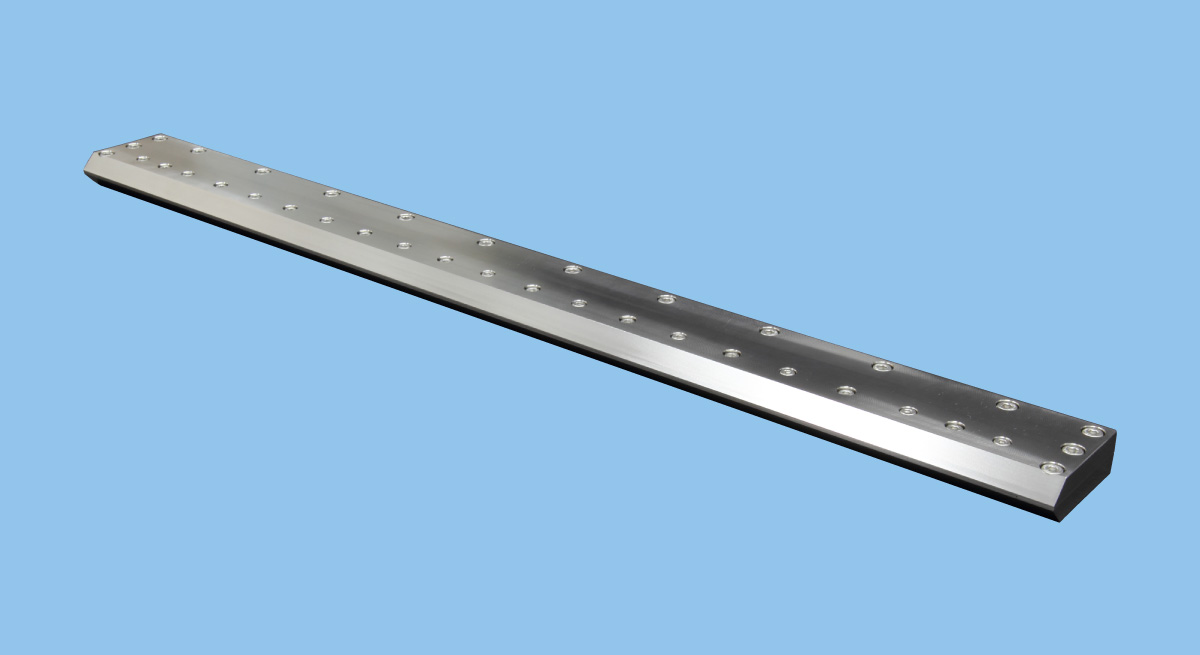

Slit Nozzles for Air Blowing
SLNHA-H
Long slit nozzles for air blowing produce an even impact distribution in the width direction.
Specs
| Air Inlet Thread Size | Rc3/8, Rc1/2 |
|---|---|
| Mounting Thread Size | M5 depth 8, M5 depth 10 *1 |
| Main Material | S304 or PVC |
| Slit Length | 530–1,400 mm *2 |
| Slit Opening | 0.1 mm |
| Air Supply | Compressor air |
| Max. Operating Pressure | 0.1 MPa for PVC, 0.3 MPa for S304 |
| Air Consumption | 656–1,733 L/min, Normal *3 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Screw size: M5 depth 8 mm for S304, M5 depth 10 mm for PVC.
*2) S304: Customizable total length from 250 mm to 3,950 mm.
PVC : Customizable total length from 250 mm to 2,950 mm.
*3) Measured at 0.05 MPa, for the slit length from 530 to 1,400 mm and slit opening of 0.1 mm
Resources for Download
• Produces even air flow with uniform impact distribution.
• Available in stainless steel 304 or PVC.
• Customizable total length from 250 mm to 3,950 mm (2,950 mm in PVC).
• Compact and space-saving design with a thickness of only 20 mm to 34 mm.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
