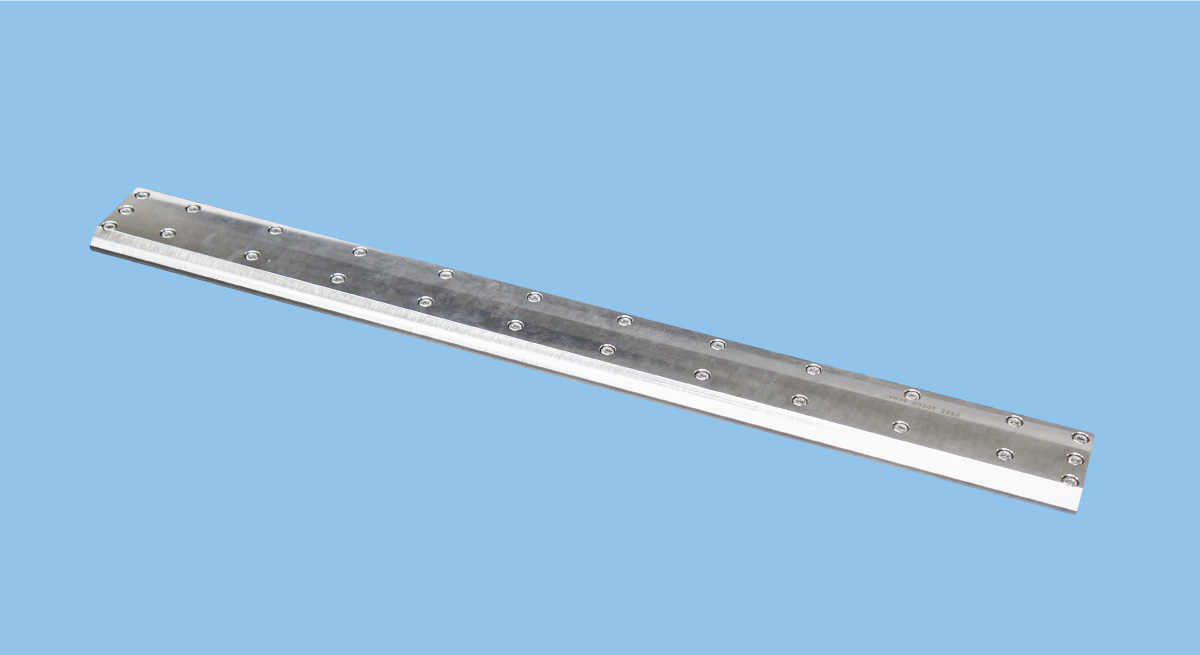

Slit Nozzles for Air Blowing
SLNHA-NA
Long slit nozzles for air blowing produce an even impact distribution in the width direction.
Users can conduct maintenance to ensure consistent rectification performance after disassembling and reassembling the nozzle.
Specs
| Air Inlet Thread Size | Rc3/8 |
|---|---|
| Mounting Thread Size | M5 depth 8 |
| Main Material | S304 |
| Slit Length | 530–1,400 mm *1 |
| Slit Opening | 0.1–0.2 mm |
| Air Supply | Compressed air |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Customizable total length from 250 mm to 2,300 mm.
Resources for Download
• Produces even air flow with uniform impact distribution.
• Slit nozzle without adjustment bolts. No adjustment of slit opening needed after maintenance.
• Mechanism retains its even flow after reassembly following in-house maintenance.
• Uniform air flow is ideal for blow-off drying.
• Customizable total length from 250 mm to 2,300 mm with slit opening of 0.1–0.2 mm.
Applications
- Blow-off and drying of printed circuit boards or flat panel displays.
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Food & beverages
- Automotives
