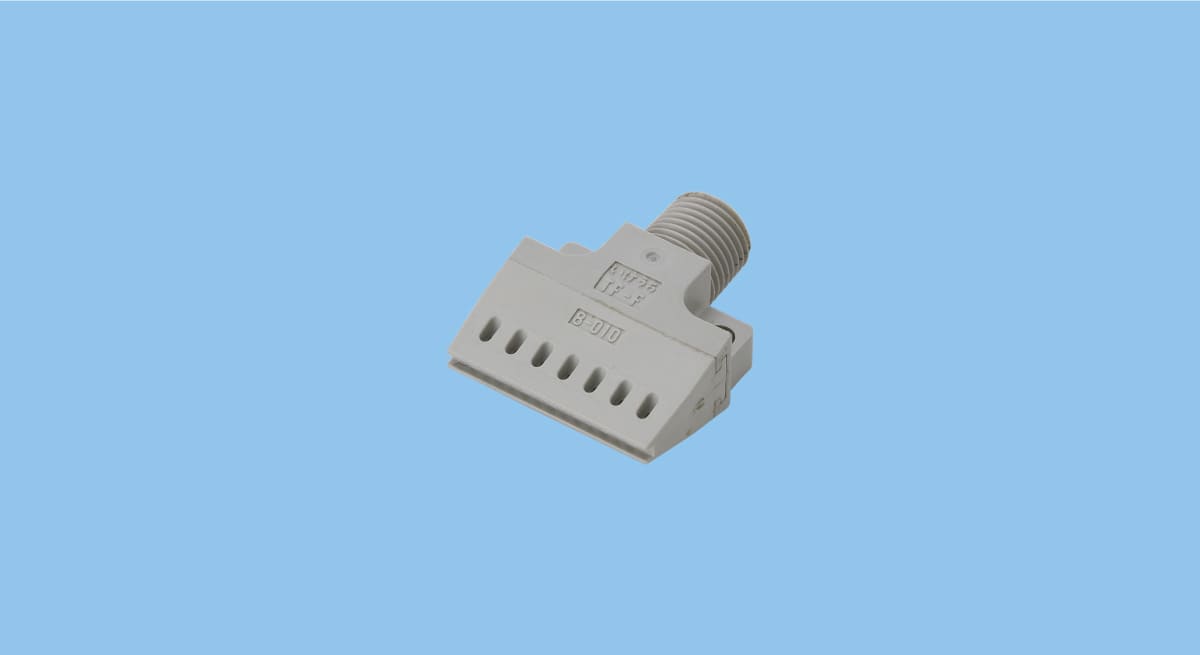

Flat Air Nozzles
TF-F24
TAIFUJet Series: compact air booster nozzles featuring a flat blow pattern and a uniform air flow distribution, measuring 24 mm in width and 30 mm in length.
Specs
| Air Inlet Thread Size | R1/8 |
|---|---|
| Main Material | PPS |
| Air Supply | Compressed air |
| Max. Operating Pressure | 0.7 MPa |
| Max. Temperature | 120℃ |
| Noise Level | 76 dBA *1 |
| Air Consumption | 225 NL/min *2 |
| Spray Width at Specified Pressure | 40 mm *3 |
| Spray Thickness at Specified Pressure | 45 mm *3 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) at 0.3 MPa, 1,000 mm distance
*2) 225 L/min, Normal at 0.3 MPa
*3) at 0.3 MPa, 100 mm distance.
Resources for Download
• Ultra-compact air nozzle with 24-mm spray width.
• High spray impact and minimal noise level.
• Compact enough to install in a narrow space, such as for blow-off drying in corners.
Applications
- Blowing off dust/paint dust/debris, Blowing off inferior products (rejection of inferior products)
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
