Flat Air Nozzles

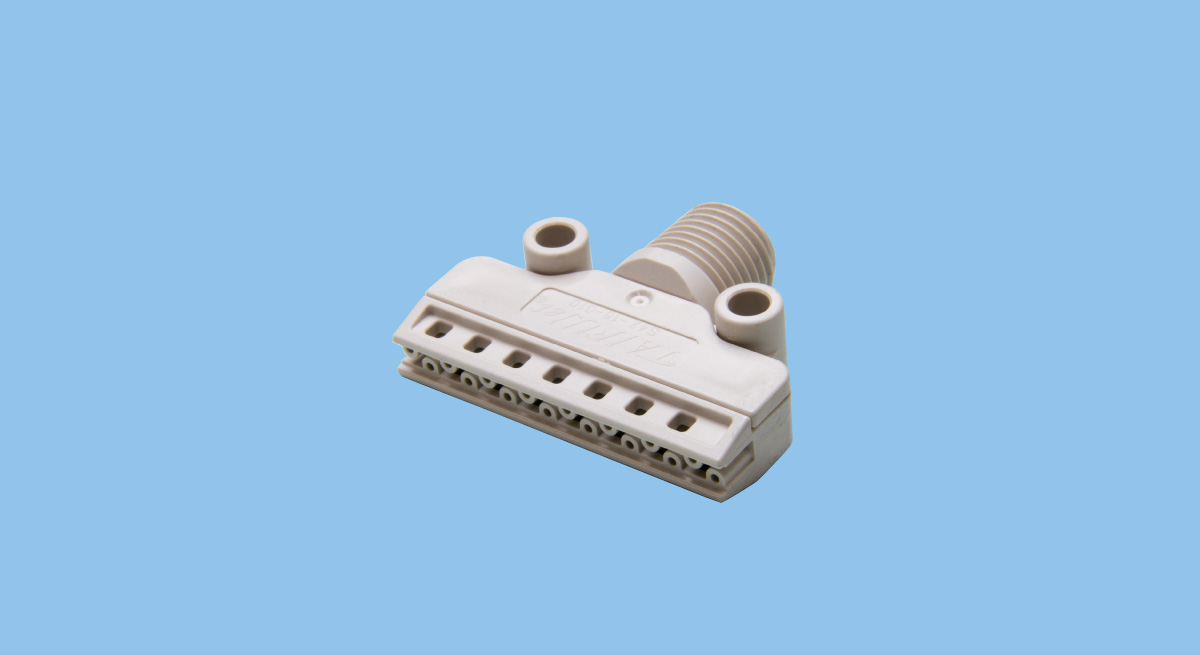

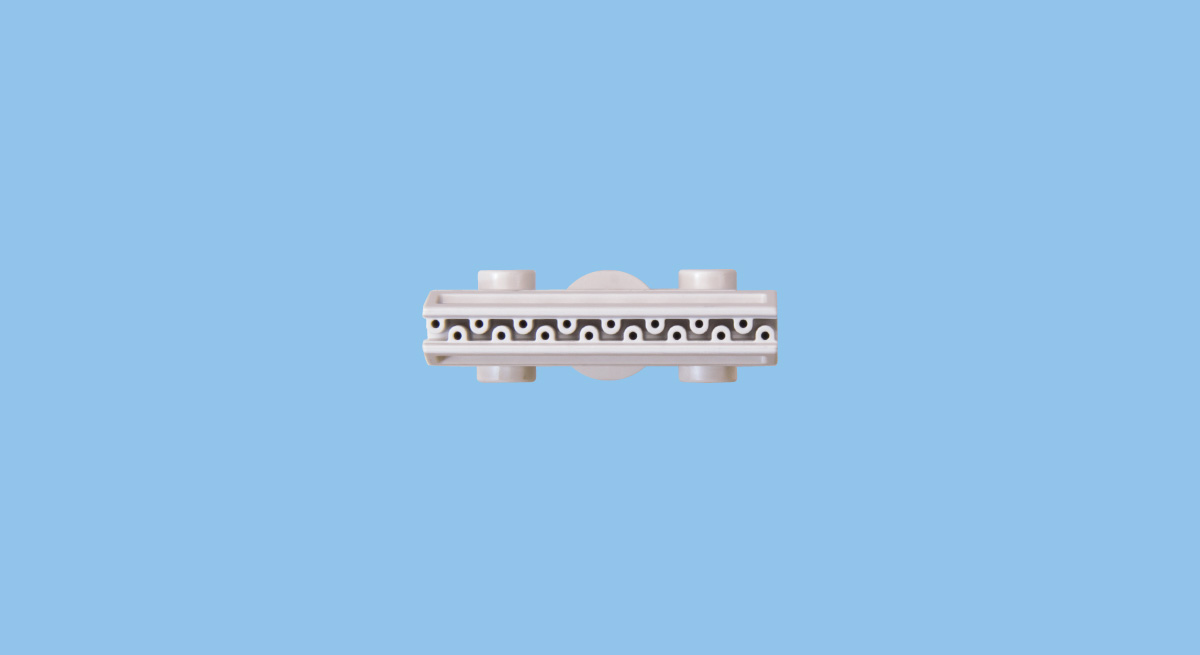

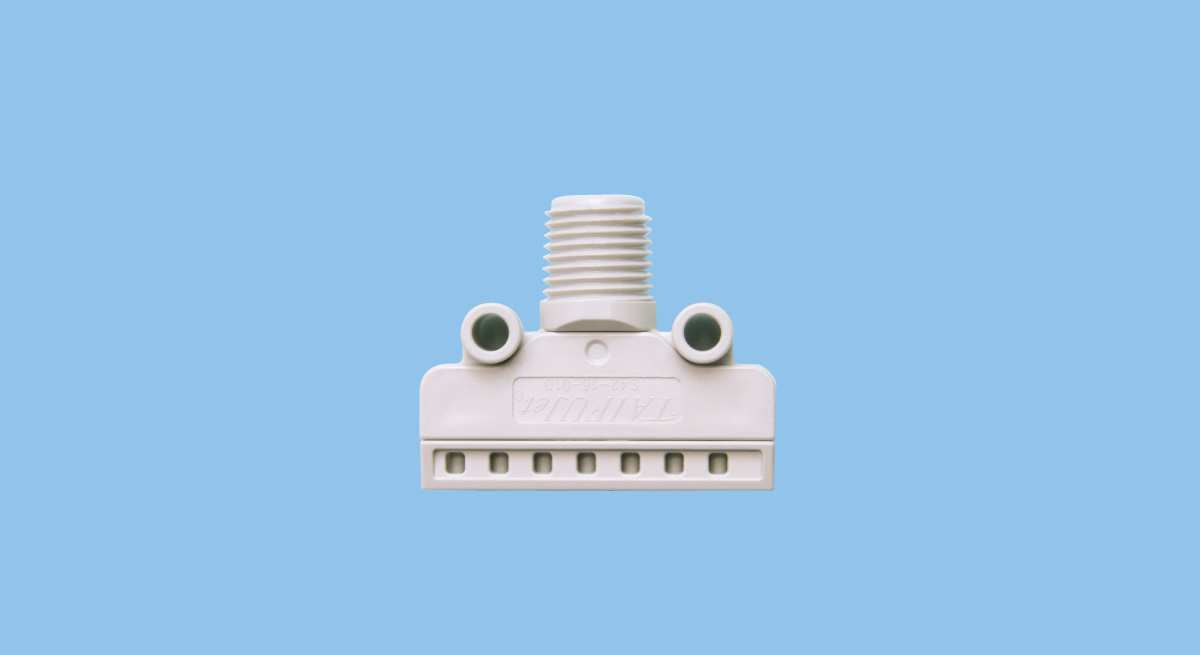

TF-FS42
TAIFUJet Series: compact air booster nozzles featuring a flat blow pattern and a uniform air flow distribution, measuring 42 mm in width.
Specs
| Air Inlet Thread Size | R1/4 |
|---|---|
| Main Material | PPS |
| Air Supply | Compressed air |
| Max. Operating Pressure | 0.7 MPa *1 |
| Max. Temperature | 80℃ *2 |
| Noise Level | 79 dBA *3 |
| Air Consumption | 440 NL/min *4 |
| Spray Width at Specified Pressure | 55 mm *5 |
| Spray Thickness at Specified Pressure | 45 mm *5 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Depends on temperature. See the catalog for details.
*2) Depends on operating pressure. See the catalog for details.
*3) at 0.3 MPa, 1,000 mm distance
*4) 440 L/min, Normal (at 0.3 MPa)
*5) at 0.3 MPa, 100 mm distance
Resources for Download
• This compact air nozzle (42 mm wide, 35 mm long) is suitable for applications where flat blowing is required in tight spaces.
• Low-noise level.
• Suitable for smaller equipment and cost reduction.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off dust/paint dust, Rejection of inferior products, Blowing off dust for steel plate
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
