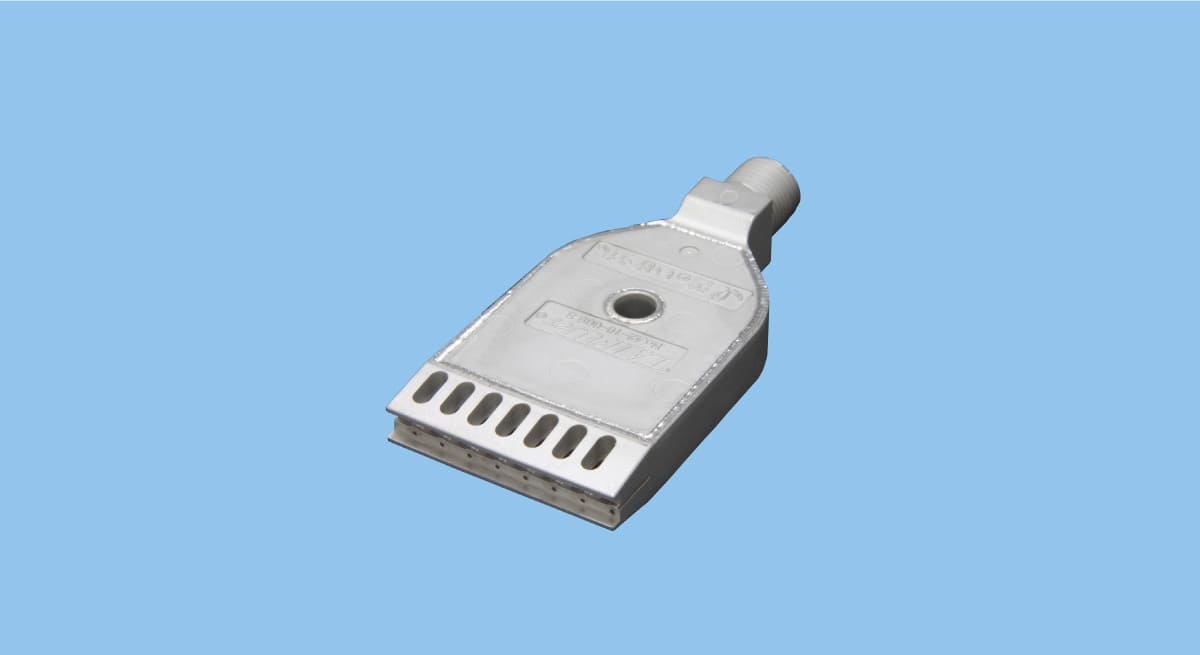

Flat Air Nozzles
TF-F42(Metal)
TAIFUJet Series: air booster nozzles featuring a flat blow pattern and a uniform air flow distribution, measuring 42 mm in width.
Please note that these products were discontinued at the end of March 2023; we encourage you to consider employing the successor model,TF-FS42.
Please note that the TF-FS42 is more compact compared to the TF-F42, with a reduced total length from 90mm to 35mm.
Additionally, we offer optional extension adaptors to adjust the total length as needed.
Specs
| Air Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S316L equivalent |
| Air Supply | Compressed air |
| Max. Operating Pressure | 1.0 MPa |
| Max. Temperature | 400℃ |
| Noise Level | 77 dBA *1 |
| Air Consumption | 280–630 NL/min *2 |
| Spray Width at Specified Pressure | 55 mm *3 |
| Spray Thickness at Specified Pressure | 50 mm *4 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) 77 dBA (at 0.3 MPa)
*2) 440 L/min, Normal (at 0.3 MPa)
*3)*4) at 100 mm below the nozzle orifice
Resources for Download
• 42 mm wide air nozzle generating an effective flat blow through 16 orifices.
• The unique design creates a uniform and efficient air flow distribution.
• Low noise level.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off dust/paint dust, Rejection of inferior products, Blowing off dust for steel plate
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
