Flat Air Nozzles

TF-FS42 (Metal)

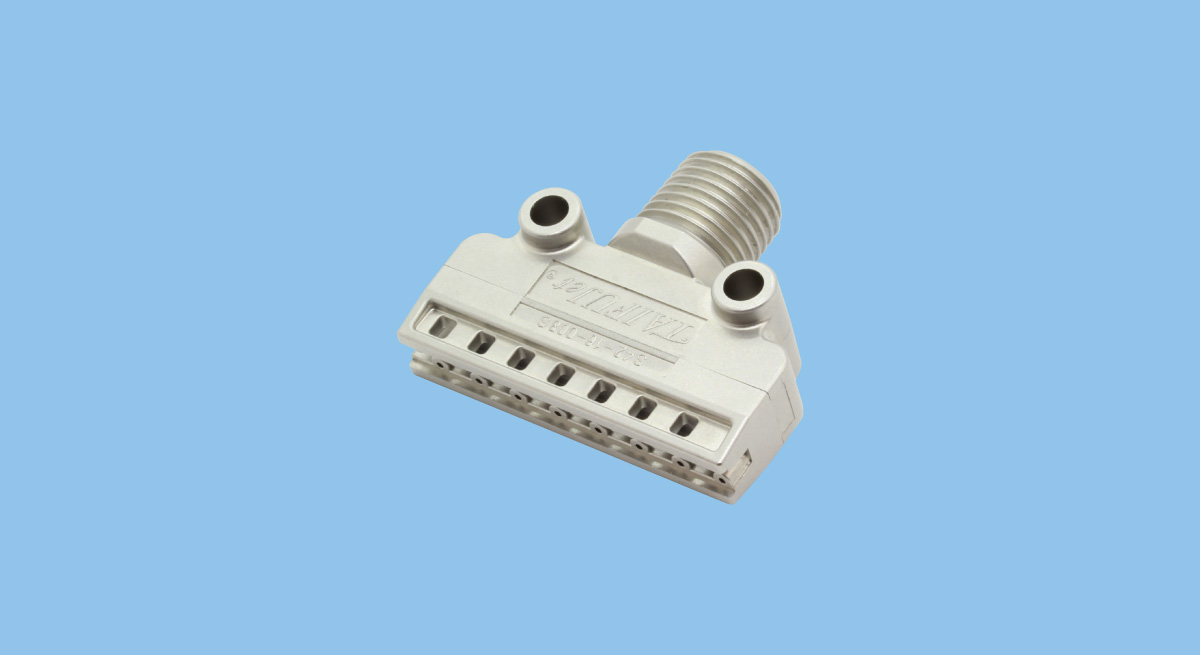

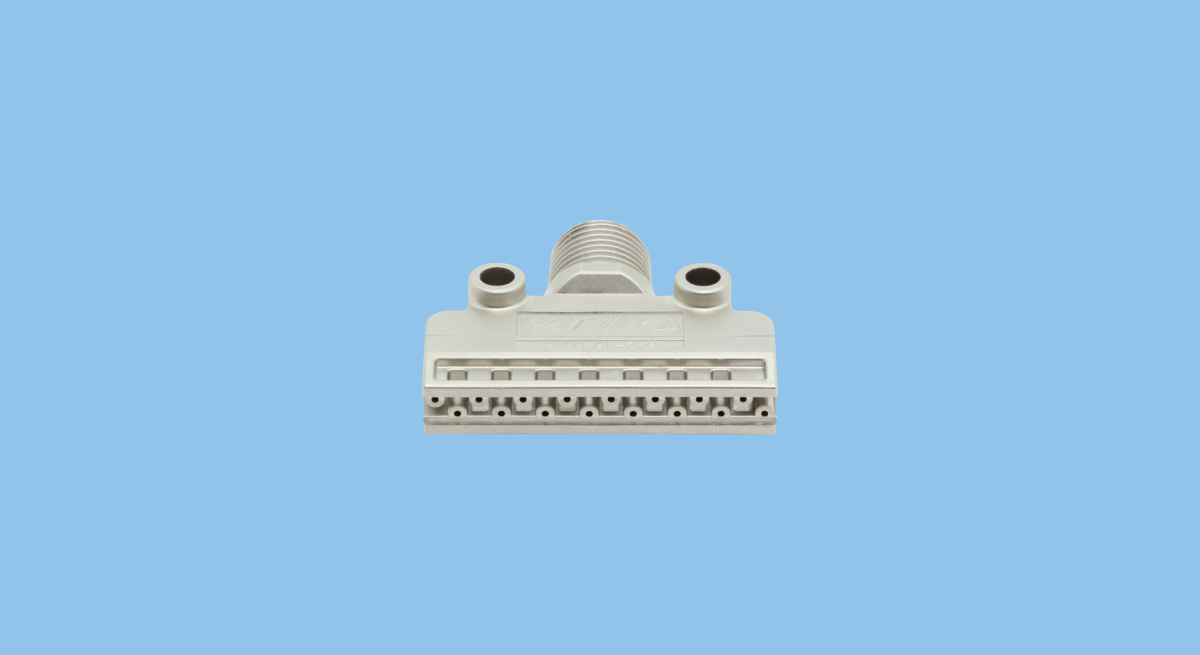

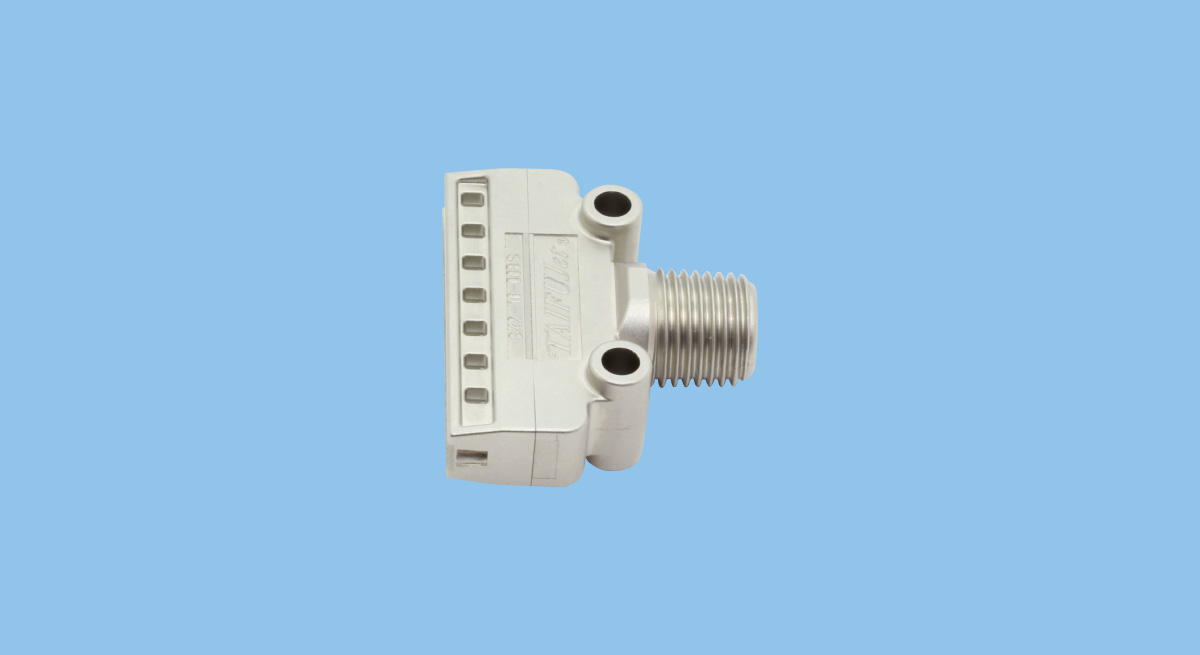

TAIFUJet Series: compact air booster nozzles featuring a flat blow pattern and a uniform air flow distribution, measuring 42 mm in width.


This series succeeds the TF-F42 (metal). Please note that its body length has been reduced from 90 mm to 35 mm.


Additionally, we also offer optional extension adaptors to adjust the total length as needed.

Specs

Air Inlet Thread Size R1/4
Main Material S316L equivalent
Air Supply Compressed air
Max. Operating Pressure 1.0 MPa
Max. Temperature 400℃
Noise Level 73–82 dBA *1
Air Consumption 280–630 NL/min *2
Spray Width at Specified Pressure 55 mm *3
Spray Thickness at Specified Pressure 45 mm *3

*1) at 0.3 MPa, 1,000 mm distance
*2) 280–630 L/min, Normal (at 0.3 MPa)
*3) at 0.3 MPa, 100 mm distance.

Resources for Download

• This compact air nozzle (42 mm wide, 35 mm long) is suitable for applications where flat blowing is required in tight spaces.

• The orifices come in different diameters; 0.8, 1.0, or 1.2 mm.

• Low-noise level.

• Suitable for smaller equipment and cost reduction.

Applications

  • Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
  • Blowing off dust/paint dust, Rejection of inferior products, Blowing off dust for steel plate
  • Cooling: Pinpoint cooling for molded plastic

Industries where this nozzle is used

  • Steelmaking
  • Machinery
  • Electronics
  • Paper & Pulp
  • Printing
  • Food
  • Automotives
