Full Cone Spray Nozzles (Alumina Ceramic)
AJP-AL92
Hydraulic hollow cone spray nozzles, featuring a tangential design with the spraying axis at a 90˚ angle from the nozzle inlet, are made of alumina ceramic with excellent wear resistance. Their design without a whirler allows for a large free passage diameter.
Specs
| Liquid Inlet Thread Size | R1/2, R3/4, R1, R1*1/2 *1 |
|---|---|
| Main Material | 92％ Alumina |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 800–1,400 μm |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 18.0–250 L/min |
| Spray Angle at Standard Pressure | 85º, 90º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) The listed sizes refer to the nozzle's male threads. When sold with a stainless steel socket, the actual liquid inlet size will be Rc (female thread). The socket turns the male nozzle thread into a female connection, preventing damage to the delicate alumina threads.
Resources for Download

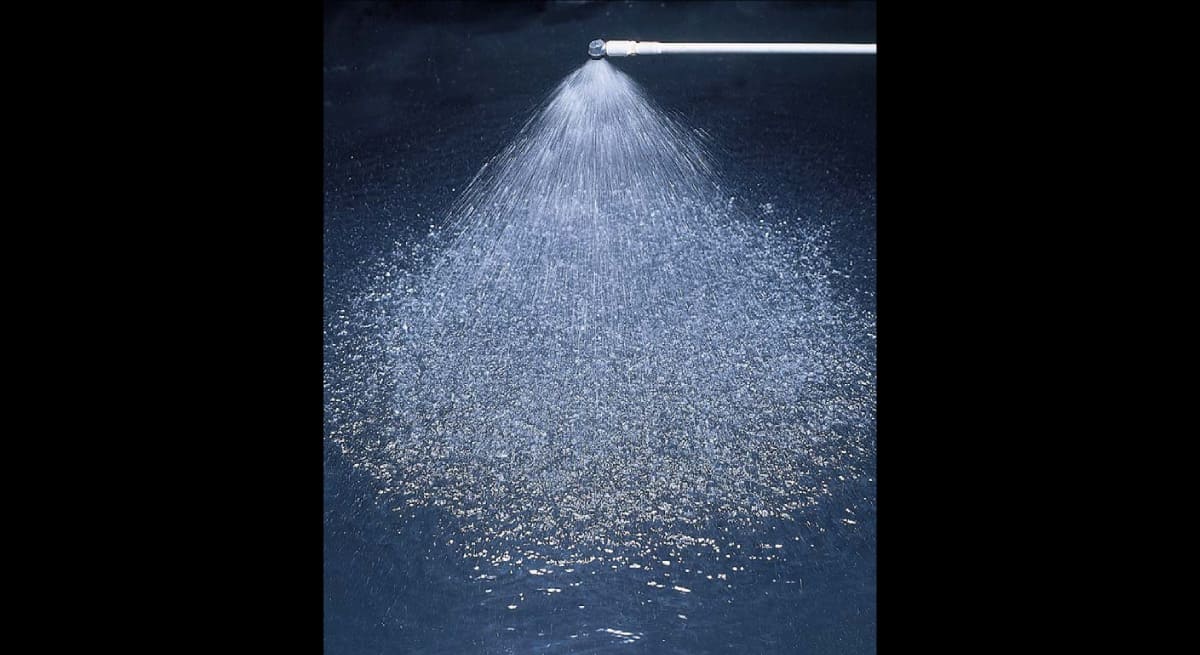

• Full cone spray pattern with a round impact area and uniform distribution.
• Without using a whirler, the liquid is atomized by collision inflow inside the nozzle.
• No-whirler design with a large free passage diameter minimizes clogging.
• Nozzle sprays at a 90º angle to the nozzle inlet. This right angle nozzle is suitable for installation in small spaces.
Applications
- Spraying slurry
- Absorption tower of flue gas desulfurization equipment
- Spraying water in cooling tower
- Applications where re-circulated water is being used or clogging is a concern
Industries where this nozzle is used
- Steelmaking
- Pollution control
Structure
- Almina ceramic one-piece structure.
- No obstructions in the nozzle interior.
