Full Cone Spray Nozzles (Clog-resistant)
AJP-PPS
Hydraulic full cone spray nozzles, featuring a tangential design with the spraying axis at a 90˚ angle from the nozzle inlet. Their design without a whirler allows for a large free passage diameter. These are ideal for applications such as cleaning and stripping processes in printed circuit board manufacturing.
Specs
| Liquid Inlet Thread Size | R1/4, R3/8 |
|---|---|
| Main Material | PPS |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 640–820 μm |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 4.00–16.0 L/min |
| Spray Angle at Standard Pressure | 75º, 80º, 85º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

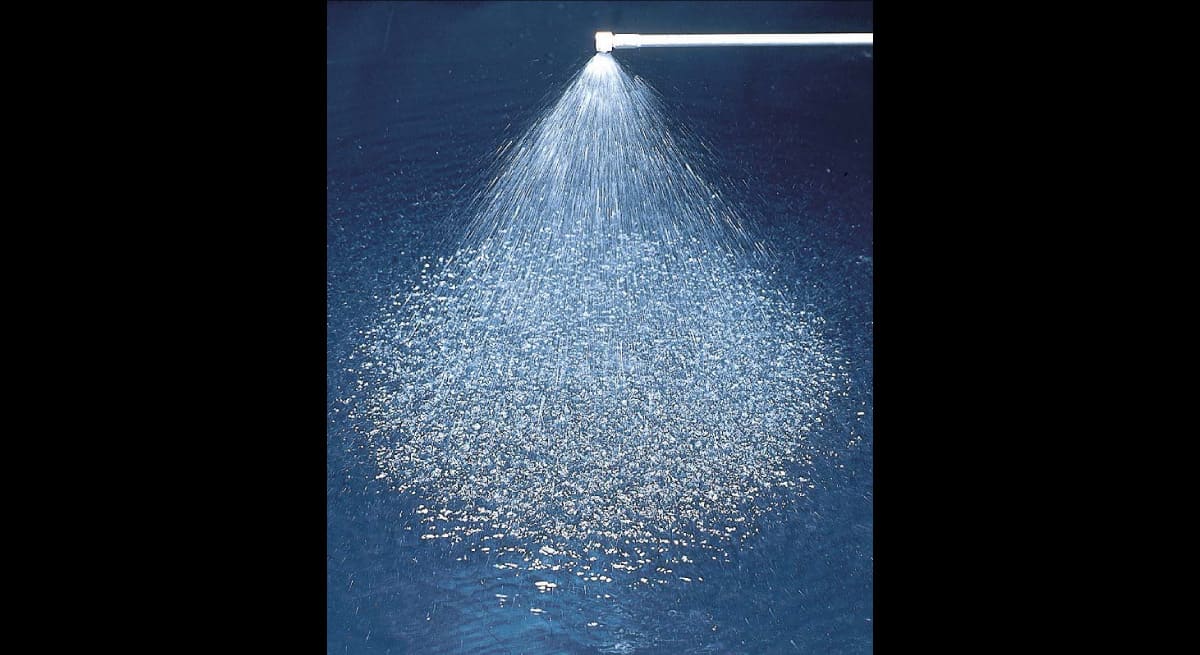

• Full cone spray pattern with a round impact area and uniform distribution.
• Unique design to produce fine atomization by liquid impinging inside chamber without a whirler.
• No-whirler design with large free passage diameter minimizes clogging.
• Spraying axis 90ﾟ from the axis of the nozzle inlet.
• High chemical and wear resistant AJP-PPS series is available for spraying hydrochloric acid and other chemicals.
Applications
- Cleaning: Pre-painting treatment, washing booths, machine parts, gas, incinerator fumes
- Cooling: Steel plates, copper pieces, gas
- Spraying: Aeration, foam breaking
- Others: Applications where re-circulated water is being used or clogging is a concern
Industries where this nozzle is used
- Steelmaking
- Pollution control

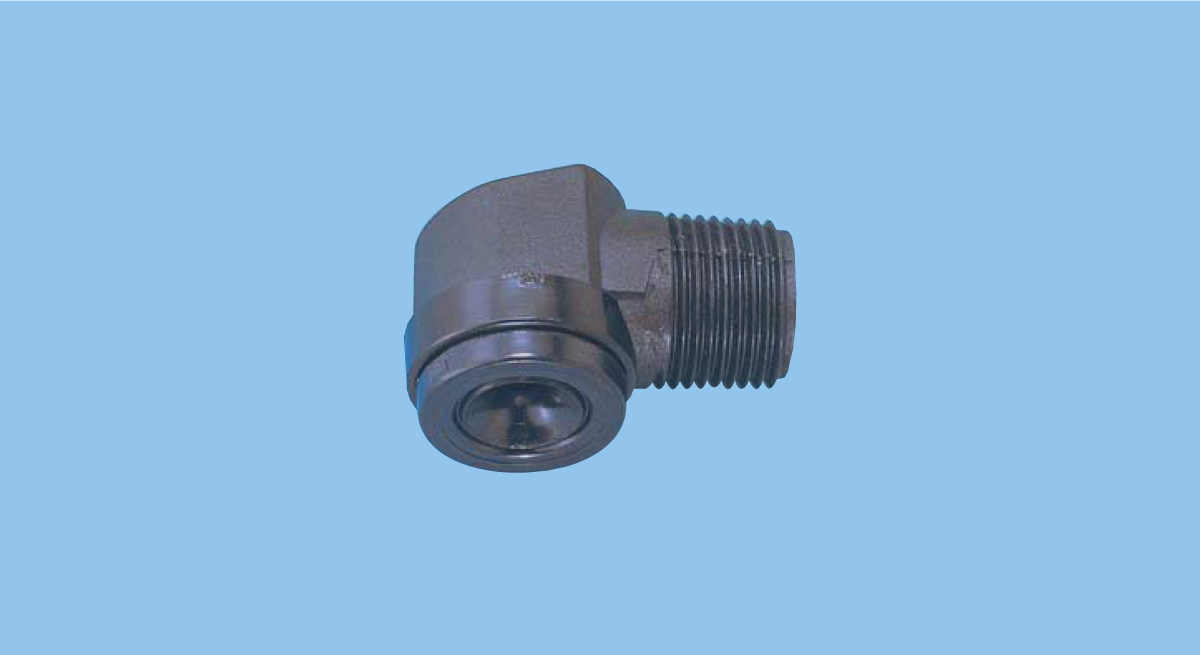

Structure
- Includes a nozzle body and orifice cap.
- Orifice cap for sizes R1/8, R3/8, and R1/2 is pressed into the nozzle body. Orifice cap for the other sizes are screwed in.
- No obstructions in the nozzle interior.
