Descaling Nozzles
DSP
Hydraulic flat spray nozzles, producing a thin and powerful spray impact like a sharp razor, with a uniform spray distribution.
Specs
| Liquid Inlet Thread Size | R1/8, Rc3/8 |
|---|---|
| Main Material | S303 |
| Fog Classification | Coarse fog, Fine fog, Semi-coarse fog, Semi-fine fog |
| Standard Pressure | 5 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 5.59–86.5 L/min |
| Spray Angle at Standard Pressure | 12º, 15º |
Resources for Download
• Flat spray nozzle engineered especially for outstanding powerful cleaning and descaling.
• Producing a thin, sharp razor-like flat spray pattern with high spray impact and even spray distribution.
• Features most powerful cleaning effects among our flat spray nozzles (under the same spray pressure and spray capacity conditions).
Applications
- High pressure cleaning
- descaling
- rust-removal
- degreasing
Industries where this nozzle is used
- Steelmaking
- Electronics
- Food

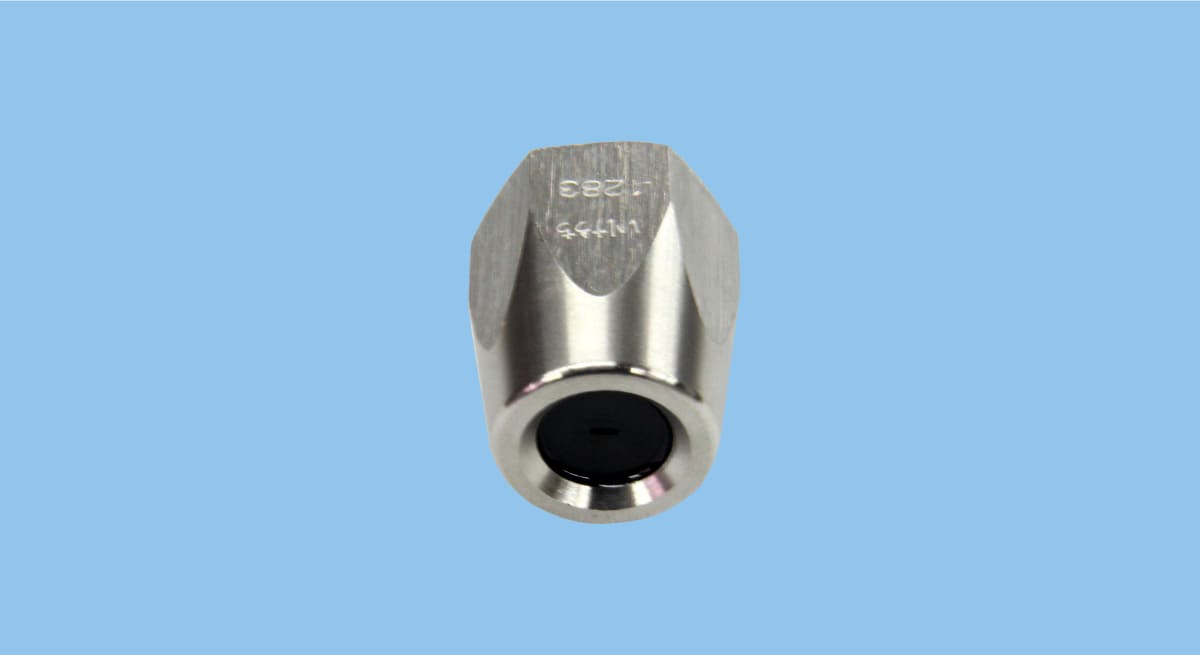

Structure
- One-piece structure with a ceramic orifice insert.
- From the inlet to the throat the ceramic orifce is round and then draws together into a rectangular slit towards the outlet.
