Full Cone Spray Nozzles
J
Hydraulic full cone spray nozzles with a round spray pattern and a uniform distribution, featuring a wear-resistant ceramic orifice and a closer, achieve the lowest flow rate among all the full cone nozzles in the lineup.
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 140–440 μm |
| Standard Pressure | 0.2 MPa or 0.5 MPa, depending on the model |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.09–1.40 L/min |
| Spray Angle at Standard Pressure | 70º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

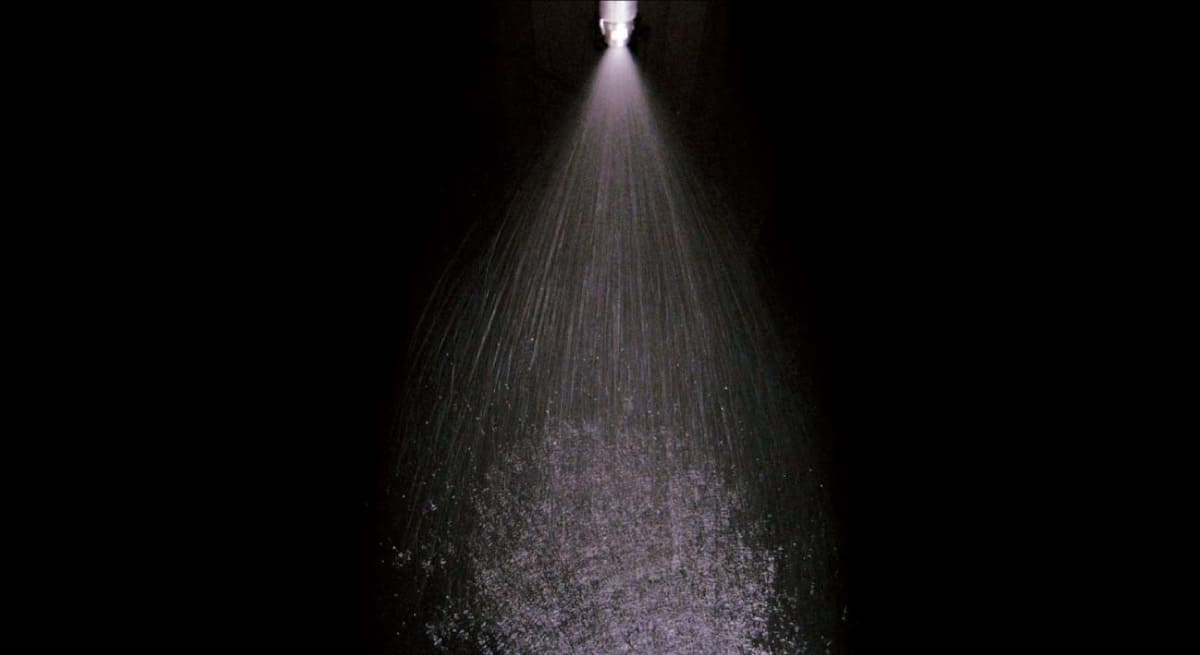

• Full cone spray pattern with a round impact area and uniform distribution.
• Features lowest flow rate among our full cone spray nozzles.
• Ceramic orifice and closer provide excellent wear-resistance.
Applications
- Spraying: Oils, lubricants, glues, etchants
- Cleaning: Galvanizing, gas
- Cooling: Machinery, gas
Industries where this nozzle is used
- Pollution control
- Electronics
- Food

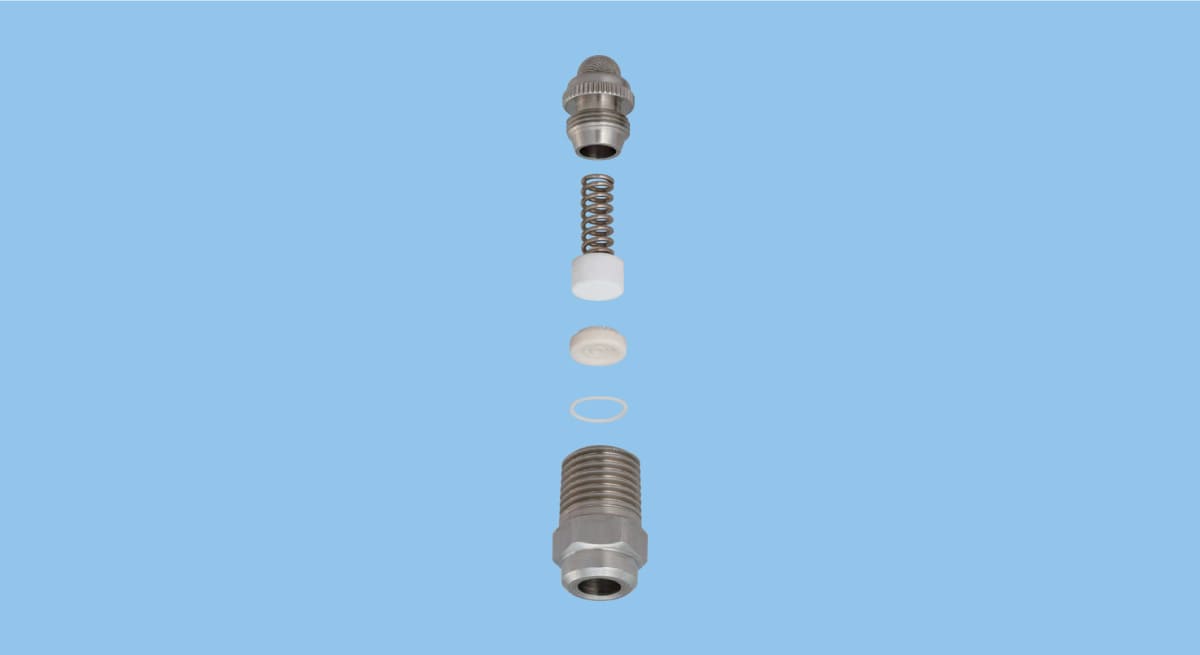

Structure
- Nozzle orifice and closer are made of ceramics.
- All models include built-in strainers.
