Low Flow Rate Full Cone Spray Nozzles
JJRP-PVDF

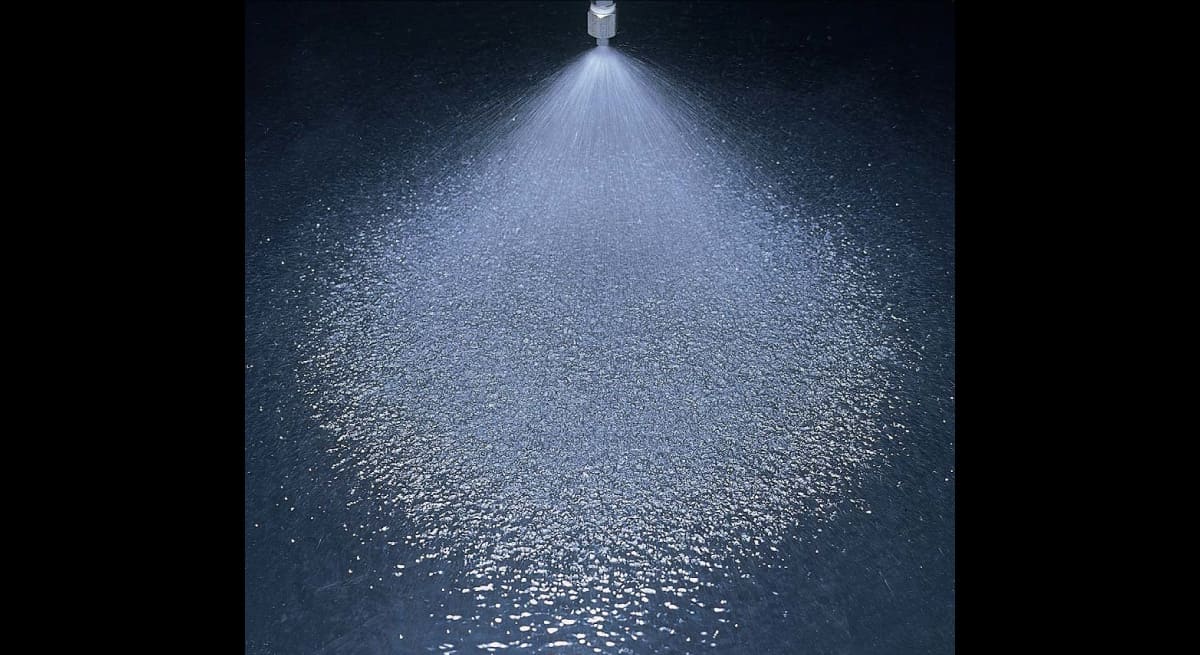

Hydraulic full cone spray nozzles, made of PVDF with excellent chemical resistance, achieve both a low flow rate and an excellent spray distribution by adopting a disc-shaped whirler.
Specs
| Liquid Inlet Thread Size | R1/8, R1/4 |
|---|---|
| Main Material | PVDF |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 260–410 μm |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.50–0.70 L/min |
| Spray Angle at Standard Pressure | 60º, 65º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• Low flow rate full cone spray nozzles.
• Disc whirler is designed to provide uniform spray distribution at low flow rate.
• Made of injection molded PVDF (polyvinylidene fluoride).
Applications
- Spraying: Etchants, acid liquids
- Cleaning with pure water
Industries where this nozzle is used
- Electronics
Structure

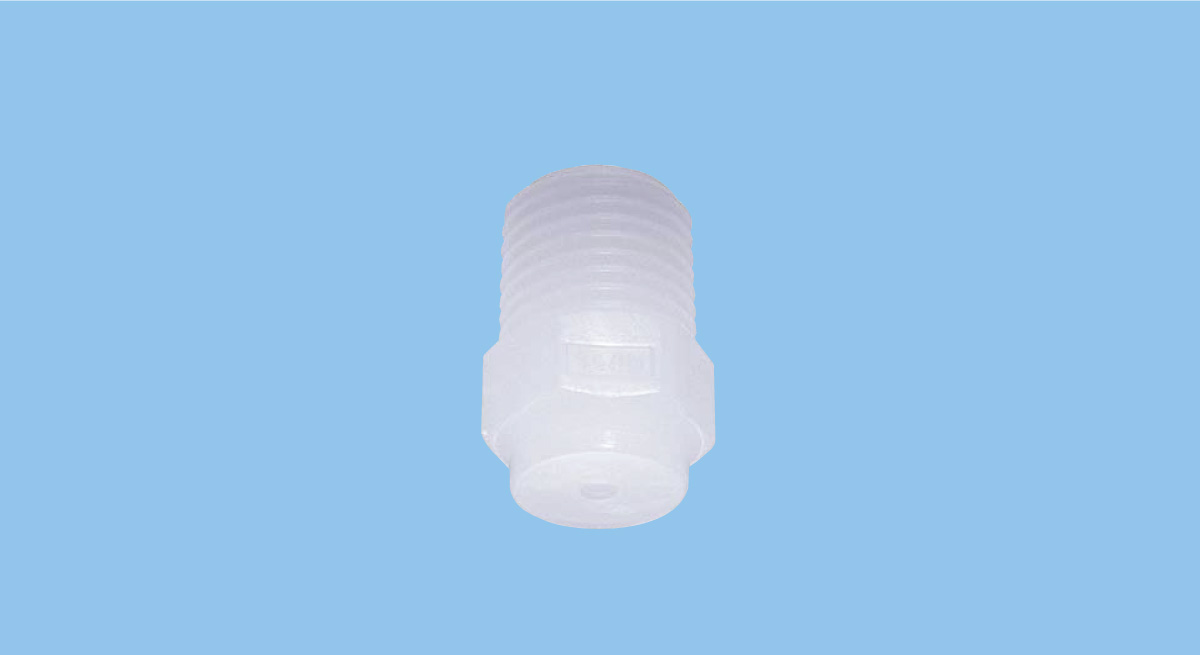

- One-piece structure with press-fit disc whirler. JJRP-PVDF nozzle body is injection molded.
