Full Cone Spray Nozzles (Three-piece Structure)
JJX

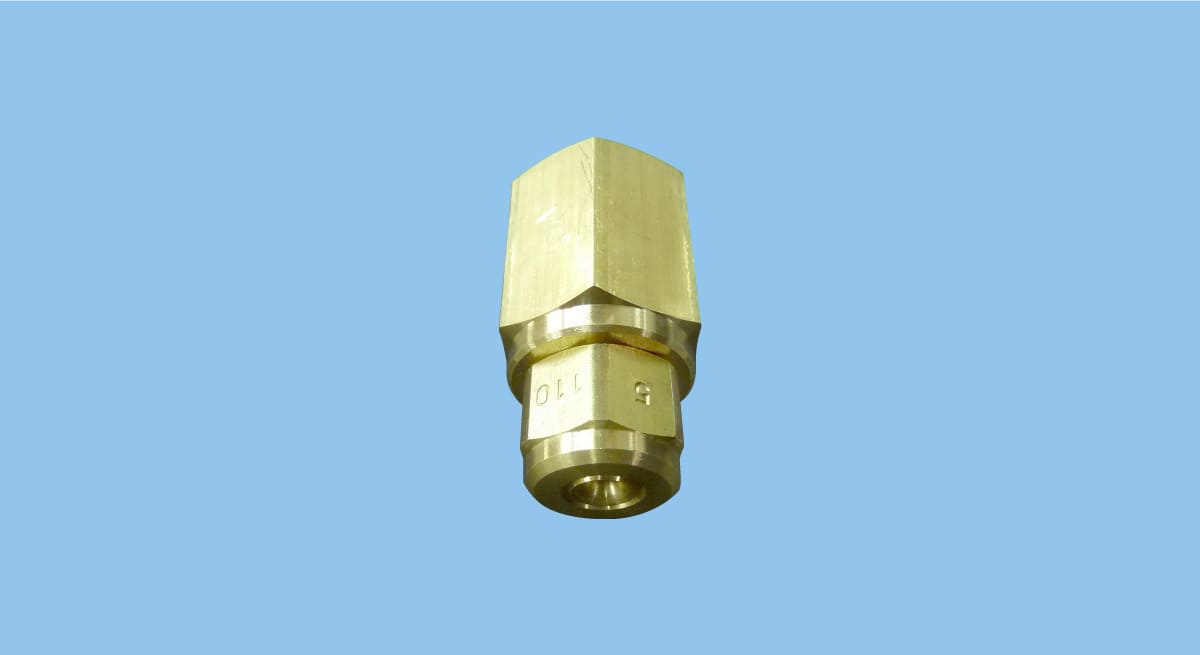

Hydraulic full cone spray nozzles with a round-shaped spray area and a uniform distribution feature a three-piece structure comprising a nozzle tip, a whirler, and an adaptor. This design allows for disassembly for maintenance, while the whirler is engineered not to come off easily.
Specs
| Liquid Inlet Thread Size | Rc1/4, Rc3/8 |
|---|---|
| Main Material | B (Brass) |
| Spray Capacity (Flow-rate) | 6.5–22.0 L/min (0.5 MPa) |
| Spray Angle | 67º, 90º, 110º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

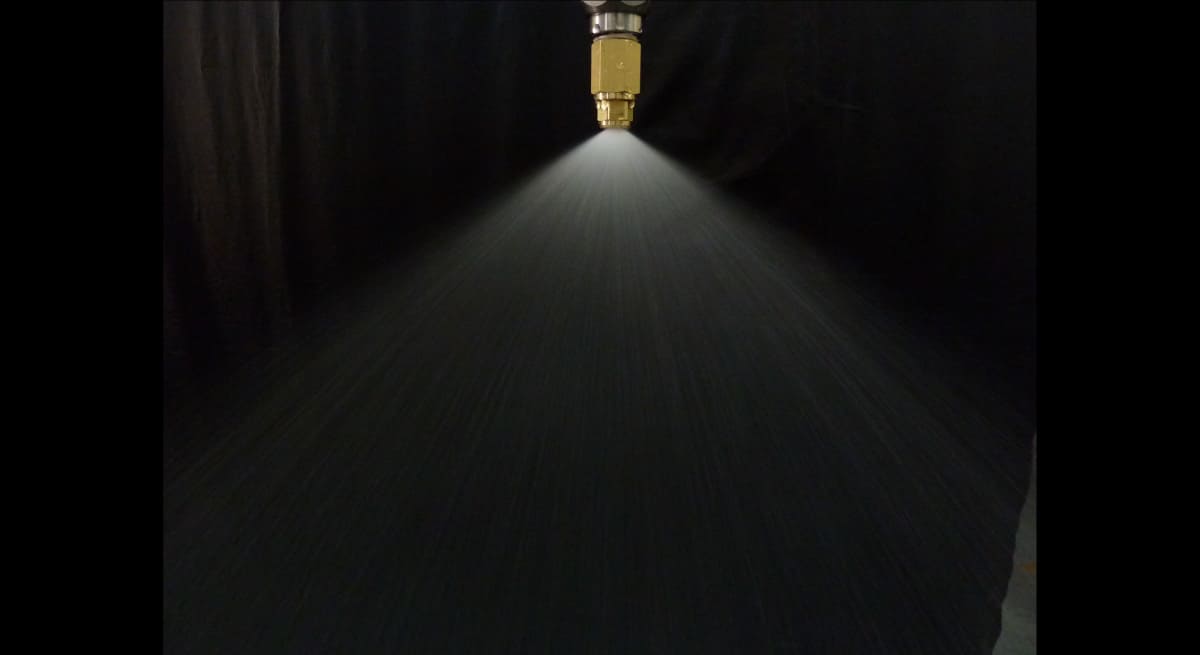

• Full cone spray pattern with a round impact area and uniform distribution.
• X-shaped whirler provides large free passage diameter for minimal clogging.
• Three-piece structure prevents the whirler from dropping off.
Applications
- Cooling: billet
Industries where this nozzle is used
- Steelmaking
Structure
- Comprises three parts: nozzle body, X-shaped whirler, and adaptor.
