Full Cone Spray Nozzles (Alumina Ceramic)
JUXP-AL92
Hydraulic full cone spray nozzles made of alumina ceramic with excellent wear resistance.
Specs
| Liquid Inlet Thread Size | R1, R1*1/2, R2, R2*1/2, R3 *1 |
|---|---|
| Main Material | 92％ Alumina |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 630–1,800 μm |
| Standard Pressure | 0.2 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 23.0–700 L/min |

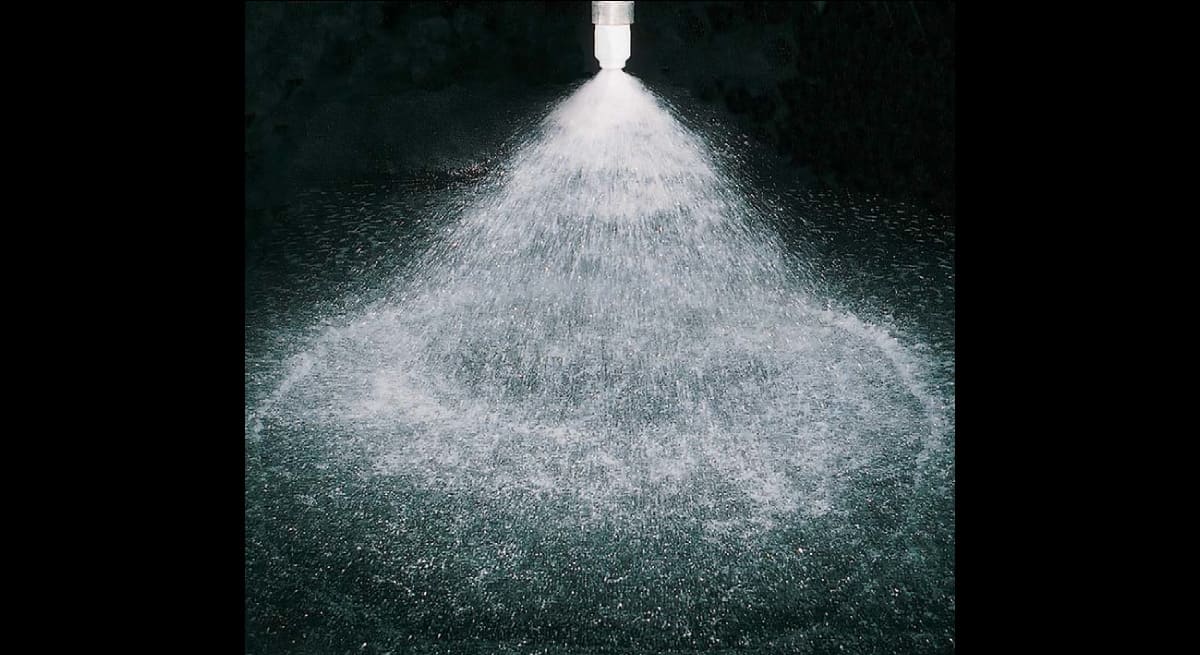

| Spray Angle at Standard Pressure | 75–100º |
Materials: Click here for full material descriptions, including chemical and heat resistance.

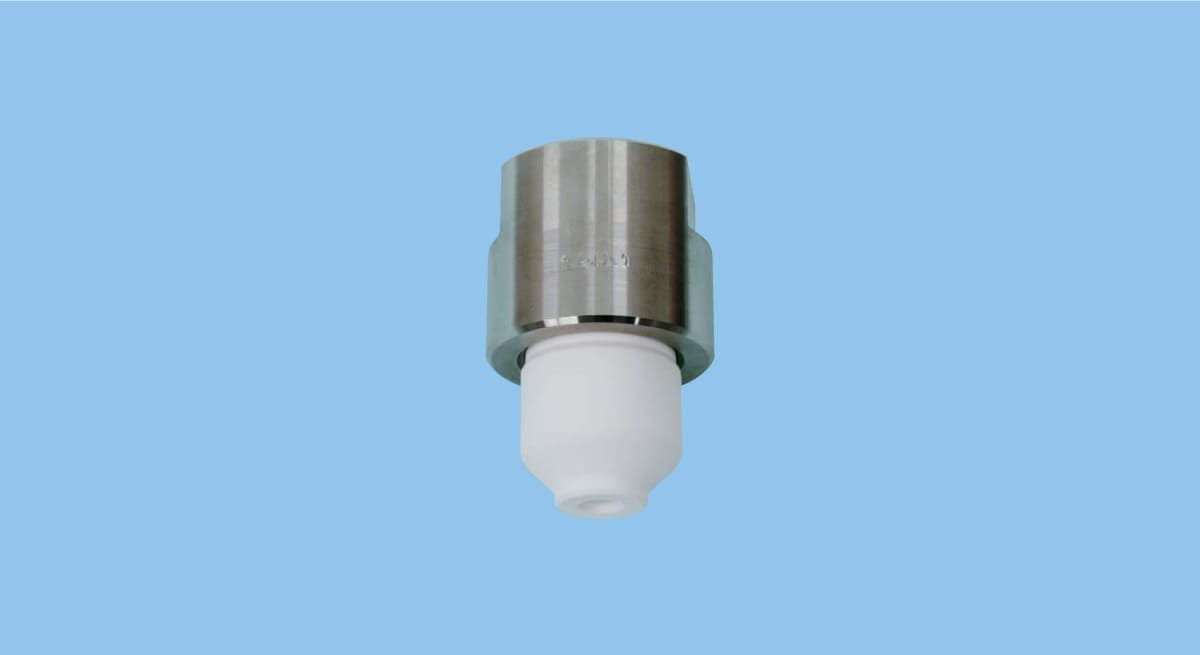

*1) The listed sizes refer to the nozzle's male threads. When sold with a stainless steel socket, the actual liquid inlet size will be Rc (female thread). The socket turns the male nozzle thread into a female connection, preventing damage to the delicate alumina threads.
Resources for Download
• X-shaped whirler provides large free passage diameter, minimizing clogging.
• Made of high-purity alumina ceramic, offering excellent wear resistance.
• Spray capacity ranges from medium to large.
Applications
- Absorption tower of flue gas desulfurization equipment.
- Spraying slurry
Industries where this nozzle is used
- Pollution control
Structure
- Whole nozzle fired as one piece.
