Hollow Cone Spray Nozzles (Three-piece Structure)
KD
Hydraulic hollow cone spray nozzles, which use ceramic as the primary material for internal parts, provide excellent wear resistance. A three-piece structure comprising a nozzle tip, a cap, and an adaptor, allowing for the separate replacement of a worn-out nozzle tip.
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 130–420 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.30–3.94 L/min |
| Spray Angle at Standard Pressure | 70–97º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

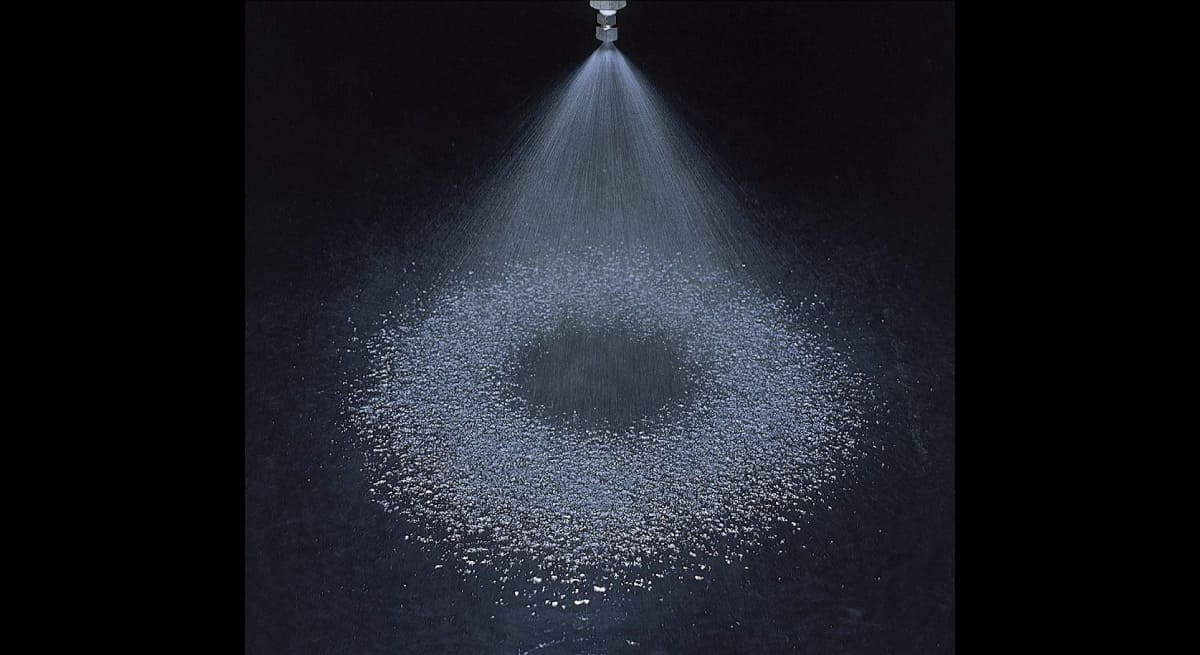

• Low flow rate hollow cone spray nozzle. Three-piece structure.
• Semi-fine atomization capability.
• Combines Compact design.
• The whirl chamber is formed by a ceramic orifice and closer, which provides excellent wear resistance.
Applications
- Cooling: Gas
- Spraying: Chemicals, dust suppression
Industries where this nozzle is used
- Pollution control

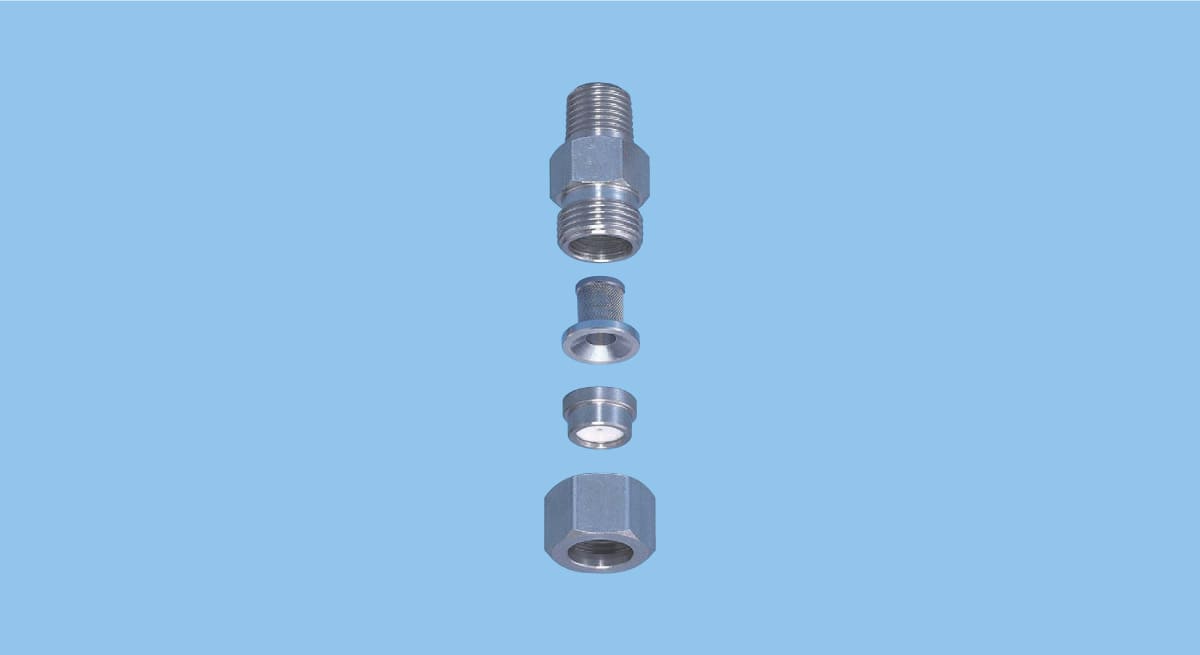

Structure
- Nozzle orifice and closer are made of ceramic.
- Includes three parts: Nozzle tips, cap, and adaptor. Worn-out nozzle tips can be replaced separately.
- Small spray capacity models (KD03, 033 and 042) come with or without a strainer.
