Hollow Cone Spray Nozzles (Three-piece Structure) KD
Hydraulic hollow cone spray nozzles, which use ceramic as the p…
- Some Models are Made-to-Order
- Precision Guarantee
- Humidification
- Industrial Cooling
- Snow Making
- Spraying
- Landscaping
- Machinery
- Pollution Control

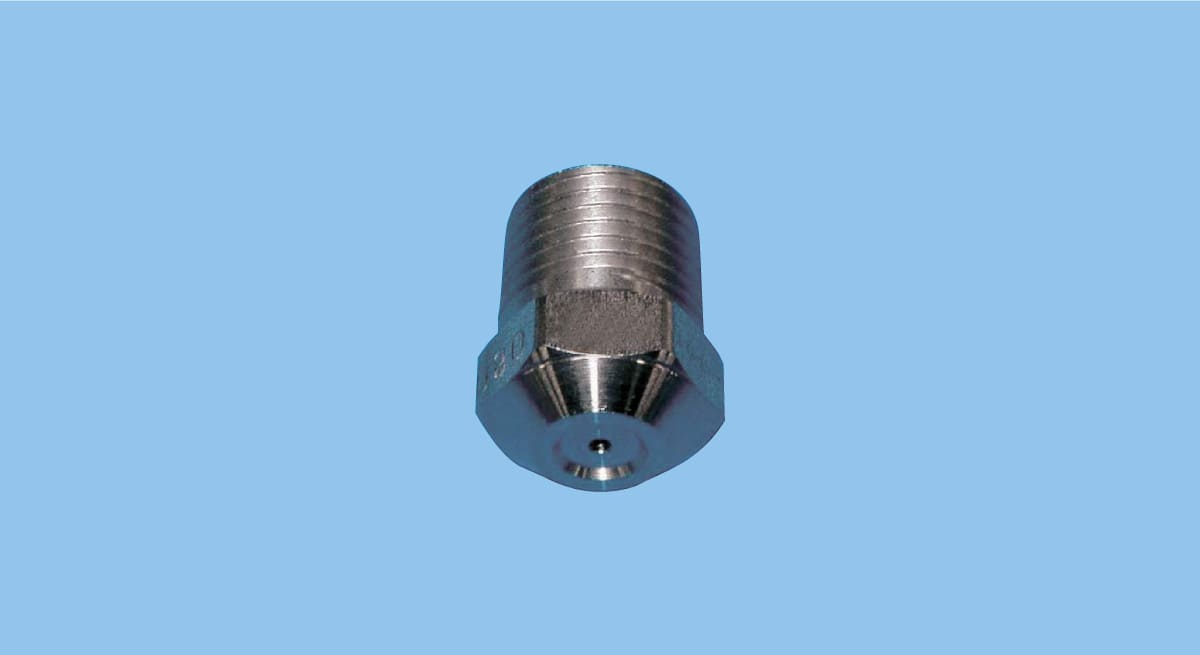

Hollow Cone Spray Nozzles
KKBP
Hydraulic hollow cone spray nozzles in a compact design and entirely made of metal, featuring a detachable whirler for easy maintenance.
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Fog Classification | Semi-fine fog |
| Mean Droplet Diameter | 160–360 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.50–2.00 L/min |
| Spray Angle at Standard Pressure | 53–68º |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
Resources for Download

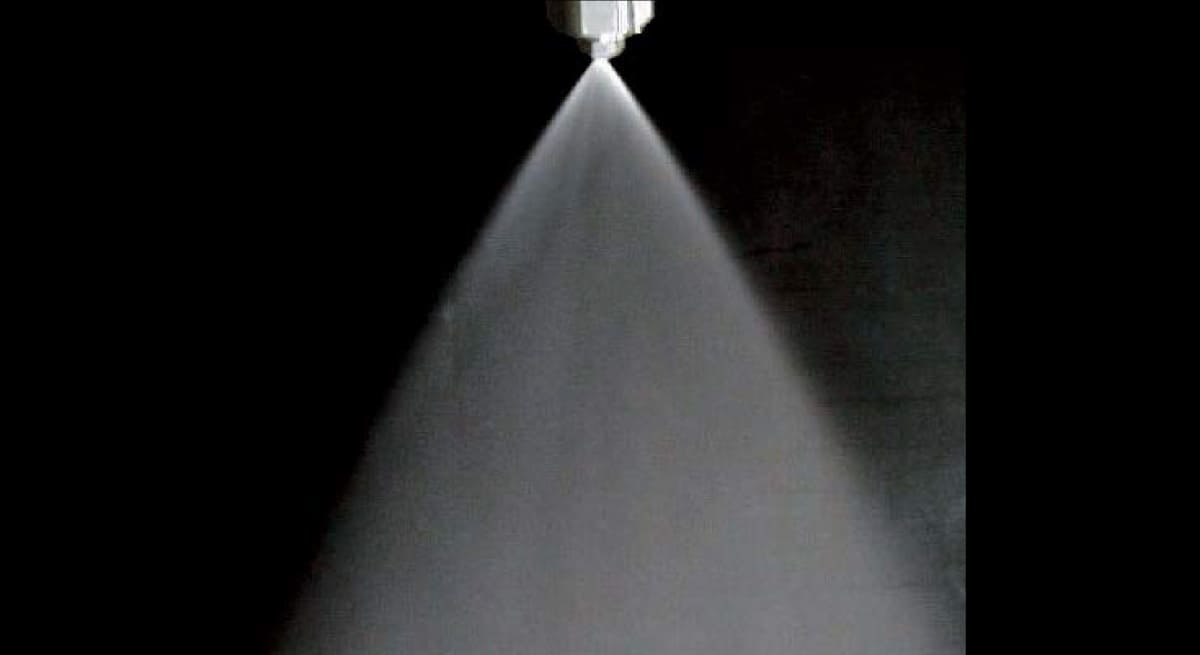

• Low flow rate hollow cone spray nozzle.
• Clog-resistant design due to large free passage diameter. Semi-fine atomization.
• Compact, lightweight design with low number of components.
• Maintenance is easy as whirler is detachable.
Applications
- Humidifying: Air handling units
- Cooling: Gas, metals
- Spraying: Chemicals
- Snow making (for snow machines)
Industries where this nozzle is used
- Pollution control
- Machinery
- Environment
- Scenery
Structure
- Includes a nozzle body and whirler.
