Flat Spray Nozzles (with Self-cleaning Function)
MOMOJet
Hydraulic spray nozzles with a mountain-shaped spray distribution, featuring a self-cleaning mechanism.
When the spray pressure drops to 0.03 MPa, the nozzle tip opens widely, flushing out foreign particles that have accumulated inside the nozzle.
Specs
| Liquid Inlet Thread Size | R1/2 |
|---|---|
| Main Material | S303 |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 300–490 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 2.00–6.00 L/min |
| Spray Angle at Standard Pressure | 80º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Caution for Use:
- To start spraying, a flow rate of about 9 L/min at 0.02–0.03 MPa is required for all models. Make sure to select an appropriate pump.
- MOMOJet is designed to start spraying when the pressure is greater than 0.1 MPa. Use MOMOJet at a pressure of 0.2 MPa or higher.
- Since MOMOJet series nozzles have moving nozzle tips, the spray capacity is only guaranteed within +/-10% and the spray angle within +/-10ﾟ at standard pressure.
Resources for Download

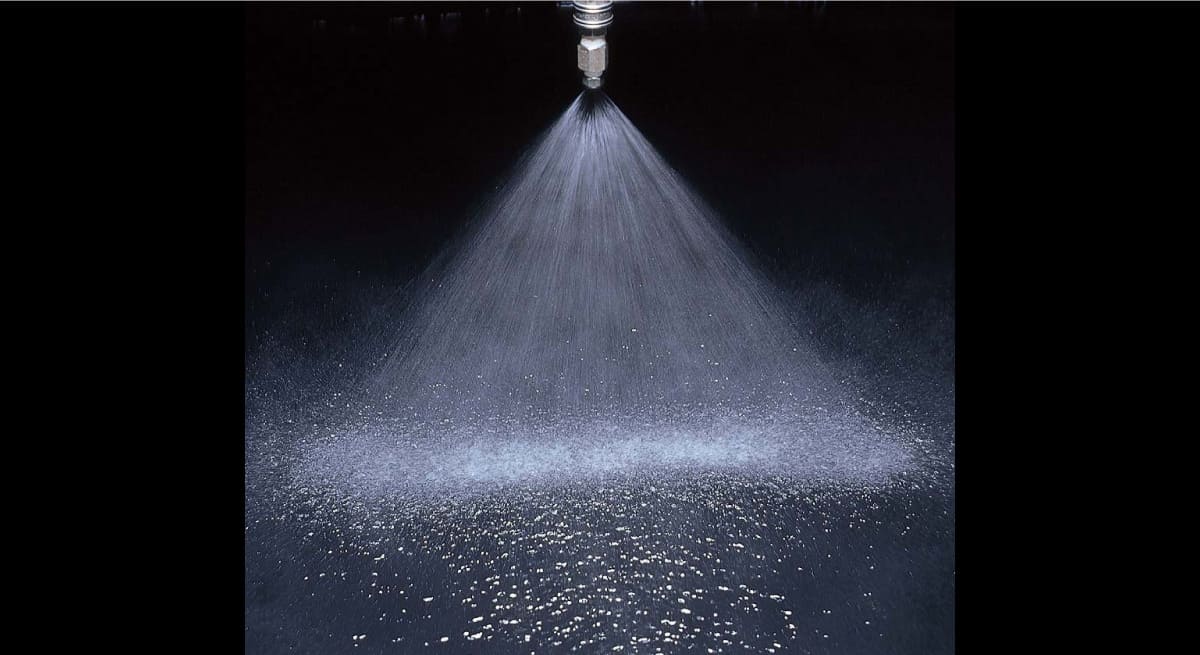

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.

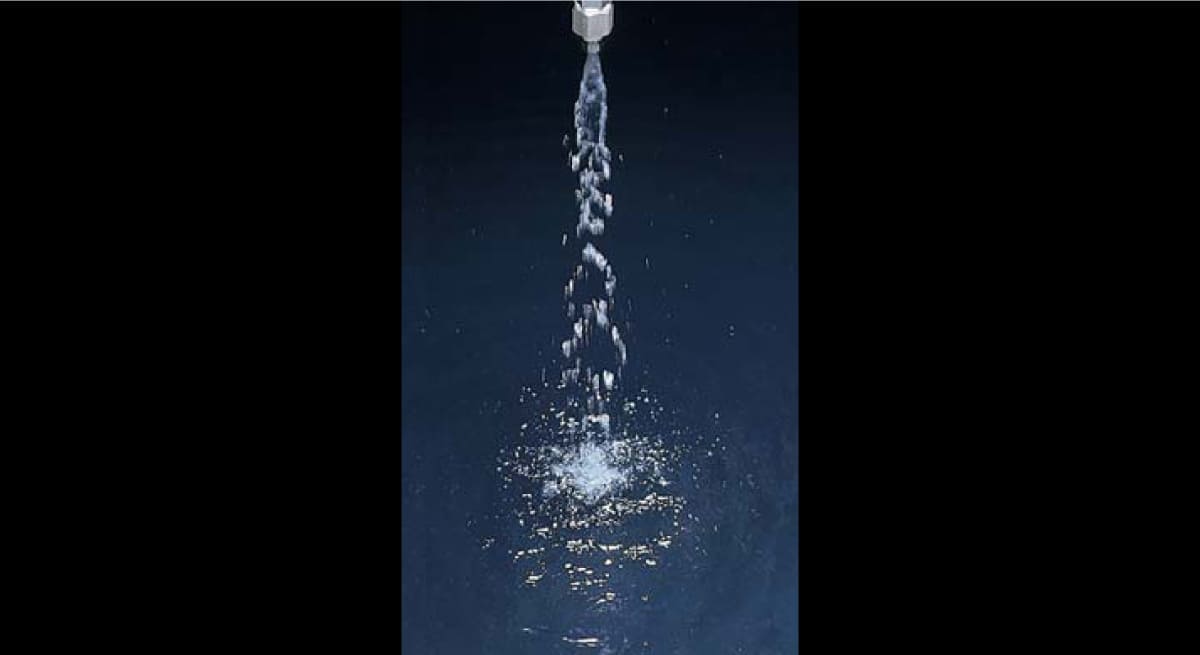

• If clogged, by reducing the pressure to 0.03 MPa, the nozzle tip is retracted and purges foreign particles. By increasing the pressure to 0.2 MPa and greater, normal spraying is restored.
• Straight-through orifice is suitable for multiple nozzle arrangement.
Applications
- Cleaning: Papermaking (wire, felt parts and rollers), steel plates, PCB
- Cooling: Steel plates
- Foam breaking: Waste water treatment
- Others: Applications where recirculated water is being used
Industries where this nozzle is used
- Steelmaking
- Paper & Pulp
- Printing
- Automotives
Structure
- By changing the liquid pressure, a built-in spring moves the split nozzle tip up and own and opens the orifice for purging.
- Nozzle tips are made by metal injection molding.
