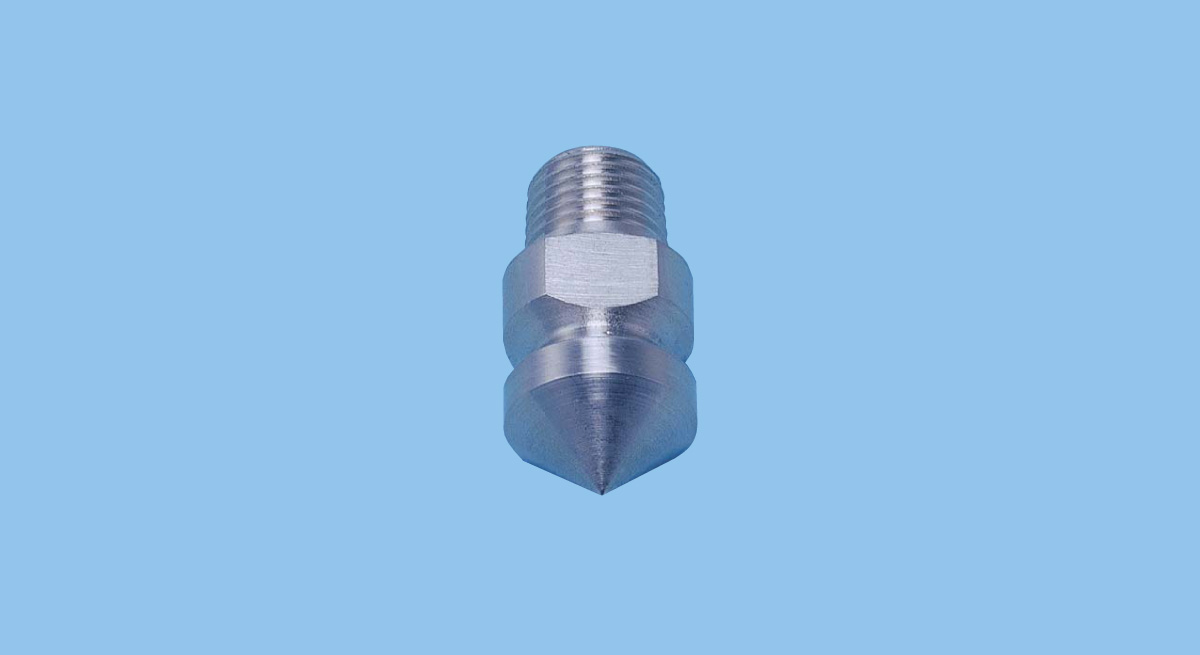

High-Pressure Rotating Pipe Cleaning Nozzles RSP-R
Spray nozzles for pipe cleaning, utilizing their spray reaction…
- Made-to-Order
- Cleaning
Pipe Cleaning Nozzles
RSP

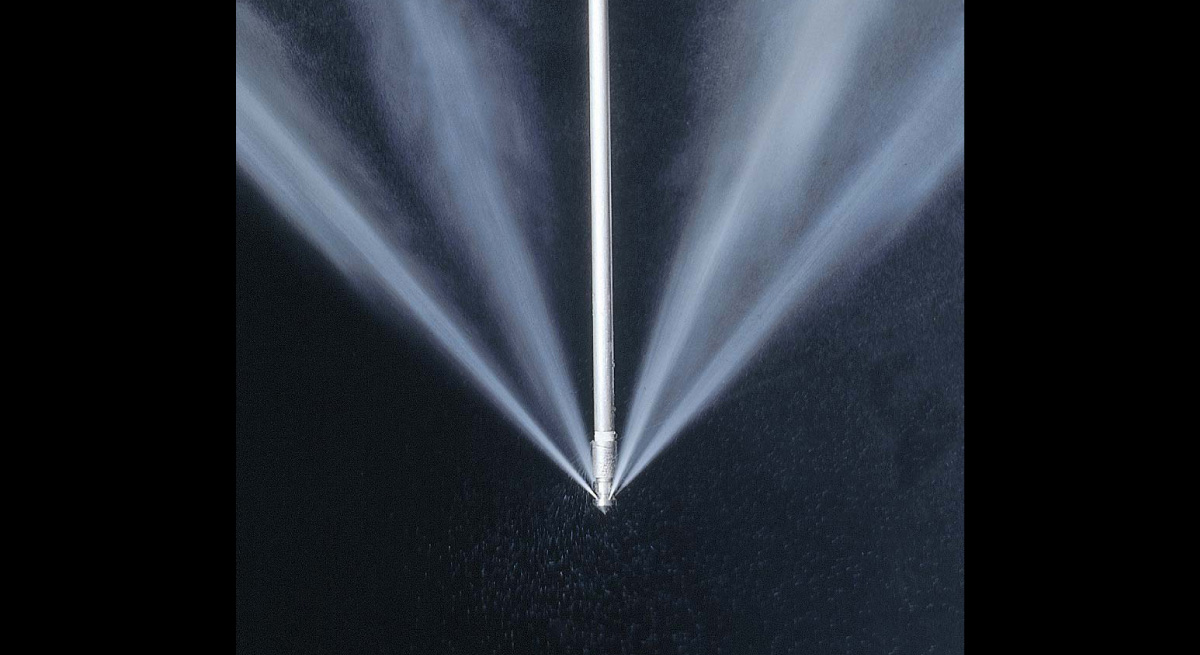

Spray nozzles for pipe cleaning, utilizing their spray reaction forces for self-propulsion within a pipe, thoroughly clean inside of pipes with multiple solid stream jets.
Multiple spray orifices can be optionally positioned in the forward, side, and diagonal rear directions of the nozzle.
Specs
| Liquid Inlet Thread Size | R1/8, R1/4, R3/8, R1/2 |
|---|---|
| Main Material | S303 |
| Spray Capacity (Flow-rate) | 14–331 L/min |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• Cleaning inside pipes and tubes, moving itself by means of spraying solid stream jets in different directions as driving force.
• High impact jets effectively remove scale and dirt inside pipes.
Applications
- Cleaning: Pipes, drains, water and wastewater pipes, tubes of heat exchangers and cooling machines
- Others: Removing scale and rust
Industries where this nozzle is used
- Pollution control
Structure
- One-piece structure, made of metal.
