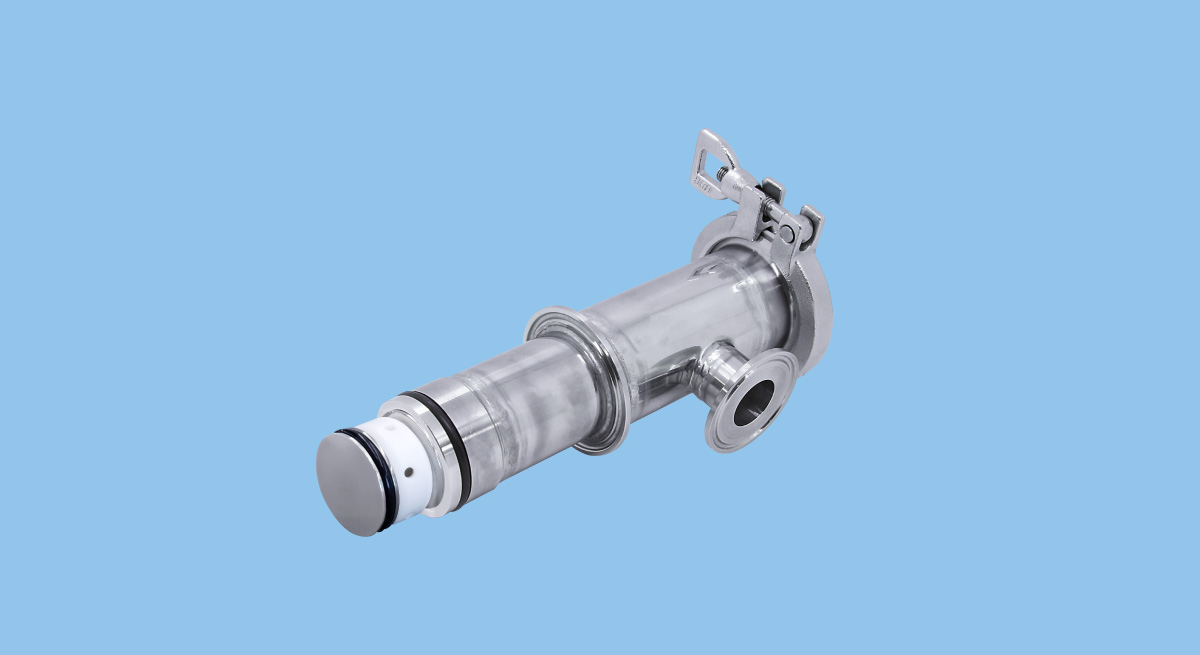

Pressure-open Nozzle
RJ2-PON
ROTARY JETTER Series: a pressure-activated nozzle that extends the nozzle tip when liquid pressure is applied and retracts it when the pressure stops, designed for inner-wall cleaning.
Suitable for permanent installation, with the nozzle closing flush with the inner wall when not in use.
Additionally, it rotates solely by the force of the cleaning liquid, eliminating the need for external power, and can be used at relatively high temperatures.
Specs
| Weight | 0.75 kg or 1.3kg |
|---|---|
| Main Material | S304, PTFE, FKM, silicon rubber |
| Max. Temperature | 80℃ |
| Reach Distance of Spray | 3,500–5,000mm |
| Operating Pressure for Liquid | 0.2–0.5 MPa |
| Spray Capacity (Flow-rate) | 24.8–100.4 L/min *1 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Spray sflow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
RJ2-PON30: 24.8–37.6 L/min
RJ2-PON40: 33.1–50.2 L/min
RJ2-PON60: 49.7–75.3 L/min
RJ2-PON80: 66.3–100.4 L/min
Note: Short pipe, ferrule flange and clamp which are required for the installation in a tank are to be supplied by customer.
Resources for Download
• Pressure opening nozzle: an interior wall cleaning nozzle that opens/closes by liquid pressure.
• Unique mechanism: the nozzle tip protrudes and rotates for cleaning only when activated by liquid pressure.
• Powerfully cleans the inside of ducts and tanks.
• Suitable for permanent installation as the nozzle closes flush with the inside surface of the duct or tank when not cleaning.
• Easy to install and remove with ferrule.
Applications
- Tank cleaning
- Duct cleaning
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food & beverages
- Medical
