Pulse Spray Nozzles

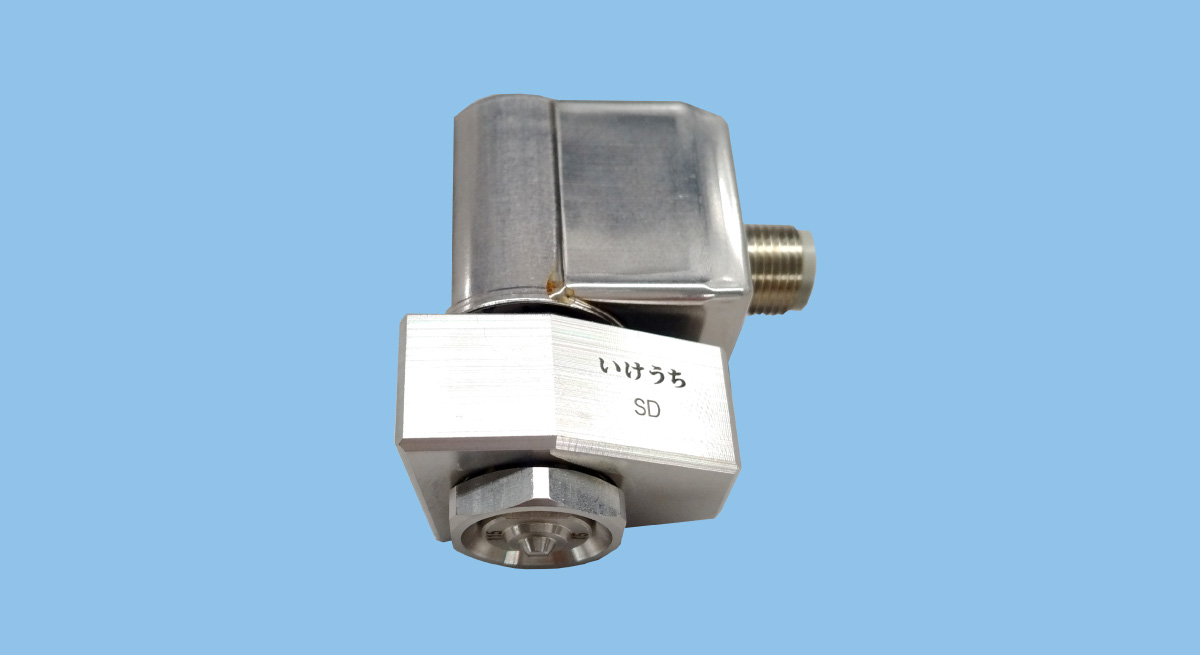

SD-VV

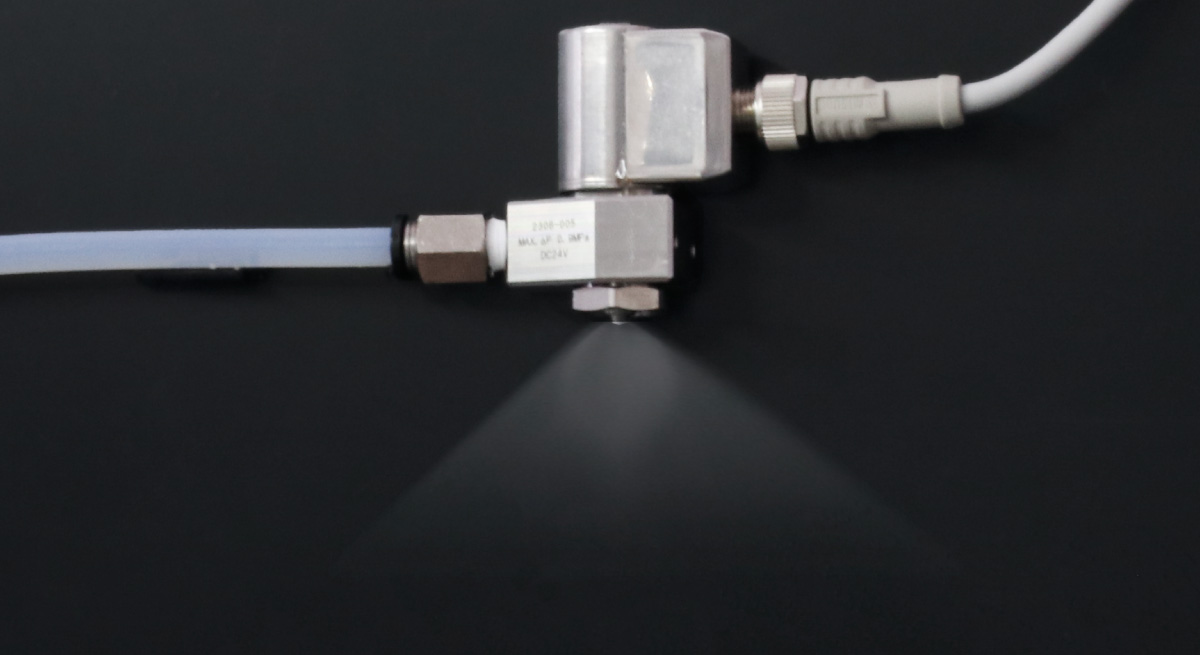

This solenoid-controlled spray nozzle achieves intermittent pulse spraying with a minimum duration of 0.05 seconds, delivering a small amount of 0.17 cc per shot. It is particularly suitable for applying a small amount of oil or chemicals, as well as for marking purposes, due to minimal splatter during spraying. The nozzle complies with the IP67 standard for dust and waterproof protection.
Additionally, it uses materials that comply with the Food Sanitation Act in Japan in the solenoid's liquid-contact parts.
Furthermore, the SD-V series, featuring a ceramic orifice, provides excellent resistance to chemicals and wear, and the SETO-SD series, a pneumatic type that utilizes compressed air, offers a lower spray capacity; both are available.
*Protection structure: IP67
*Materials that comply with the Food Sanitation Act in Japan are used in the solenoid's liquid-contact parts.
Specs
| Liquid Inlet Thread Size | Rc1/8 |
|---|---|
| Weight | 220g |
| Main Material | S303 |
| Max. Temperature | 60℃ |
| Spray Droplet Measuring Method | Immersion sampling method |
| Fog Classification | Semi-coarse mist, Semi-fine mist |
| Mean Droplet Diameter | 180–540 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.48–1.33 L/min |
| Spray Angle at Standard Pressure | 13 - 114° |
*) Protection structure: IP67
*) Materials that comply with the Food Sanitation Act in Japan are used in the solenoid's liquid-contact parts.
Resources for Download
• Controls the spray ON/OFF with electrical signal ON/OFF. Intermittent spray with min. 0.05 sec/ shot and as little as 0.17 cc/shot is possible.
• Ideal for applying a small amount of coating or marking with minimal splatter, saving liquid used.
• Changing the spray ON/OFF time setting can adjust the spray flow rate while maintaining the spray pattern and droplet size.
Applications
- Coating: Water, oil, lubricant, insecticide, herbicide, aqueous solution
- Moisture control: Paper, food
- Cooling: glass plate
Industries where this nozzle is used
- Electronics
- Machinery
- Paper & Pulp
- Printing
- Food
- Structur
Structure
- Includes a nozzle tip, cap, and adaptor-solenoid section. Nozzle tips can be replaced for wear or changed to achieve a different spray capacity and angle.
