Slit Nozzles for Liquid Spraying
SLNH-H

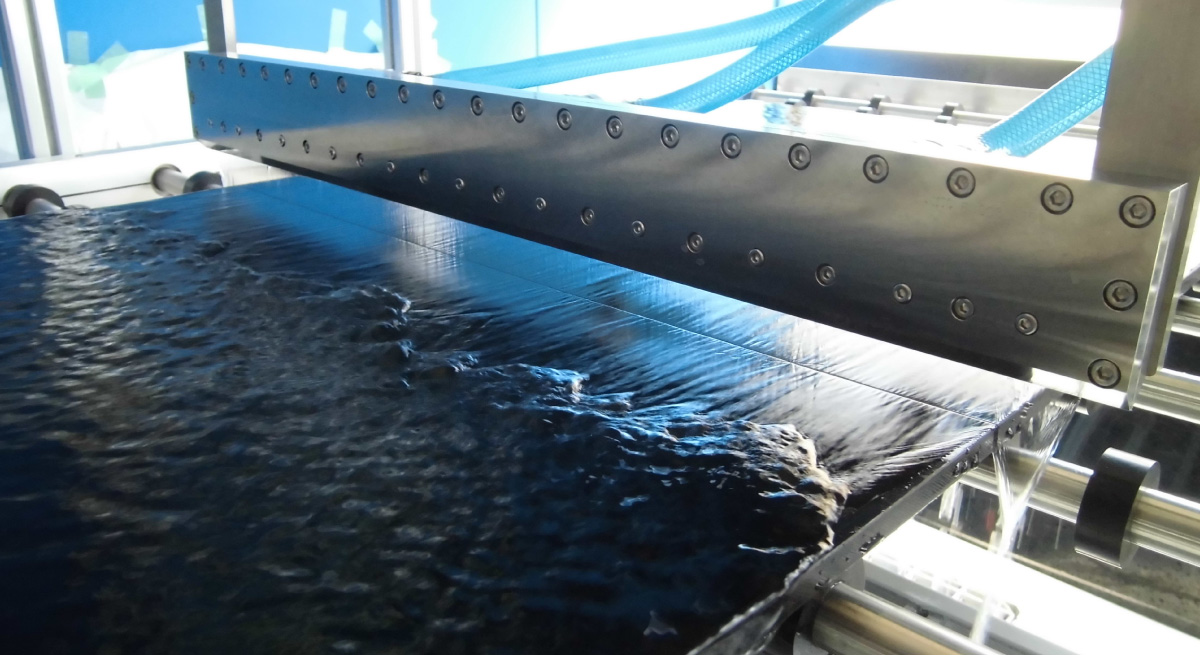

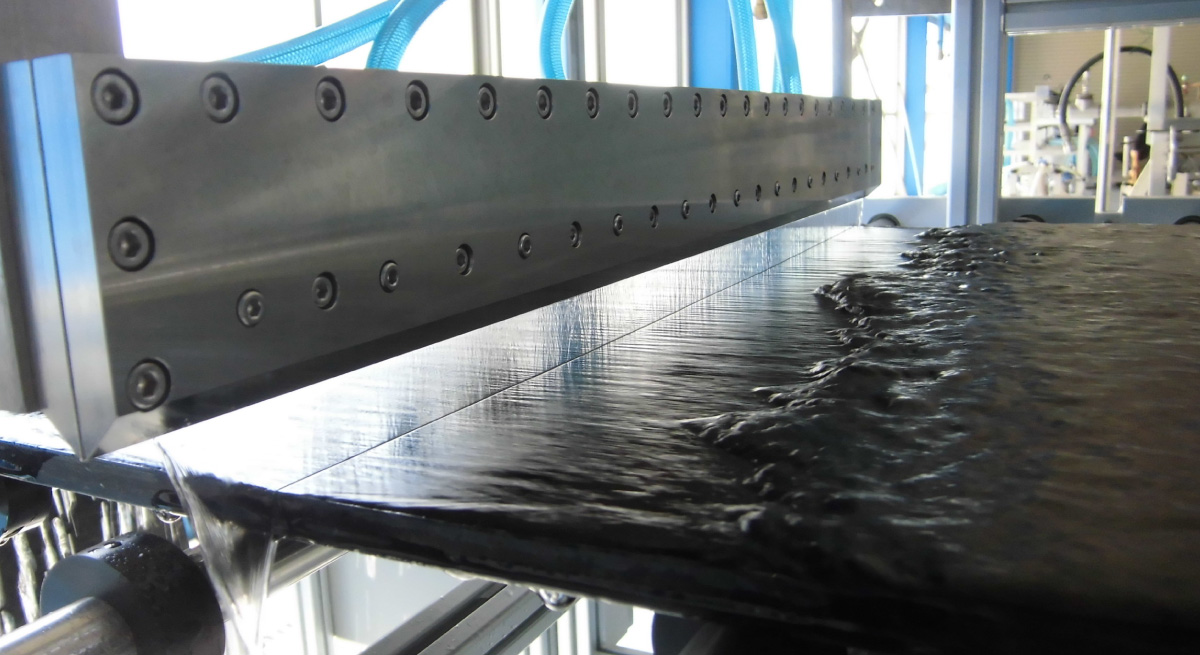

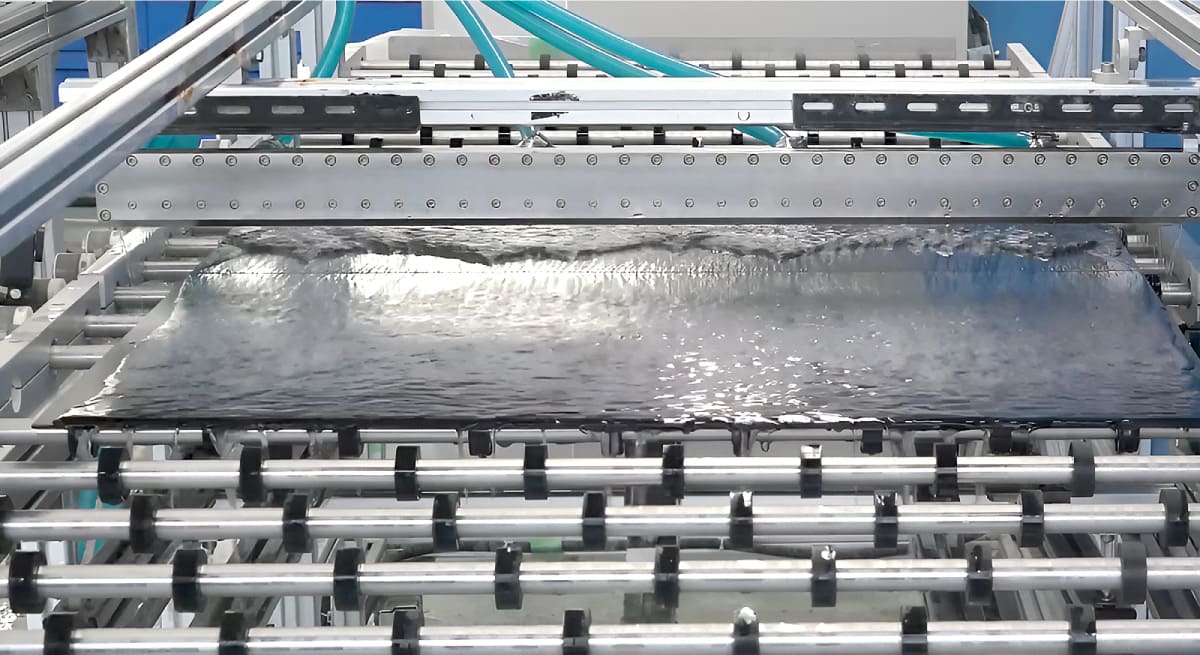

Long slit nozzles, also known as water knife nozzles or water curtain nozzles, produce an even spray distribution in the width direction. They produce a thin, laminar flow of liquid, which helps in reducing the consumption of chemical liquids and purified water, leading to cost savings.
Specs
| Liquid Inlet Thread Size | Rc3/8, Rc1/2 |
|---|---|
| Mounting Thread Size | M5 depth 8, M5 depth 10 *1 |
| Main Material | S304 or PVC |
| Slit Length | 460–1,200 mm *2 |
| Slit Opening | 0.1–0.3 mm |
| Spray Capacity (Flow-rate) | 17.8–46.4 L/min *3 |
| Spray Width | 410–1,150 mm *4 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Screw size: M5 depth 8 mm for S304, M5 depth 10 mm for PVC.
*2) S304: Customizable total length from 250 mm to 3,950 mm.
PVC : Customizable total length from 250 mm to 2,950 mm.
*3) at 0.05 MPa, for the slit length from 460 to 1,200 mm and slit opening of 0.1 mm
*4) Effective liquid film width at 10 mm height for slit lengths from 460 to 1,200 mm
Resources for Download
• Water sprayed from slit nozzle is uniform in width direction.
• For liquid spraying with even spray flow distribution.
• Thinner liquid film spray saves cost of chemicals and water.
• Compact and space-saving design.
Applications
- Blowing off drying
- Cleaning
- Developing
- Etching
Industries where this nozzle is used
- Electronics
- Automotives
