Long, Flat Air Nozzles
TF-PF

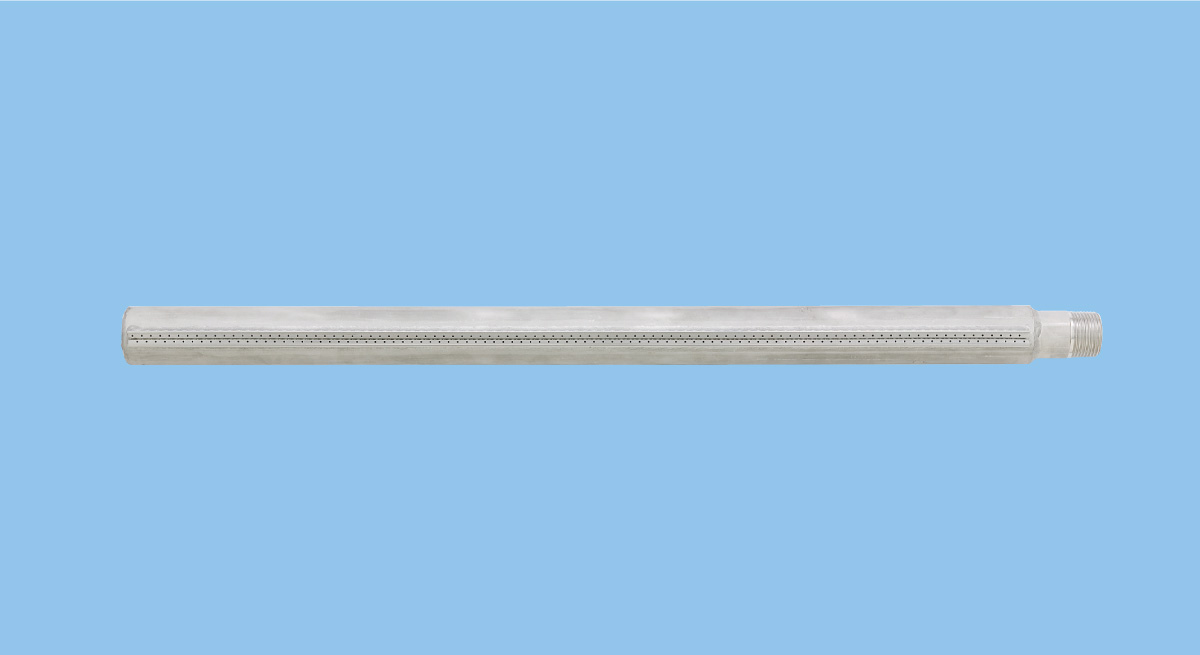

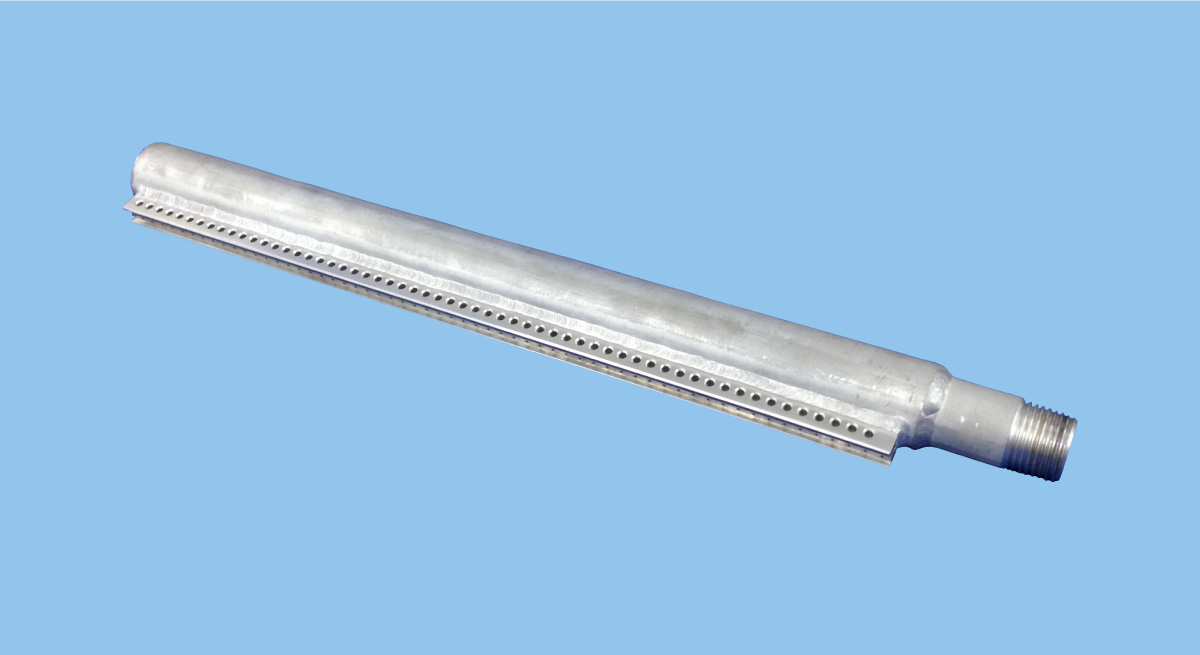

TAIFUJet Series: long, flat air booster nozzles that uniformly cover wide areas, available in different blowing widths ranging from 100 mm to 1,400 mm in 100 mm increments.
Specs
| Air Inlet Thread Size | R1/2–R1*1/2 |
|---|---|
| Main Material | S304 |
| Air Supply | Compressed air |
| Max. Operating Pressure | 1.0 MPa |
| Max. Temperature | 400℃ |
| Noise Level | 84 dBA or more *1 |
| Air Consumption | 1,150–15,100 NL/min *2 |
*1) 84 dBA or more at 0.3 MPa
*2) 1,150–15,100 L/min, Normal at 0.3 MPa
Resources for Download
• Long flat air booster nozzle suitable for installation in confined spaces.
• The unique design creates a uniform and efficient air flow distribution.
• Available in 13 different sizes covering a blow range from 100 to 1,400 mm in length.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off dust/paint dust/debris, Blowing off inferior products (rejection of inferior products)
- Cooling: Pinpoint cooling for molded plastic Others: Detachment, Cleaning, etc.
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
Structure

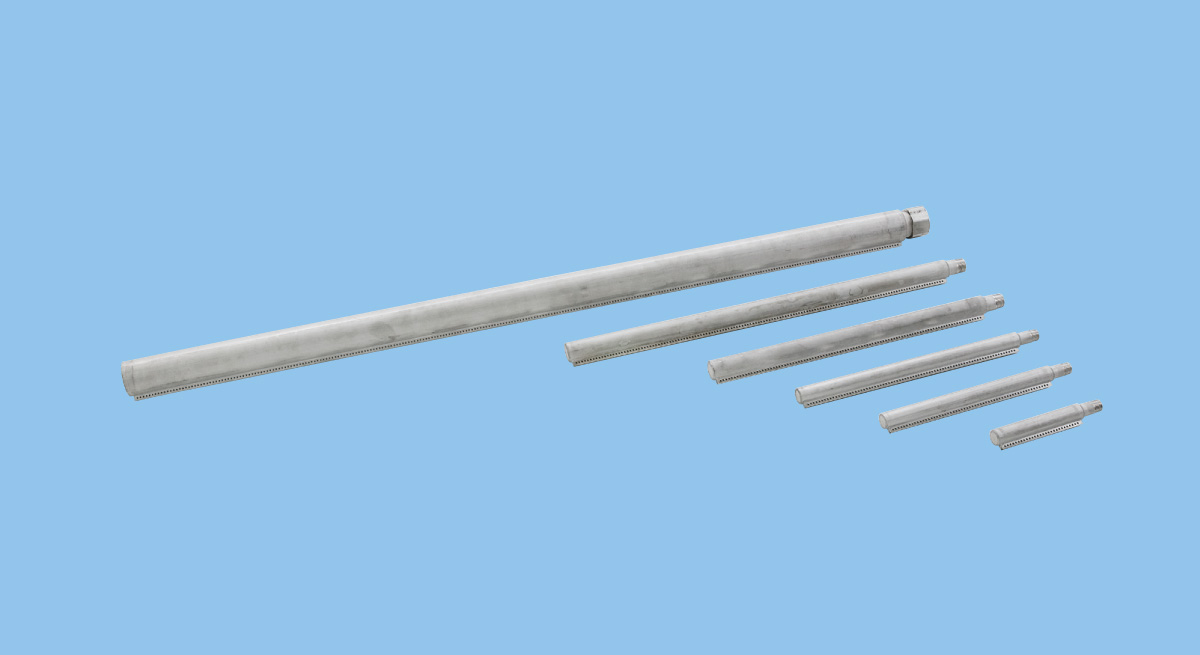

- Available in 13 different sizes covering a blow range from 100 to 1,400 mm in length. Starting at 500 mm in length there is an option for one or two inlets, one on each end.
