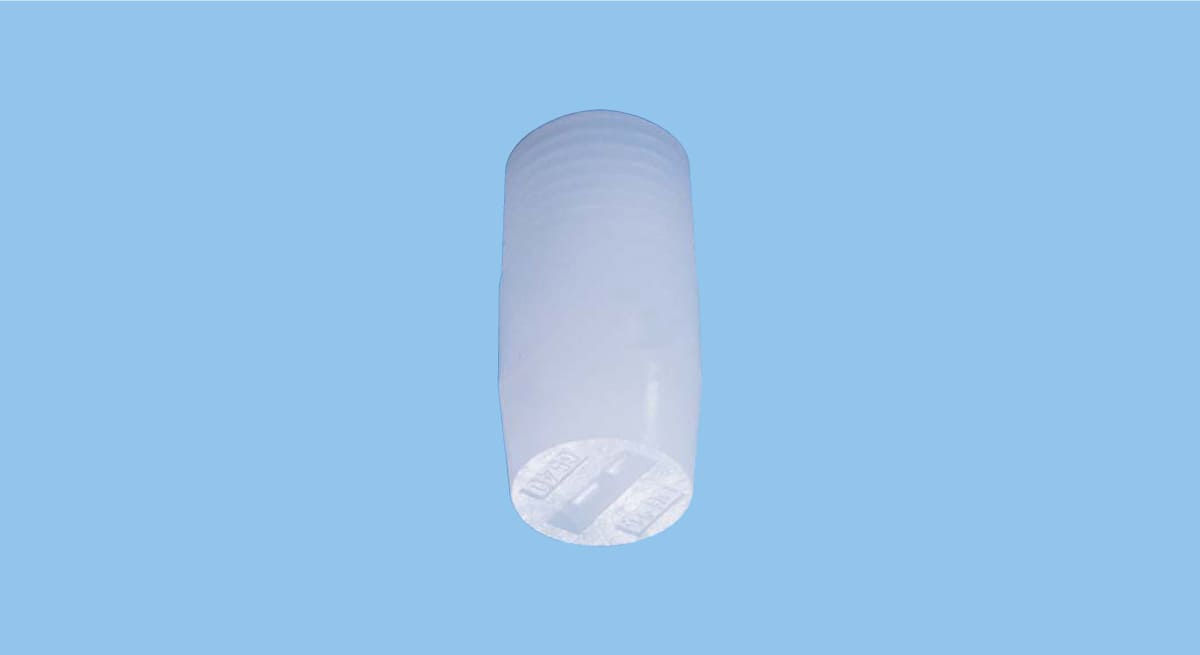

Spray Nozzles for Spraying Abrasives
UVVP
Hydraulic flat spray nozzles made of ultra-high-molecular-weight polyethylene with high wear resistance for spraying abrasives.
Specs
| Liquid Inlet Thread Size | R1/4 |
|---|---|
| Main Material | Ultra-high-molecular-wight polyethylene (UPE) |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 300–360 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 4.00–5.00 L/min |
| Spray Angle at Standard Pressure | 65º |
Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download

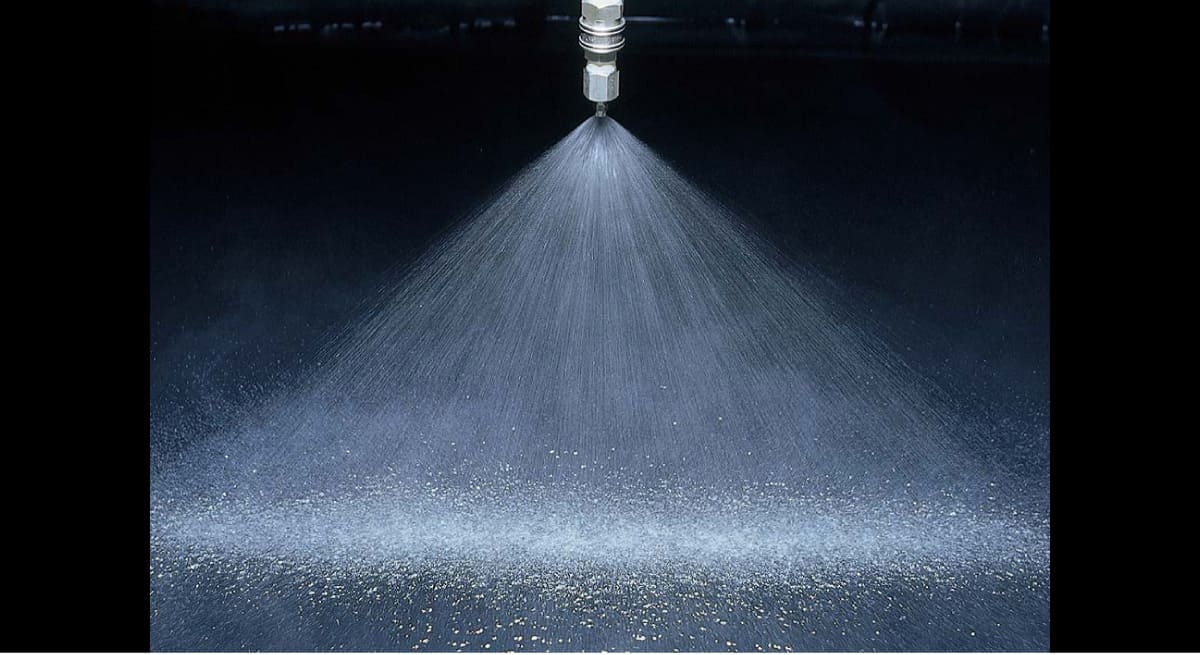

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• UVVP series made of ultrahigh molecular weight polyethylene features high wear resistance and keep stable performance as polishing nozzles over prolonged use.
Applications
- Polishing: Liquid honing, through-hole
- Others: Cleaning, spraying, cooling
Industries where this nozzle is used
- Machinery
- Electronics
Structure
- Simple one-piece structure.
