Flat Spray Nozzles
VVP
Hydraulic flat spray nozzles with a mountain-shaped spray distribution. In a multi-nozzle arrangement, overlapping their tapered edges provides a uniform spray distribution across the entire spray width.
Specs
| Liquid Inlet Thread Size | R1/8, R1/4, R3/8, R1/2, R3/4, R1 |
|---|---|
| Main Material | S303, PP, PVDF |
| Spray Droplet Measuring Method | Immersion sampling method |
| Mean Droplet Diameter | 150–1,100 μm |
| Standard Pressure | 0.3 MPa |
| Spray Capacity (Flow-rate) at Standard Pressure | 0.20–150 L/min |
| Spray Angle at Standard Pressure | 15°, 25°, 40°, 50°, 65°, 80°, 90°, 115° |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
Resources for Download
• One-piece structure, made of metal or plastic.

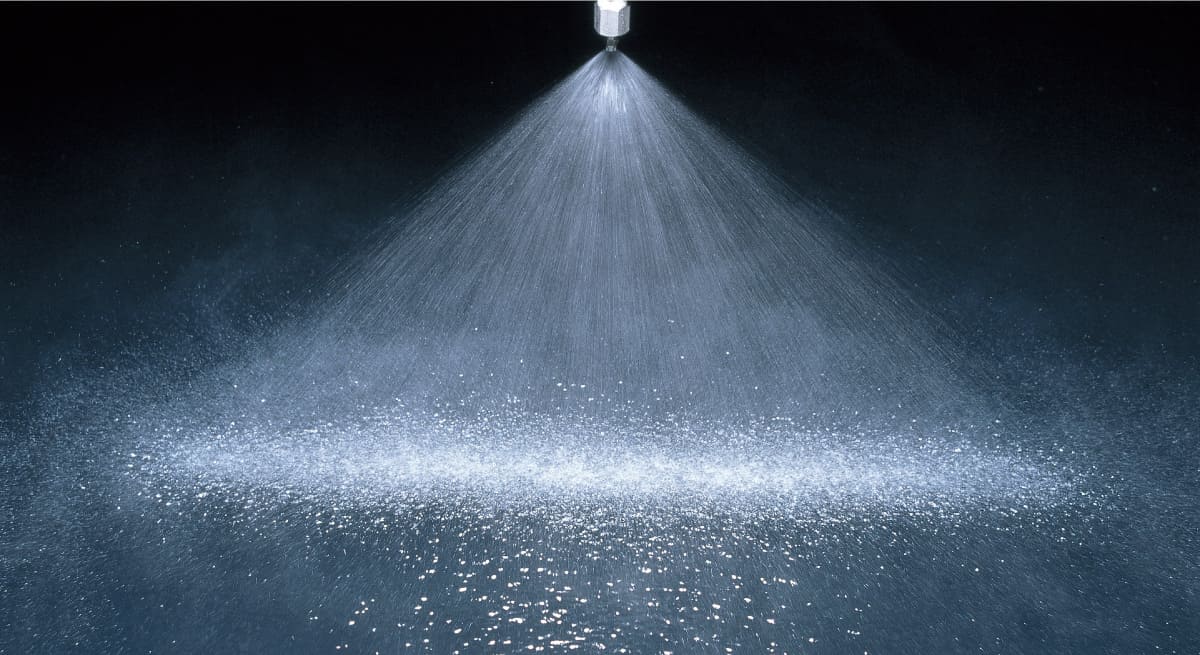

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• Tapered edges overlap to provide uniformity of spray distribution in multiple-nozzle arrangements.
Applications
- Cleaning: Automotives, containers, films, felts, filters, screens, bottles, crushed stones, earth and sand, metal parts, machines, steel plates and pieces
- Spraying: Etchants, oils, lubricants, glues, solutions, insecticides, herbicides
- Cooling: Gas, smokes, heat exchangers, tanks, steels, roofs
- Water screen: Fire protection, heat protection, dust suppression, deodorization
Industries where this nozzle is used
- Steelmaking
- Pollution control
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Agriculture
- Fisheries & Livestock
- Automotives
Structure

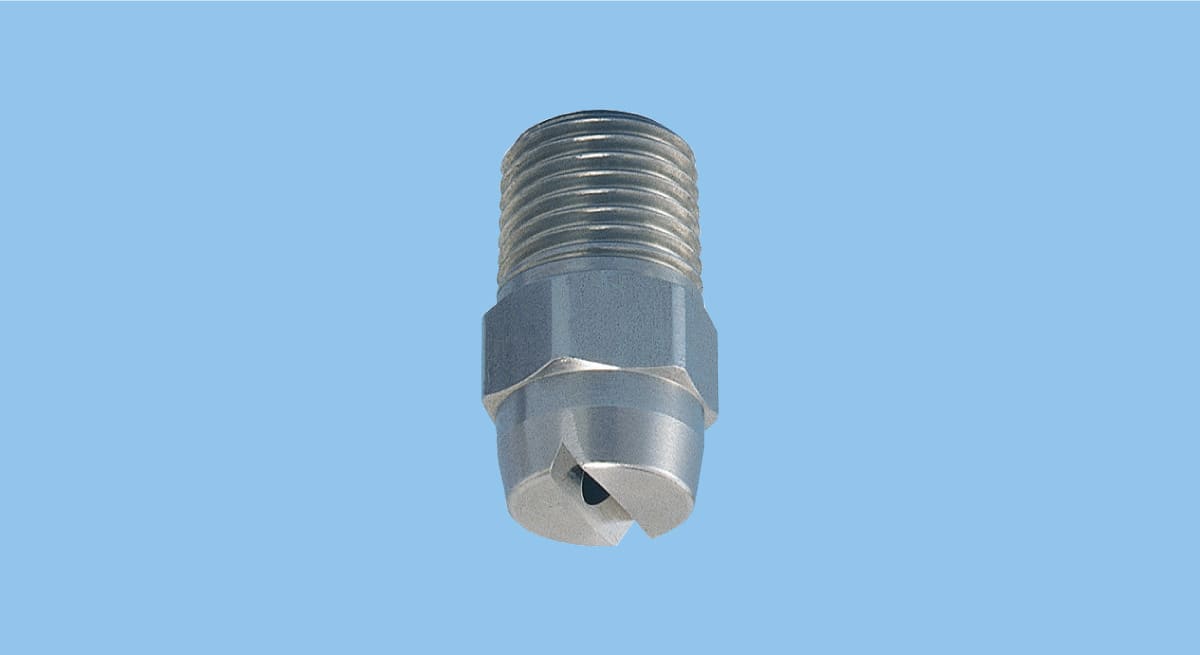

- One-piece structure, made of metal or prastic.
- Small spray capacity VVP nozzles made of metal come with or without a strainer.
