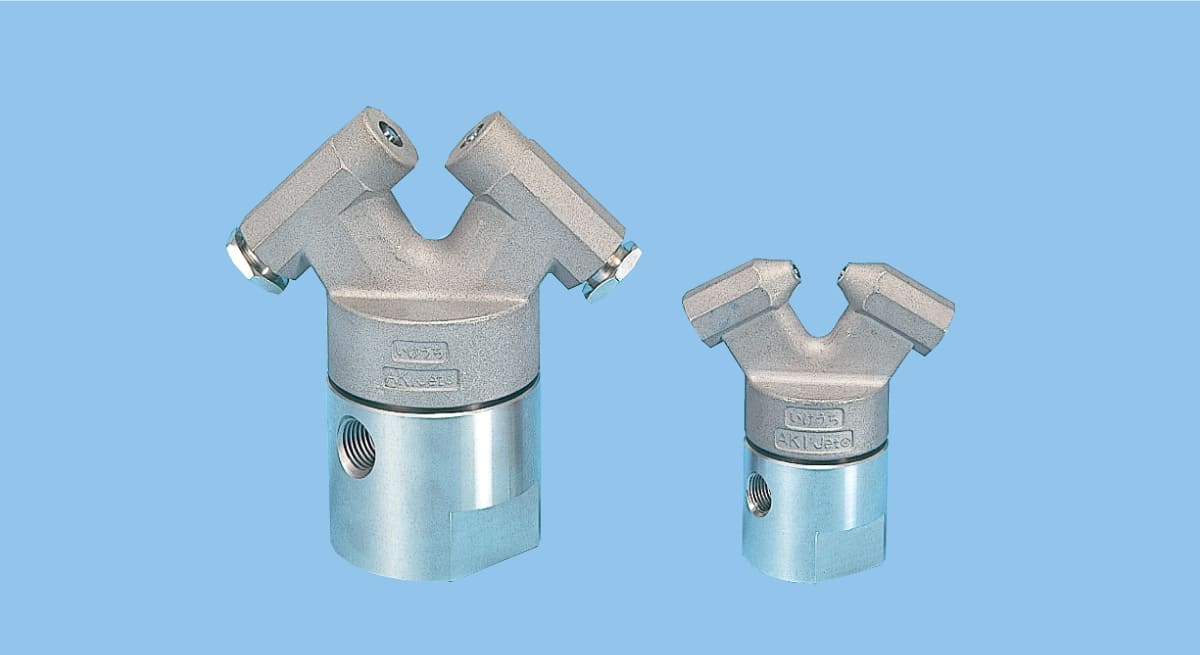

Impinging-type Fine Fog Nozzles
AKIJet
Pneumatic spray nozzles atomize liquid into droplets through internal mixing, then collide them with each other using ultrasonic waves generated thereby, further atomizing and homogenizing them.
Please note:
• This nozzle is available on a made-to-order basis only. Please contact us with details of your application before proceeding.
• For gas cooling applications, we recommend using the GSIM, BIM, or other suitable nozzle series.
• A minimum order quantity applies. Please contact us for more information.
Specs
| Main Material | S303 equivalent, S303, SCS14, S316 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | Internal Mixing Type & Impinging Type |
| Spray Droplet Measuring Method | Laser Doppler Method |
| Fog Classification | Dry Fog, Fine fog, Semi-fine fog |
| Mean Droplet Diameter | 10–120 μm *1 |
| Spray Capacity (Flow-rate) | 10–450 L/hr *1 |
| Spray Width | 140–780mm *1 |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) See the catalog for more details.
Resources for Download
3D CAD Models
Catalog
Instruction Manuals
Case Studies

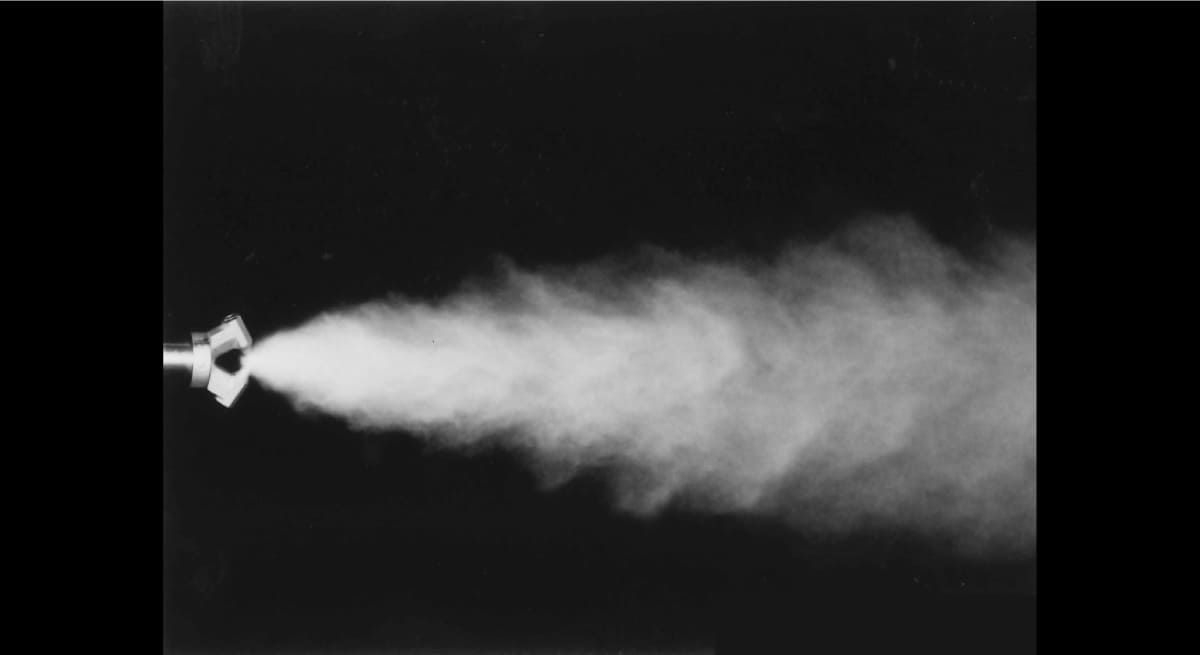

• Full cone spray pneumatic nozzle producing fine and semi-fine atomization.
• Atomized droplets are impinged against each other creating ultrasonic waves, which results in creation of a uniform distribution of even finer droplet sizes.
• Liquid siphon feed type (liquid pressure device is not required). Use with the liquid pressure device is also possible.
Applications
- Cooling: Gas, steel plates, refractories, moldings, glass
- Moisture control: Flue gas, concrete
- Combustion: Oil, waste water
- Others: Mixing two liquids, Spray drying
Industries where this nozzle is used
- Steelmaking
- Pollution Control
- Paper & Pulp
- Printing
- Automotives
