Ultra-compact, Low Flow Rate Full Cone Spray Nozzles SCBIMJ
High-performance pneumatic full cone spray nozzles, a further m…
- Compact
- Spray Control
- Applying
- Dust Suppression
- Industrial Cooling
- Moisture Condioning
- Spraying
Fine Fog, Flat Spray Nozzles
CBIMJ
A compact and low-flow-rate version of the fine fog full cone spray nozzle BIMJ Series.

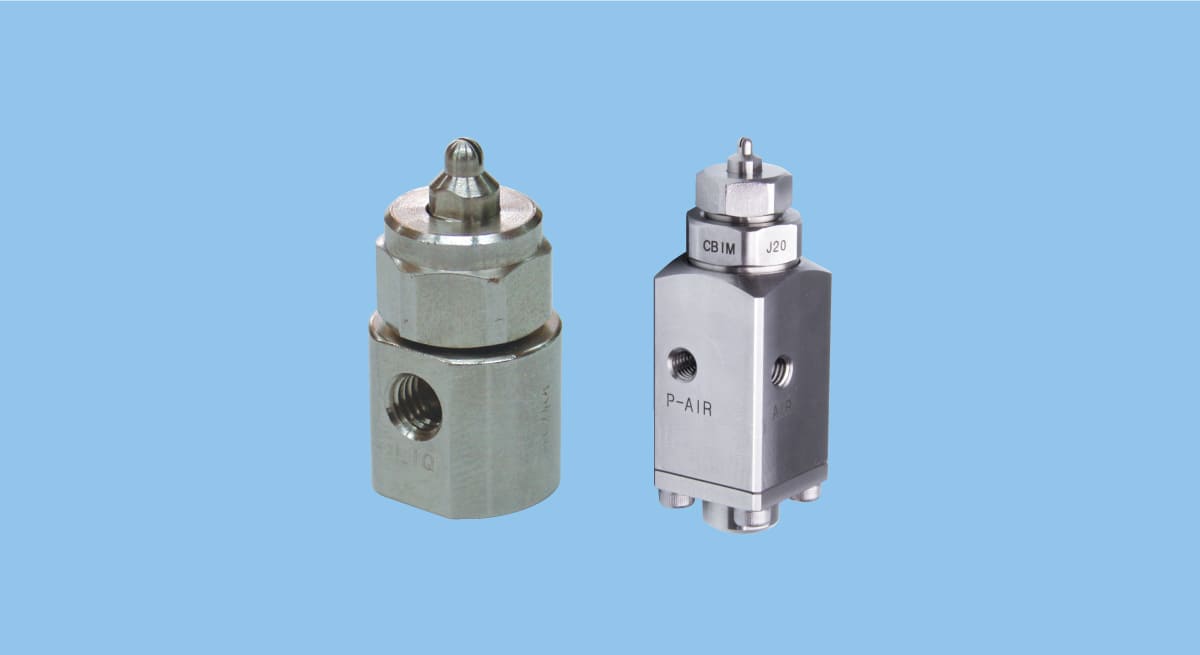

These nozzles can be mounted onto different adaptors depending on the intended purpose of use. (The left picture shows the nozzle with a T-type adaptor, while the right one shows it with a spray control adaptor.)
Specs
| Main Material | S303 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid pressure |
| Air-liquid Mixing System | Internal mixing inner air type |
| Spray Droplet Measuring Method | Laser Doppler Method |
| Fog Classification | Fine fog |
| Mean Droplet Diameter | 20–100 μm |
| Spray Capacity (Flow-rate) | 0.25–38.5 L/hr |
| Spray Angle | 20º *1 |
| Spray Width | 20–35 mm *2 |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) Spray angle measured at compressed air pressure of 0.3 MPa and liquid pressure of 0.1 MPa.
*2) Measured at spray distance of 100 mm from nozzle.
Note: Please refer to the catalog for detailed specifications including spray capacity (flow rate), mean droplet diameter, liquid and air inlet sizes.
Resources for Download
• Compact version of BIM series producing fine atomization. Space-saving design.
• Able to provide the lowest spray flow rate among all of our pneumatic spray nozzles.
• Clog-resistant design with a low parts count.
• Some CBIMJ models are available with a spray control adaptor, which can regulate spray ON/OFF with a built-in piston.
(See the PERFORMANCE DATA in the catalog below about the availability of adaptor for each model number.)
• CBIMJ series are full cone spray pneumatic nozzles producing fine atomization with a mean droplet diameter of 100 μm or less (*3).
• Features large turn-down ratio under liquid pressures of 0.1–0.3 MPa.
• Spray angle of 20ﾟ.
*3) Measured by Laser Doppler Method.
Applications
- Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, honey, insecticide, aqueous urea, etc.
- Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
- Moisture control: Paper, gas, ceramics, concrete, etc.
Industries where this nozzle is used
- Steelmaking
- Electronics
- Paper & pulp
- Printing
- Food
- Automotives
Structure
- Four-part structure: Nozzle tip, core, cap, and adaptor. See the catalog for details of adaptors.
