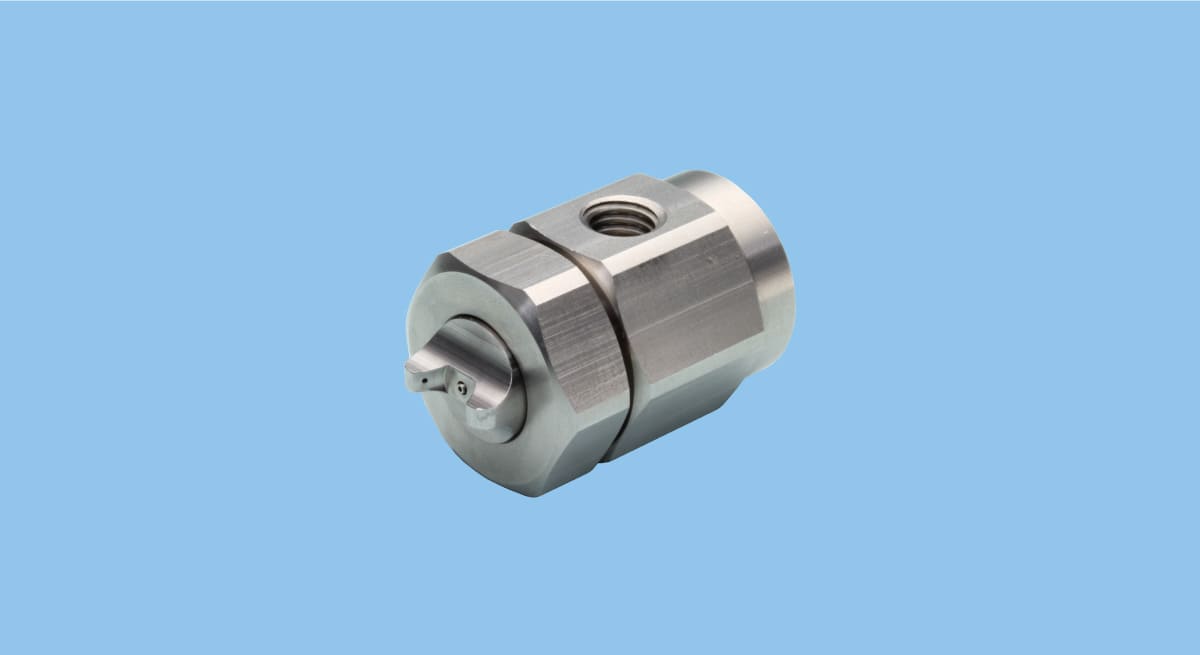

Spray Pattern Adjustable Nozzles SETOV-C
Spray nozzles of the external mixing type, which mixes air and …
- Clog Resistant
- Compact
- High-viscosity Liquid Spray
- Applying
- Moisture Condioning
- Spraying
Anti-dripping Flat Spray Nozzles
SETOV
Spray nozzles of the external mixing type produce fine droplets sprayed in a fan pattern, featuring a structure that minimizes liquid dripping when the spray shuts off. These nozzles can be operated either by liquid pressurization or liquid suction.
Specs
| Main Material | S303 |
|---|---|
| Air Supply | Compressed air |
| Liquid Feeding System | Liquid pressure, Liquid siphon |
| Air-liquid Mixing System | External mixing |
| Spray Droplet Measuring Method | Laser Doppler Method |
| Fog Classification | Fine fog |
| Mean Droplet Diameter | 15–40 μm *1 |
| Spray Capacity (Flow-rate) | 1.7–10.6 L/hr *2 |
| Spray Angle | 55º, 65º *1 |
| Spray Width | 95–130 mm *1 |
- Materials: Click here for full material descriptions, including chemical and heat resistance.
- Fog Classification: Based on spray droplet size. Click here for details.
*1) Spray angle, spray width, and mean droplet diameter measured at liquid pressure of 0 MPa (siphon height of 100 mm).
*2) Measured at compressed air pressure of 0.2–0.4 MPa, liquid pressure of 0 MPa (siphon height of 100 mm) and 0.02 MPa.
Please refer to the catalog for details.
Resources for Download
• Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 15–40 μm (*3).
• Spray capacity increases or decreases in proportion to the air pressure.
• No dripping from the nozzles at spray shut off.
• Liquid siphon feed type (liquid pressure device is not required). Use with the liquid pressure device is also possible.
*3) Measured by Laser Doppler Method.
Applications
- Humidification
- Disinfection
- Moisture control: Paper, cardboard
Industries where this nozzle is used
- Food
- Paper & Pulp
