2D Rotational Tank Cleaning Nozzles ES-PTFE
A lineup of chemical-resistant tank cleaning nozzles made of PT…
- 360º
- Cleaning

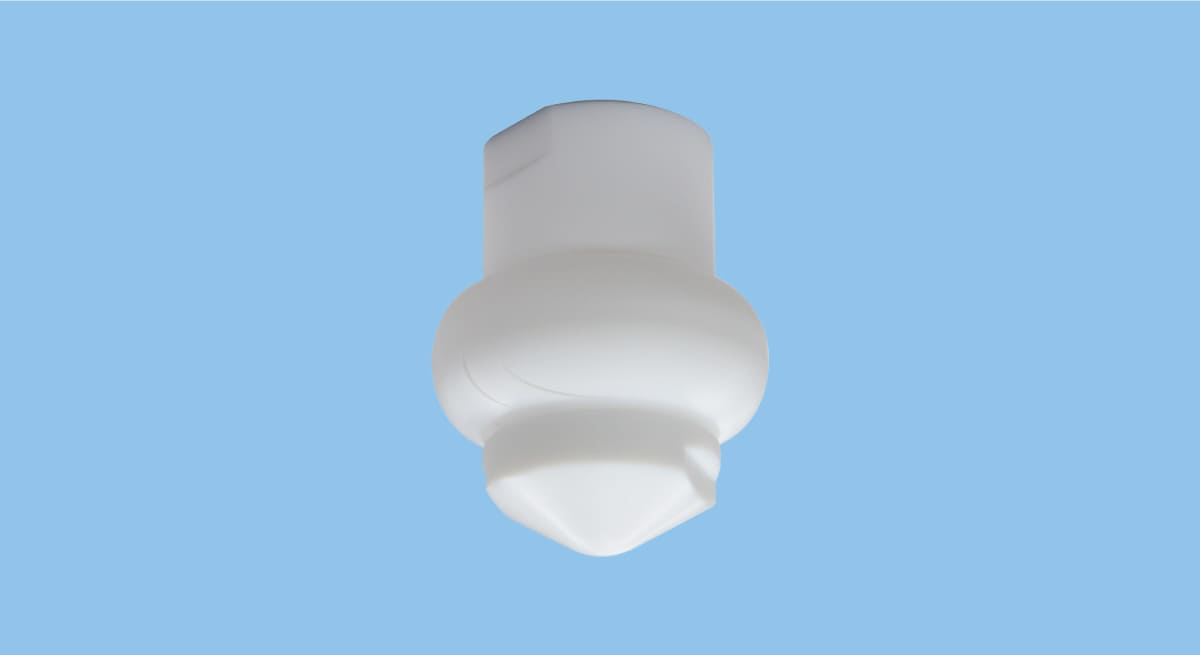

2D Rotational Tank Cleaning Nozzles
ESV-PTFE
Chemical-resistant tank cleaning nozzles made of PTFE with two-dimensional rotation capable of 360-degree cleaning.

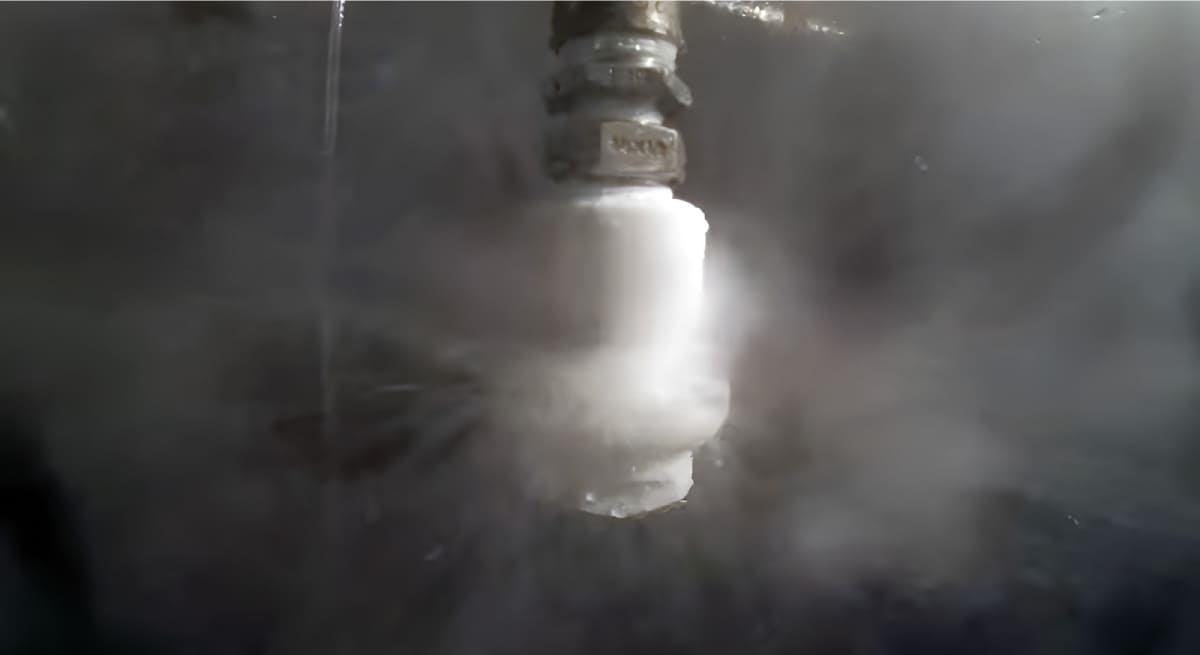

They rotate solely by the force of the cleaning liquid, eliminating the need for external power, and can be installed in any orientation including sideways, upward or other directions.
Specs
| Liquid Inlet Thread Size | Rc1/2, Rc3/4 |
|---|---|
| Weight | 130–180g |
| Main Material | PTFE |
| Max. Temperature | 93℃ |
| Reach Distance of Spray | approx. 1.1–4 m |
| Operating Pressure for Liquid | 0.05–0.5 MPa |
| Spray Capacity (Flow-rate) | 12.2–194 L/min *1 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Spray flow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
*) Nozzle Mounting Direction
Nozzle mounting direction to tank:
The ESV-PTFE Series can be installed in any direction, 360 degrees.
The data in this catalog are the values from top of the tank installations.
Resources for Download
• Made of PTFE, highly resistant to chemicals.
• Rotating flat spray pattern covers the entire surface in a tank.
• No external power is needed as rotation is driven solely by the flow of the cleaning liquid.
Applications
- For cleaning easy-to-remove dirt:
- Cleaning of chemical tanks, containers, filling machines, can be used with acid or alkali cleaner.
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
- Welfare
