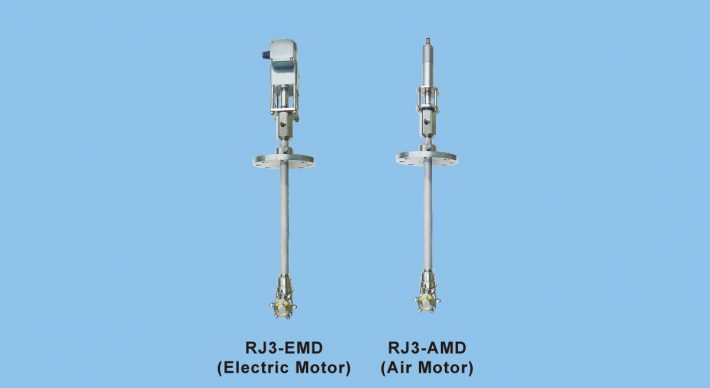

3D Rotational Tank Cleaning Nozzles RJ3-MD (with Air or Electric Motor)
Motorized tank cleaning nozzles with three-dimensional rotation…
- Made-to-Order
- 360º
- ROTARY JETTER
- Cleaning
3D Rotational Tank Cleaning Nozzles

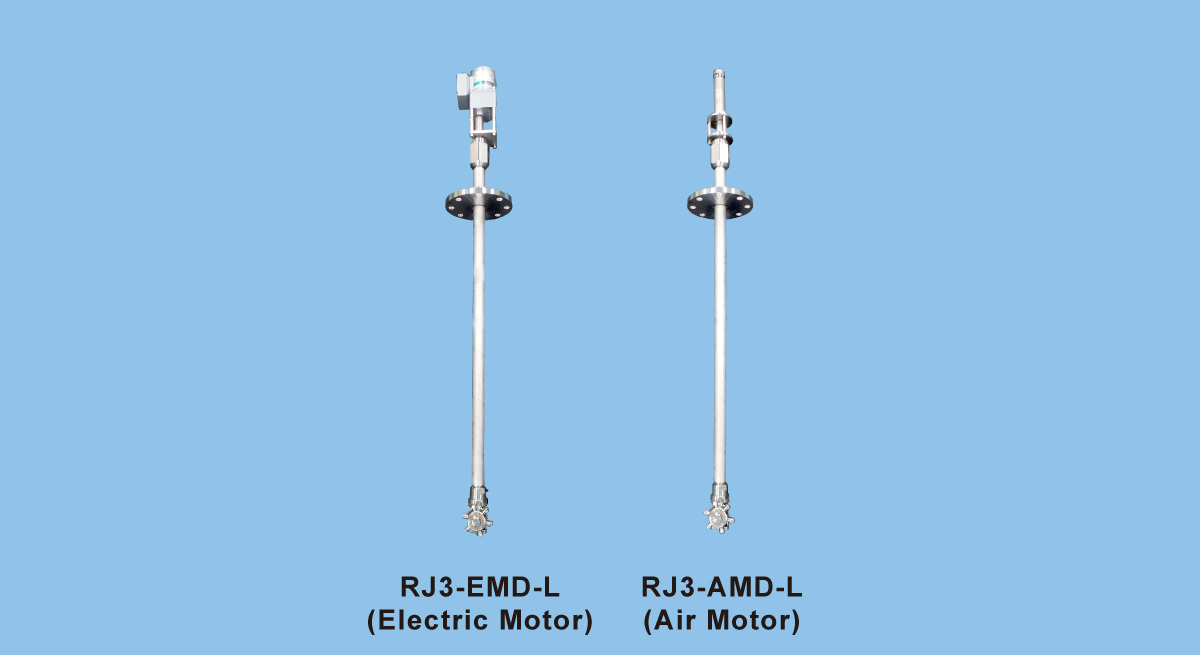

RJ3-MD-L (with Air or Electric Motor)
Motorized tank cleaning nozzles with three-dimensional rotation capable of 360-degree cleaning.
With stable low-speed rotation driven by an air or electric motor, they maintain directional stability and exert strong cleaning power, and can be used at relatively high temperatures.
Low-pressure version of our RJ3-MD Series.
Operating at just 0.1–2 MPa, it achieves 2–3 times the flow of the RJ3-MD models, delivering powerful, efficient cleaning even in low-pressure systems.
Specs
| Liquid Inlet Thread Size | Rc3/4 |
|---|---|
| Weight | RJ3-AMD-L: 11–16 kg, RJ3-EMD-L: 13–18 kg *1 |
| Main Material | S304, SCS14, Special PEEK, UPE (seal), FKM (O-ring) |
| Max. Temperature | 90℃ |
| Reach Distance of Spray | Approx. 4–6.5 m (RADIUS) *2 |
| Number of Nozzles Attached | 2, 3, or 6 |
| Operating Pressure for Liquid | 0.1–2.0 MPa |
| Spray Capacity (Flow-rate) | 7.9–139 L/min *3 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Without flange.
*2) Spray reach distance varies depending on the number of nozzles attached and the nozzle orifice diameter. Contact us for details.
*3) Spray flow rate in the above operating pressure range is for reference only. See the flow-rate diagram and chart for more details.
• 2 nozzles: 8.2–133 L/min
• 3 nozzles: 7.9–139 L/min
• 6 nozzles: 8.9–126 L/min
Power Voltage of RJ3-EMD-L (electric motor): 100 VAC
Power Consumption of RJ3-EMD-L: 25 W
Resources for Download
• 3D rotation solid stream jet powerfully cleans the inside of a tank.
• Stable low-speed rotation with motor maximizes contact time between cleaning surface and cleaning liquid for effective cleaning.
• Larger nozzle orifice diameters increase flow rate at low pressure (2 MPa or less), enabling powerful cleaning.
• Heat-resistant up to 90 deg. C (194 deg. F).
• Models come with two, three, or six nozzles for precision cleaning.
Applications
- Removing tough, sticky and stubborn dirt
- Cleaning of reactor vessels in chemical plants
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
