Shower Balls

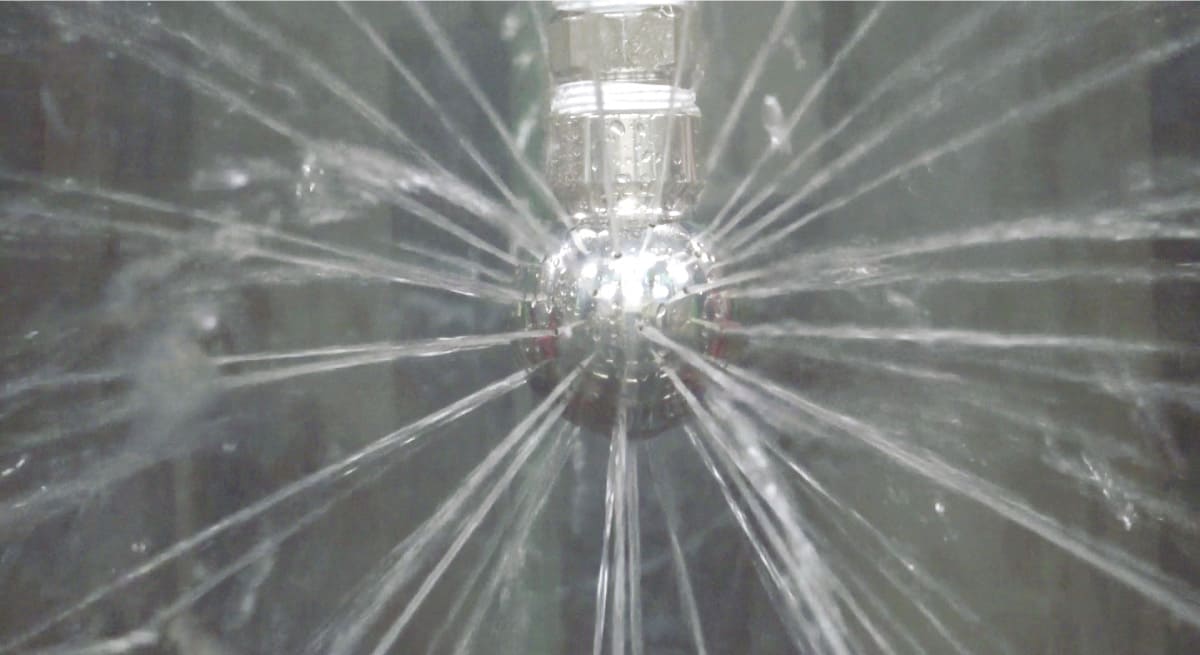

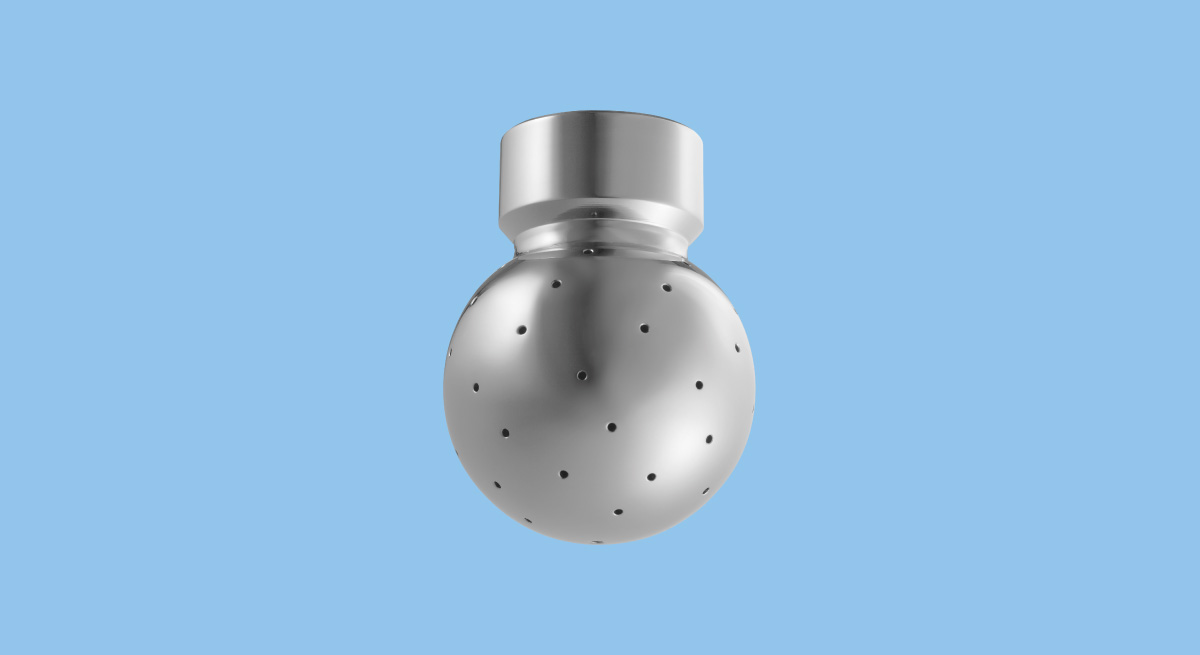

SWB (Shower Balls)
Shower balls with simple structures and no moving parts. The connection method for the water supply part is selectable between a screw type and a pin type. Additionally, they are available in PTFE material.
Specs
| Liquid Inlet Thread Size | Thread connection: Rc3/4–Rc2 |
|---|---|
| Inlet Size | Pin connection: φ21.7–φ50.8 |
| Weight | 90g–520g |
| Main Material | S316L |
| Max. Temperature | 400℃ *1 |
| Applicable Tank Size Diameter | About 450–3,750 mm |
| Operating Pressure for Liquid | 0.1–0.5 MPa |
| Spray Capacity (Flow-rate) | 35.4–395 L/min *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) 100°C (212°F) for SWB series made of PTFE.
*2) Spray flow rate in the above operating pressure range. See the flow-rate diagram and chart for details.
Resources for Download
• Simple structure. Non-rotating, compact cleaning nozzles for low- and medium-pressure use.
• Two types of connections available, threaded or pinned.
• Standard material: S316L. Also available in PTFE upon request.
Applications
- Tank cleaning
- vessel cleaning
Industries where this nozzle is used
- Chemical
- Paper & Pulp
- Printing
- Food
- Medicine
