Detergent Foam Spray Nozzles (Flat Spray Pattern) AWVV
Compressor-free hydraulic flat spray nozzles generate and spray…
- Compressor
- With Caster Wheels
- Cleaning
Detergent Foam Spray Nozzle Unit
AWA Cart

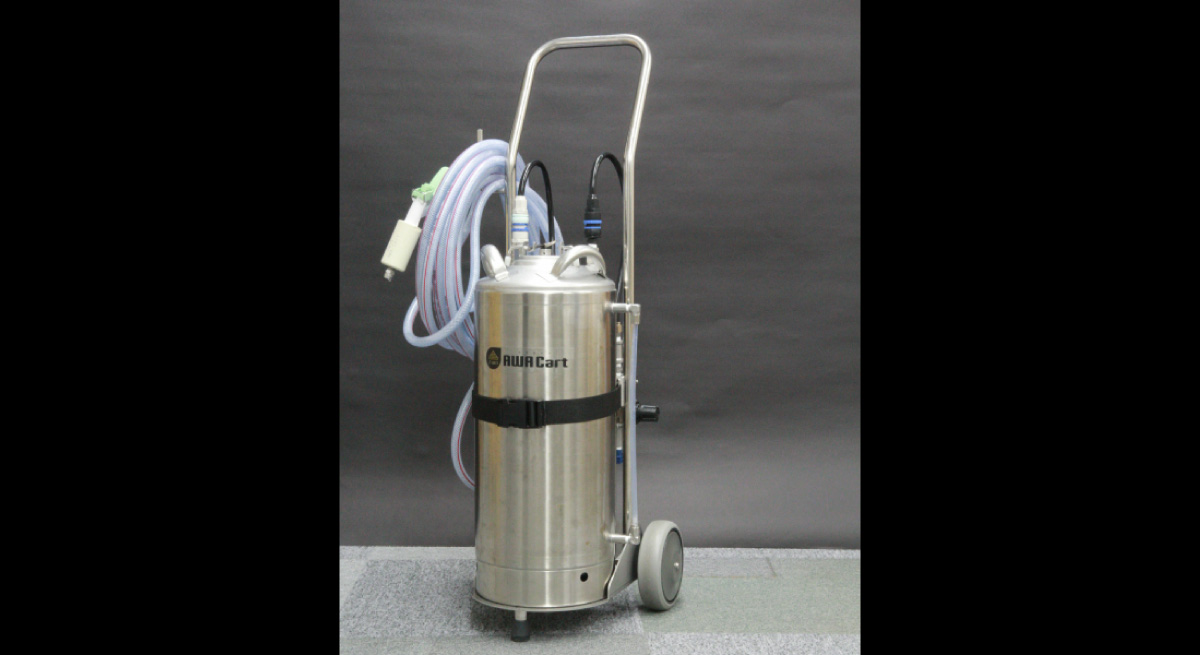

AWA Cart: a portable spray unit capable of converting detergent into foam and spraying it.
The unit can be adjusted to produce any of three types of foam properties: flowing, creamy, and mousse-like. Additionally, by replacing the nozzle tip, the spray pattern can be switched between a fan-shaped type (standard specification) and a straight type. The gun section for spraying is selectable either with the standard type or the long-handled lance type, depending on the application.
The photos of foam properties, flowing, creamy, and mousse-like, were taken when using a company's neutral detergent for dishware and vegetable use, diluted to 1%.
Specs
| Weight | approx. 13 kg (empty tank) |
|---|---|
| Main Material | S316L *1 |
| Air Supply | Compressed air |
| Reach Distance of Spray | 3.6 m *2 |
| Spray Capacity (Flow-rate) | 1.7 L/min *3 |
| Air Consumption | 22 NL/min *4 |
*1*2*3*4) See the catalog for more details.
Resources for Download
• A spray unit capable of converting cleaning agents into foam sprays.
• The AWA Cart can produce three types of foam: high density, medium density, and low density foam.
• Low-pressure foaming makes for less splattering.
• Compact unit design with low center of gravity provides high installation stability.
• Designed in a mobile cart format.
Applications
- Foam cleaning for food plants
- hospitals
- barns, etc.
Industries where this nozzle is used
- Food products
- Agriculture
- Livestock
- Automotive manufacturing
- Medicine
- Welfare
