Dry Fog Humidifier AKIMist "E"
An energy-saving pneumatic humidifier producing non-wetting "Dr…
- Dry Fog
- Pneumatic Humidification
- With Caster Wheels
- Dust Suppression
- Humidification
- Moisture Condioning
- Preventing Static Electricity
Portable Dry Fog Humidifier Set
AE-T Set

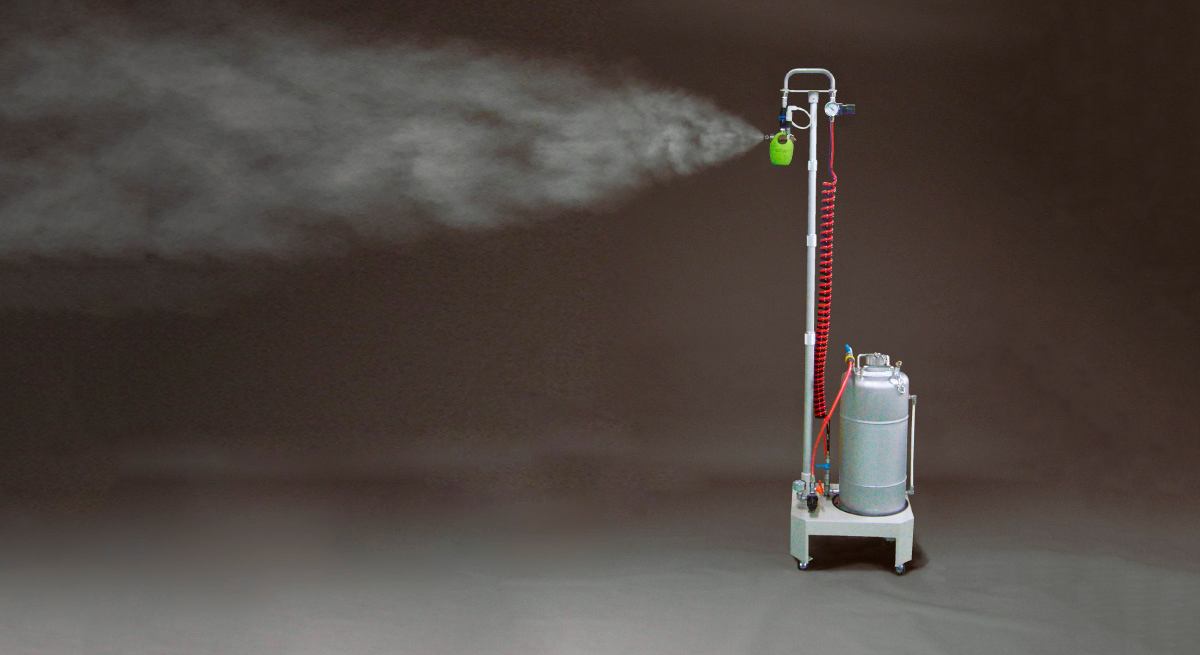

A portable humidifier unit, incorporating AKIMist-E Dry Fog humidifier, a water pressure tank, and a stand.
No plumbing work is required to install the Dry Fog humidifier; the unit can be placed and operated with ease by supplying compressed air. Equipped with caster wheels, it can be effortlessly installed in locations where humidification is desired.
Specs
| Weight | Approx. 13 kg (without water) |
|---|---|
| Mean Droplet Diameter | 7.5 μm *1 |
| Spray Capacity (Flow-rate) | 2.4–13.2 L/min (0.3 MPa) *2 |
| Air Consumption | 29–144 L/min (0.3 MPa) *3 |
*1) Nozzle type (at 0.3 MPa):
• 03C: 7.5μm
• 03B: 12 μm
• 04E: 10 μm
*2) Nozzle Performance (spray flow rate) at 0.3 MPa:
• 03C: 2.4–9.6 L/hr (1–4 nozzles)
• 03B: 3.3–13.2 L/hr (1–4 nozzles)
• 04E: 3.0–12.0 L/hr (1–4 nozzles)
*3) Air consumption at 0.3 MPa:
• 03C: 29–116 L/min, Normal (1–4 nozzles)
• 03B: 29–116 NL/min, Normal (1–4 nozzles)
• 04E: 36–144 NL/min, Normal (1–4 nozzles)
Note: Spray flow rate and air consumption vary depending on the type of nozzle, the number of nozzles installed, and the compressed air pressure.
Resources for Download
• Portable pneumatic humidifier set with energy-saving humidifiers producing Dry Fog.
AE-T set includes Dry Fog humidifier AKIMist “E”, stand unit, and water pressure tank, etc.
• Professional installation is not required. Possible to use immediately by simply connecting the air supply.
• Ideal for humidifying in a small, focused area, or when installing for a limited period of time.

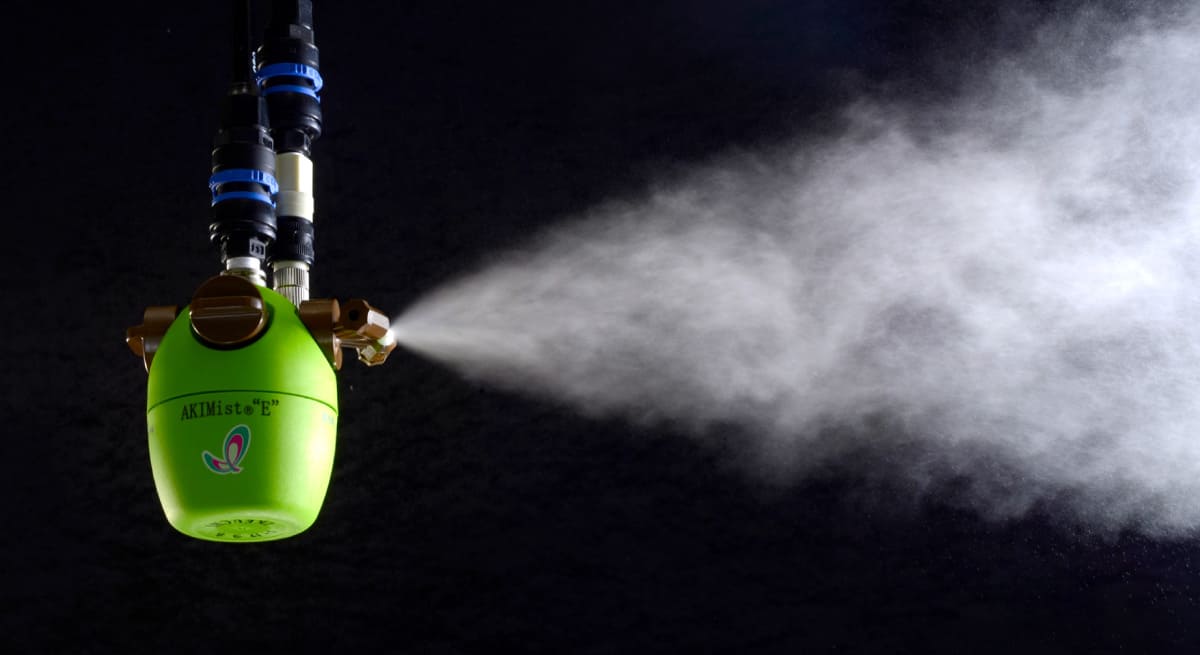

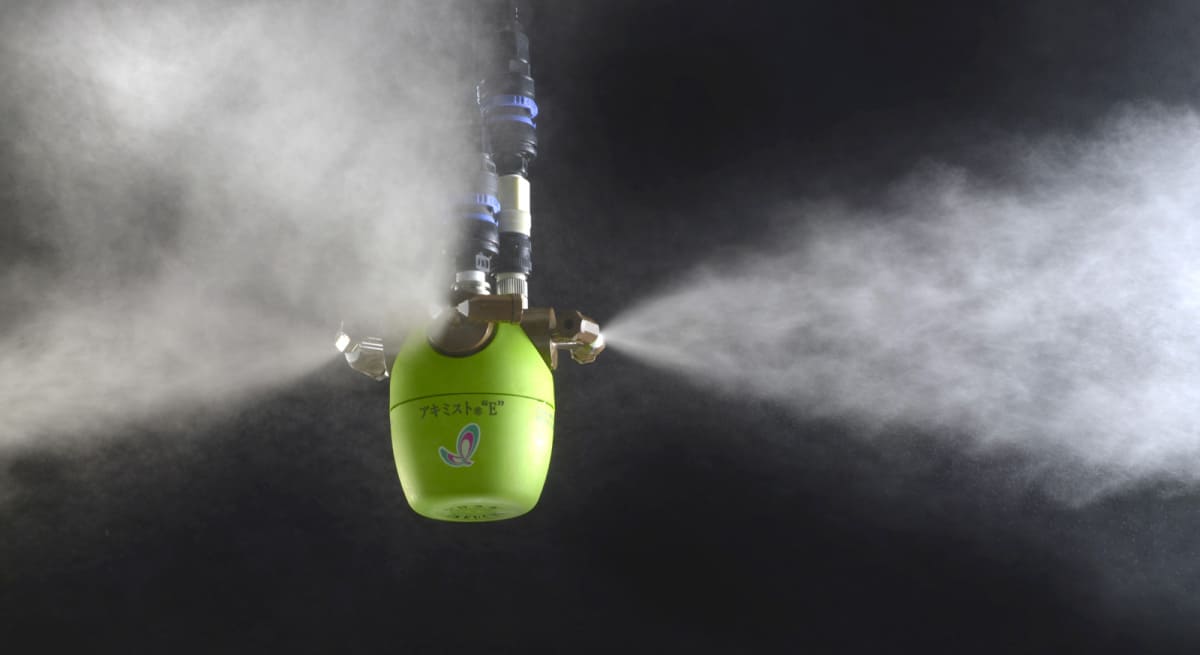

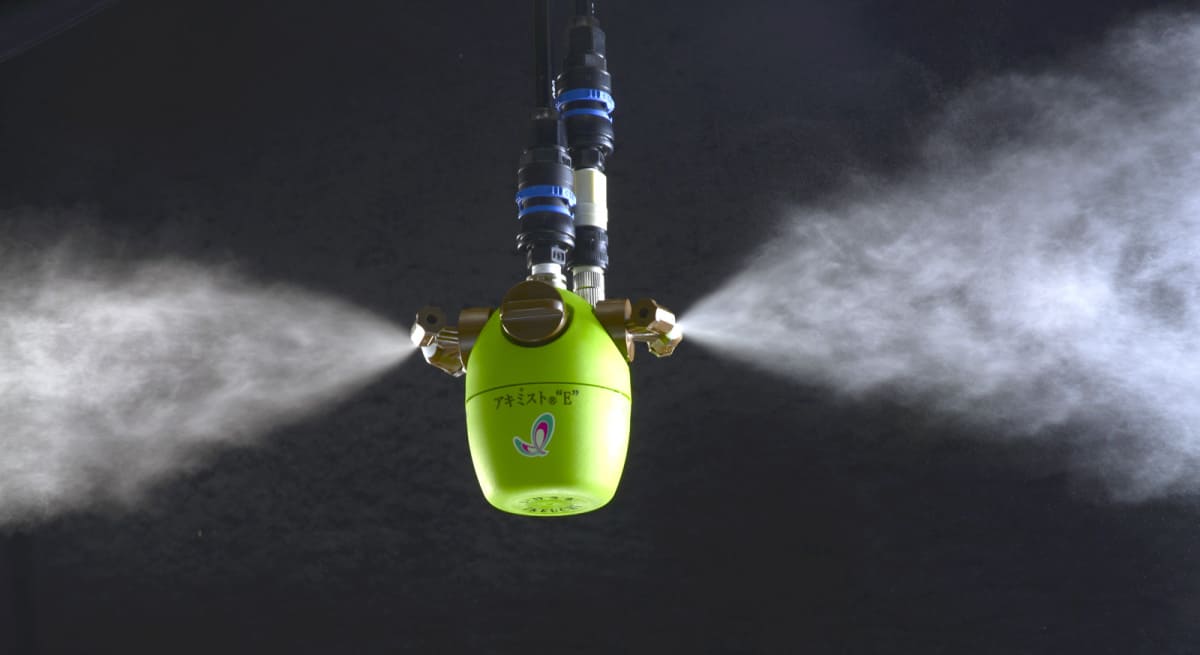

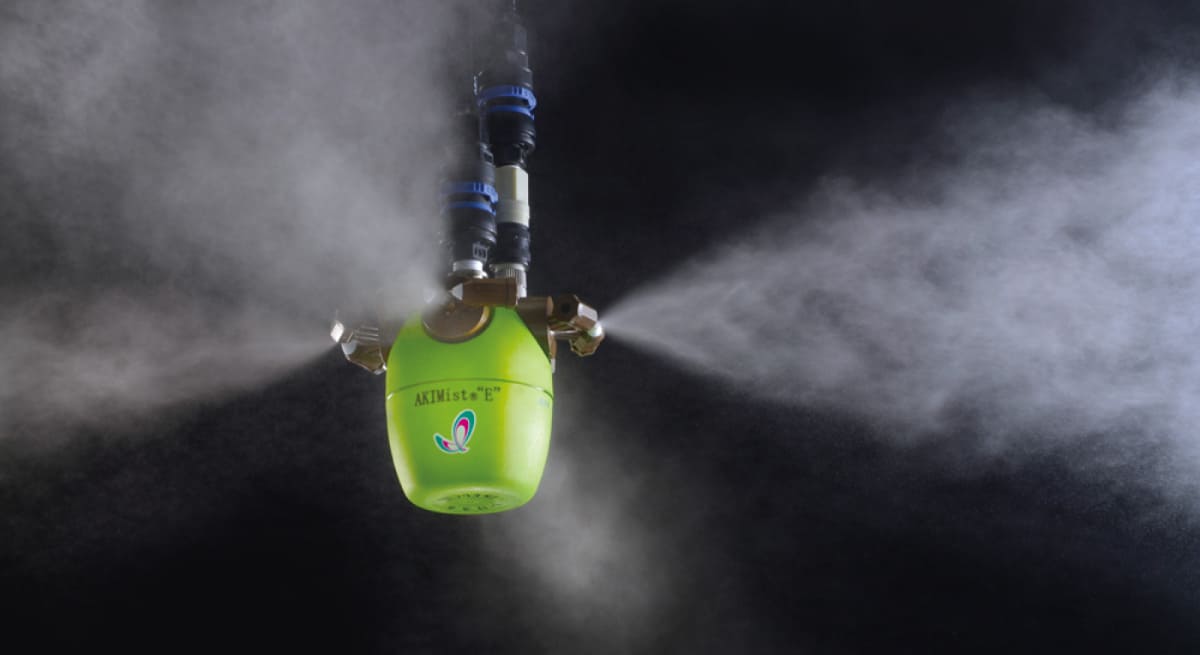

• With world-leading technology, our AKIMist “E” produces ultra-fine “non-wetting” Dry Fog, which doesn’t wet the objects it touches.
• Prevents dryness and static electricity, enabling higher manufactured product quality and lower defect rates.
• The running cost is one-fifth of a comparable steam humidification system.
Applications
- Static electricity prevention: Prevents/reduces troubles caused by static charge, such as product damage, (electrostatic damage) and debris/dust adhesion, etc.
- Energy saving: The running-costs of our system are only one-fifth of a typical steam humidification system, resulting in drastic energy savings.
- Cooling effects: The system also yields a cooling of about 2℃, reducing temperatures with evaporative cooling (using the principle of heat loss due to water evaporation of Dry Fog).
- Health-related benefits: Maintaining a relative humidity level of 50% dramatically reduces cold viruses, influenza (flu) viruses and so forth, thus reducing worker absences caused by illness.
- [Electronics] Preventing electrostatic discharge damage during assembly, mounting/installation and tests; preventing debris and dust adhesion; mitigating rises in incorrect-chucking rates; preventing mounting errors.
- [Paper & Pulp, Printing] Rotogravure printing: Preventing ink pan and ink roll fires, preventing debris and dust adhesion.
Industries where this nozzle is used
- Steelmaking
- Pollution control
- Machinery
- Paper & Pulp
- Printing
- Food products
- Agriculture
- Livestock
- Automotive manufacturing
- Environment and Entertainment
