Solid Stream Air Nozzles

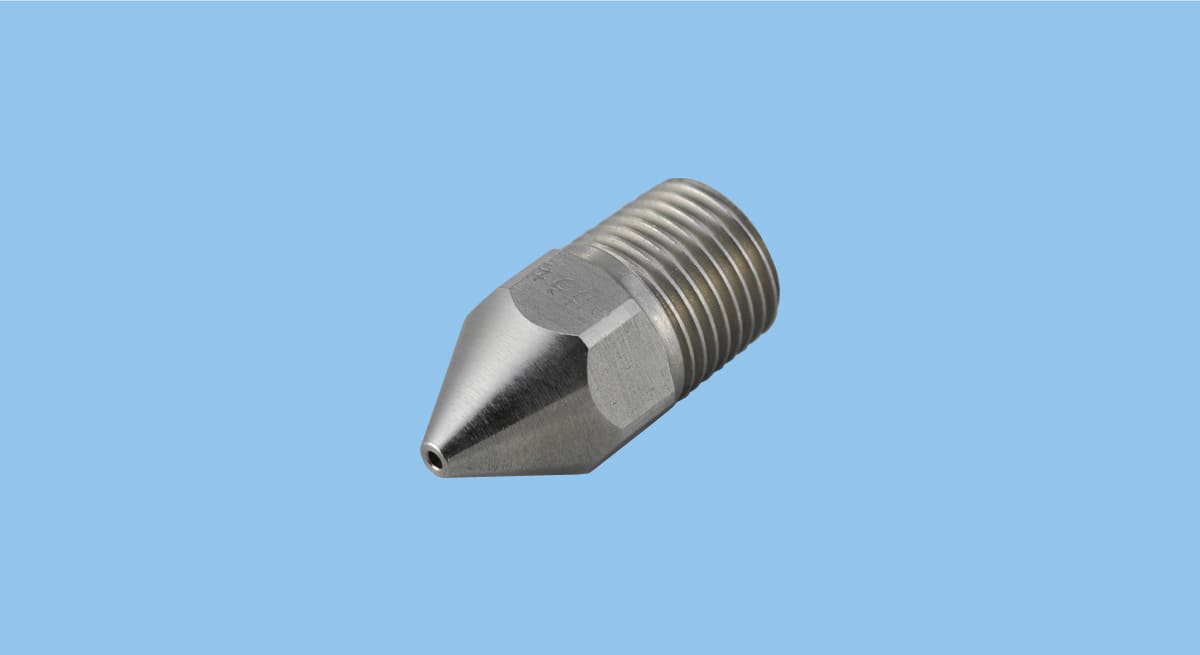

CCP-A
An air nozzle ejecting a single straight air stream, featuring high directionality and a strong air blow effect.
Specs
| Air Inlet Thread Size | R1/8, 1/4 |
|---|---|
| Main Material | S303 |
| Air Supply | Compressed air |
| Max. Operating Pressure | 1.0 MPa |
| Max. Temperature | 400℃ |
| Noise Level | 66–84 dBA *1 |
| Air Consumption | 35–215 NL/min *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) at 0.3 MPa, 1,000 mm distance
*2) 35–215 L/min, Normal at 0.3 MPa
Resources for Download
• Delivers a single solid precision air jet stream concentrated on one point.
• Four models available with different blowing powers, ranging from φ1.0 to φ2.5 mm in orifice diameters.
• Cost-effective nozzle for use in large quantities.
Applications
- Blow-off drying: Blow-off for engine block
- Rejection: Rejection of inferior products
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
