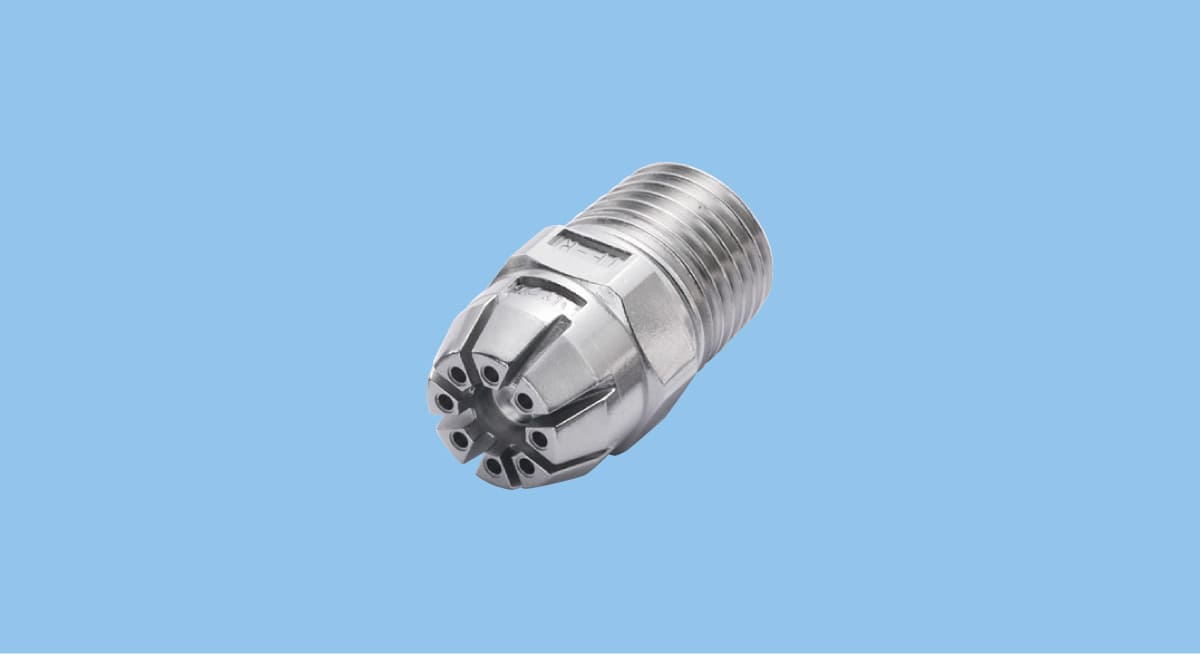

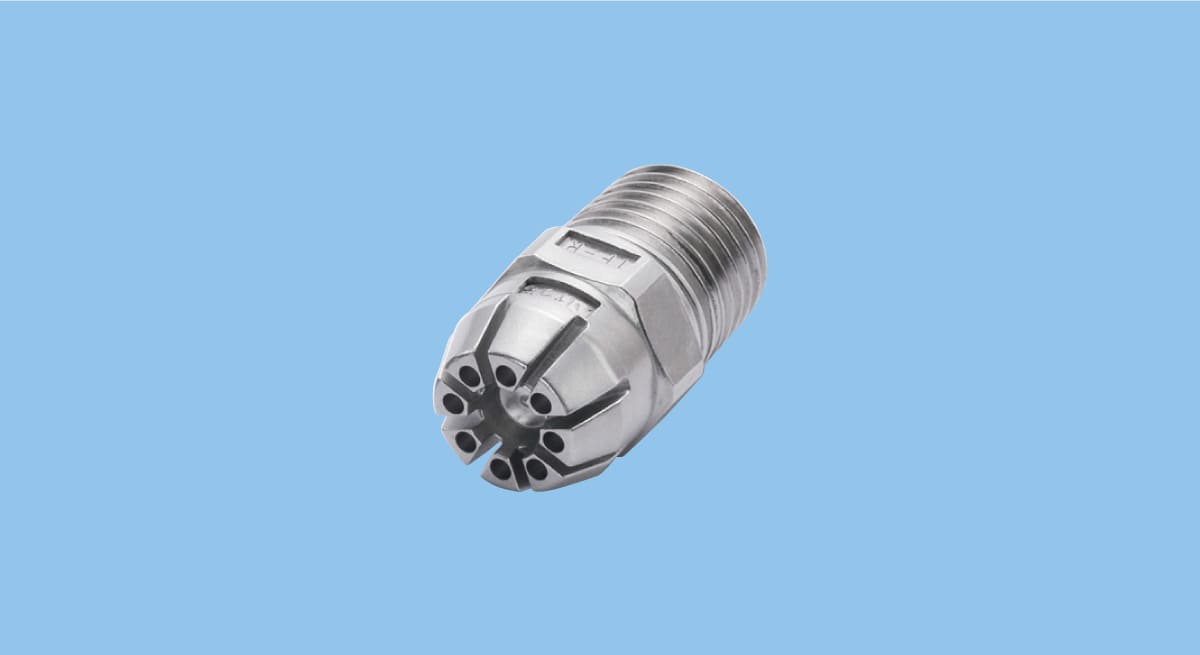

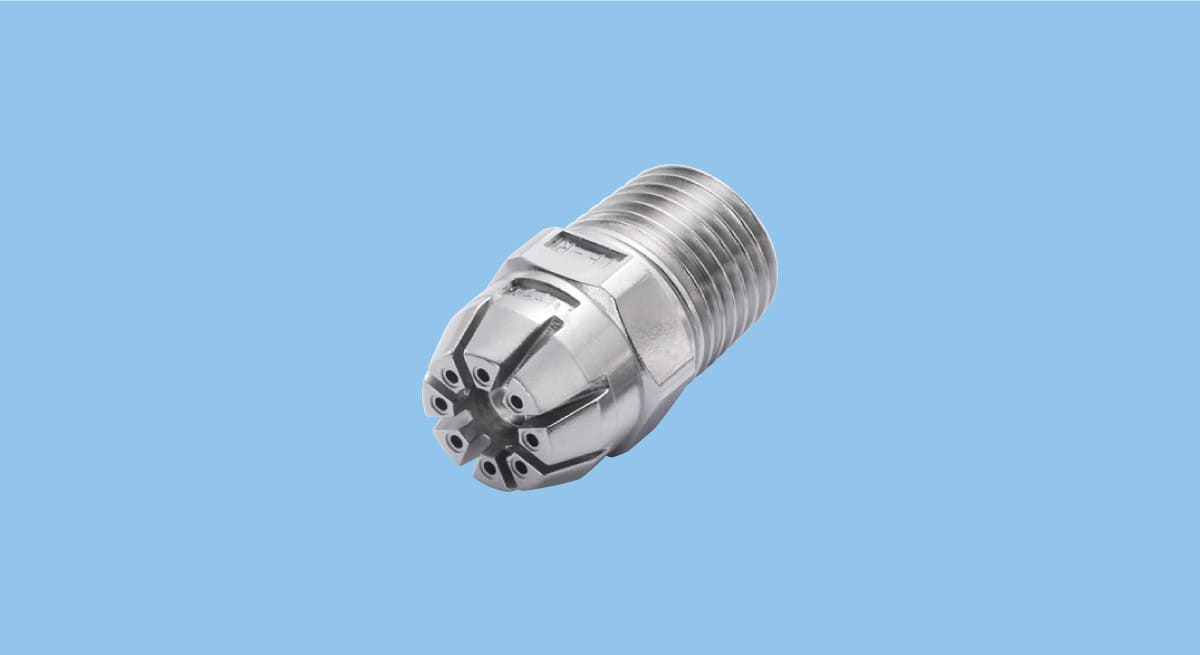

Round Air Nozzles
TF-R (Metal)
TAIFUJet Series: air booster nozzles capable of spot blowing.
Specs
| Air Inlet Thread Size | R1/8, R1/4 |
|---|---|
| Main Material | S316L equivalent |
| Air Supply | Compressed air |
| Max. Operating Pressure | 1.0 MPa |
| Max. Temperature | 400℃ |
| Noise Level | 71–87 dBA *1 |
| Air Consumption | 157–627 NL/min *2 |
| Spray Width at Specified Pressure | 35 mm *3 |
| Spray Thickness at Specified Pressure | 30–40 mm *3 |
*1) at 0.3 MPa, 1,000 mm distance
*2) 157–627 L/min, Normal (at 0.3 MPa)
*3) at 0.3 MPa, 100 mm distance.
Resources for Download
• High impact solid stream of air flown from eight holes.
• Compact design, lightweight.
• Quiet operation with noise level reduced by more than 10 dB (A) compared to conventional one-hole air nozzle.
Applications
- Blow-off drying: Blow-off drying for engine block
- Blowing off: Rejection of inferior products
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
