Air Booster Nozzles

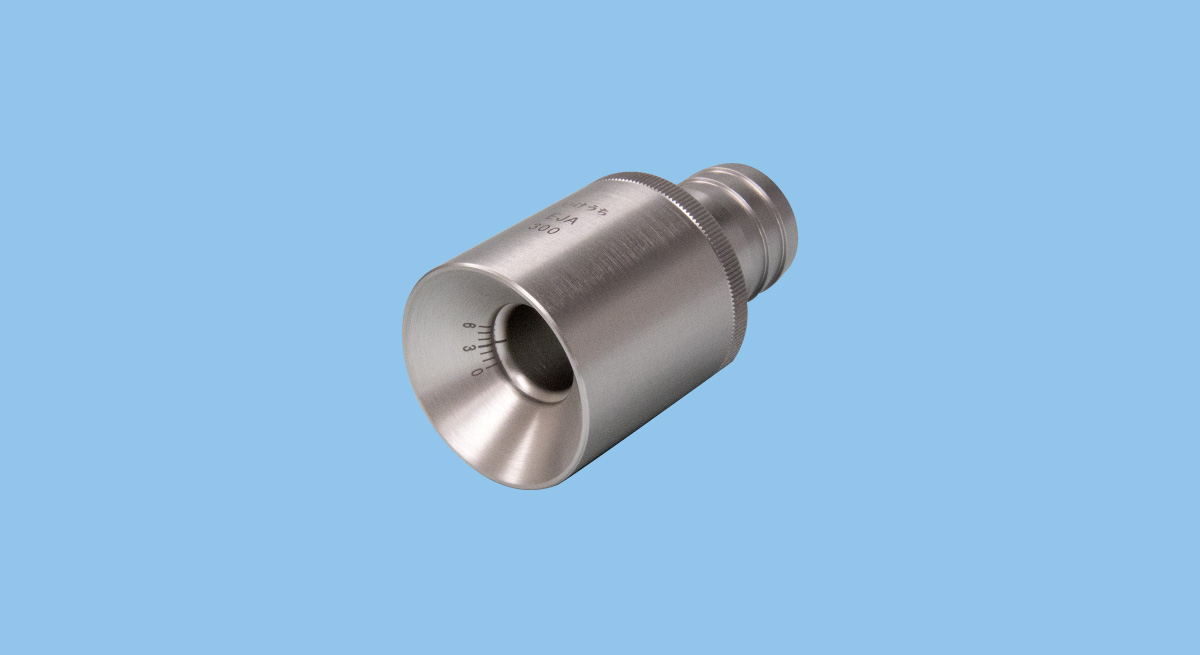

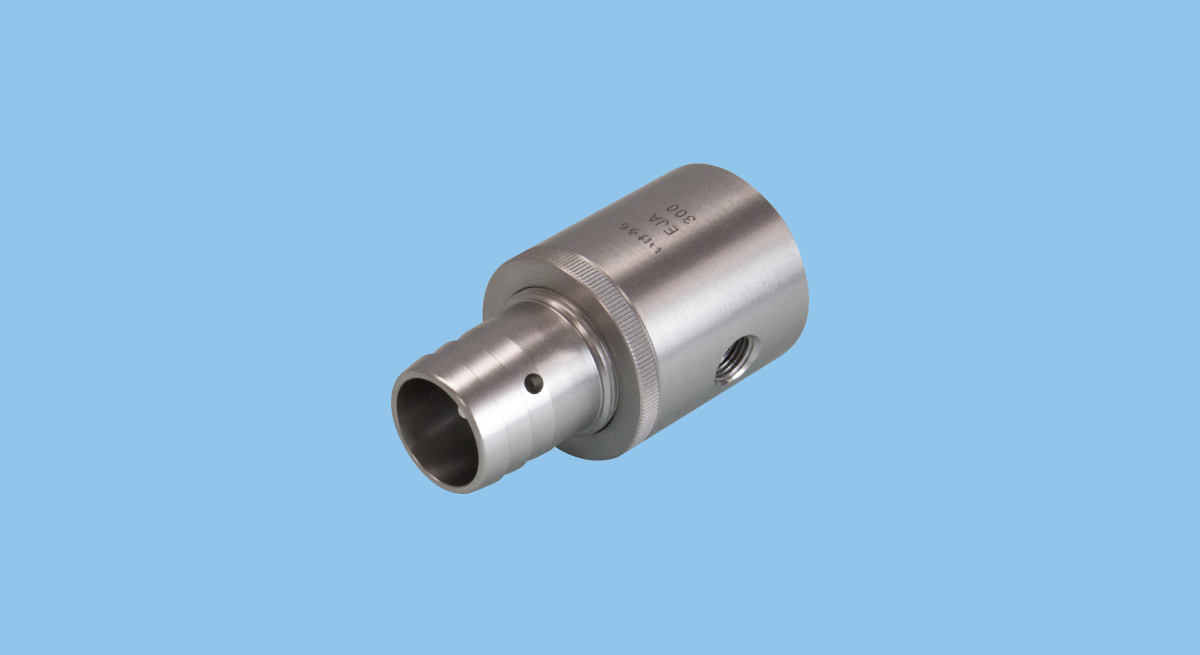

EJA
An airi nozzle that draws in surrounding air, amplifies it, and blows it out.
It can be utilized for applications such as suction and powder transfer.
Specs
| Air Inlet Thread Size | Rc1/8, Rc1/4, Rc3/8 |
|---|---|
| Main Material | S303 |
| Air Supply | Compressed air |
| Max. Operating Pressure | 0.6 MPa |
| Noise Level | 83 dBA or less *1 |
| Air Consumption | 150–750 NL/min *2 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) at 0.3 MPa, 1,000 mm distance
*2) 150–750 L/min, Normal at 0.3 MPa (with air flow dial set to 3)
Resources for Download
• By adding ambient air to supplied air, the air output is amplified many times*, while drastically reducing supplied air usage.
• Built-in flow valve for precise adjustment of air volume for intake and output.
• Suitable for powder transfer.
• Made of stainless steel with high durability.
*Blowing air volume will be 2 to 20 times larger than the air consumption, variable by air pressure and setting of flow adjustment dial.
See the catalog below for details.
Applications
- Blowing off dust/paint dust, Rejection of inferior products, Blowing off drying
- Blowing extraneous liquids or powders off of items passing by on the conveyor belt
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
