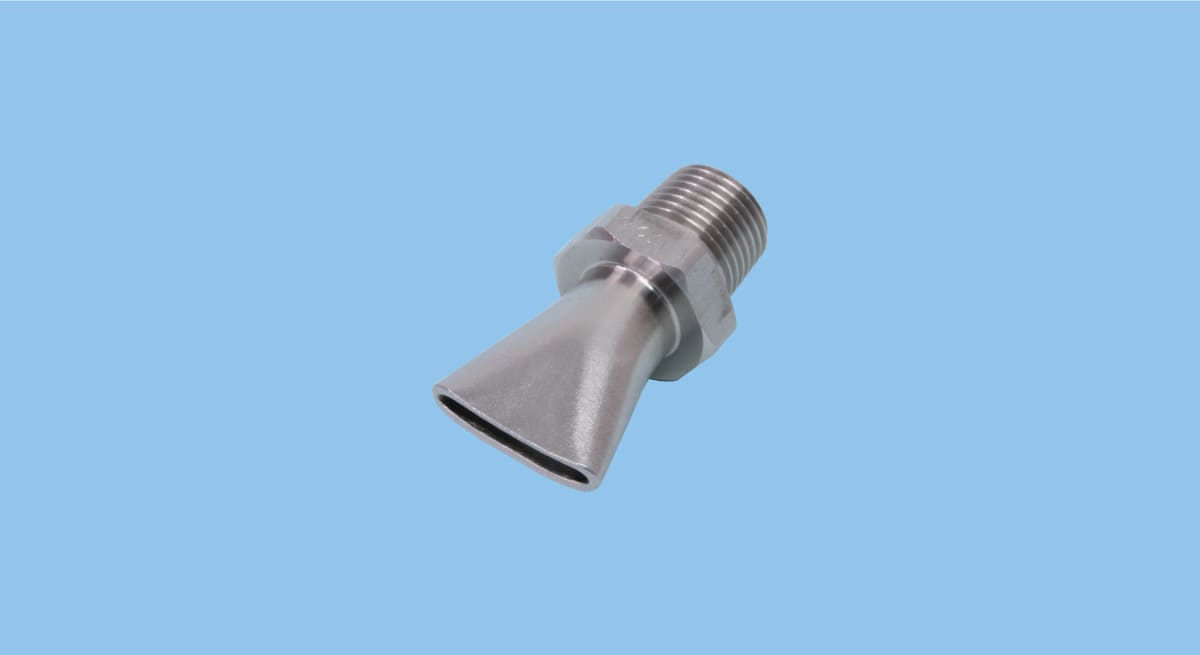

Flat Air Nozzles
SAP
Air nozzles featuring a compact design suitable for use in tight spaces.
Specs
| Air Inlet Thread Size | R1/8, 1/4 |
|---|---|
| Main Material | S304 |
| Air Supply | Compressed air, Blower air |
| Max. Operating Pressure | 0.7 MPa *1 |
| Max. Temperature | 400℃ |
| Noise Level | 76 dBA *2 |
| Air Consumption | 736–1,016 NL/min *3 |
| Spray Width at Specified Pressure | 55 mm *4 |
| Spray Thickness at Specified Pressure | 45 mm *5 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Compressors: 0.7 MPa, Blowers: 50 kPa
*2) 1/4M SAP17-15 S304 at 30kPa, 1,000 mm distance
*3) Compressor air: 736–1,016 L/min, Normal at 0.3 MPa,
Blower air: 0.208–0.287 m3/min [208–287 L/min], Normal at 30 kPa
*4, *5) 1/4M SAP17-15 S304 at 30kPa, 100 mm distance
Resources for Download
• Compact design allows for installation in tight spaces and smaller equipment.
• Designed for minimum pressure loss which improves blowing impact and reduces air consumption.
• Lower cost is ideal for use in large quantities.
Applications
- Blow-off drying: Blow-off for engine block
- Rejection: Rejection of inferior products
- Cooling: Pinpoint cooling for molded plastic
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
