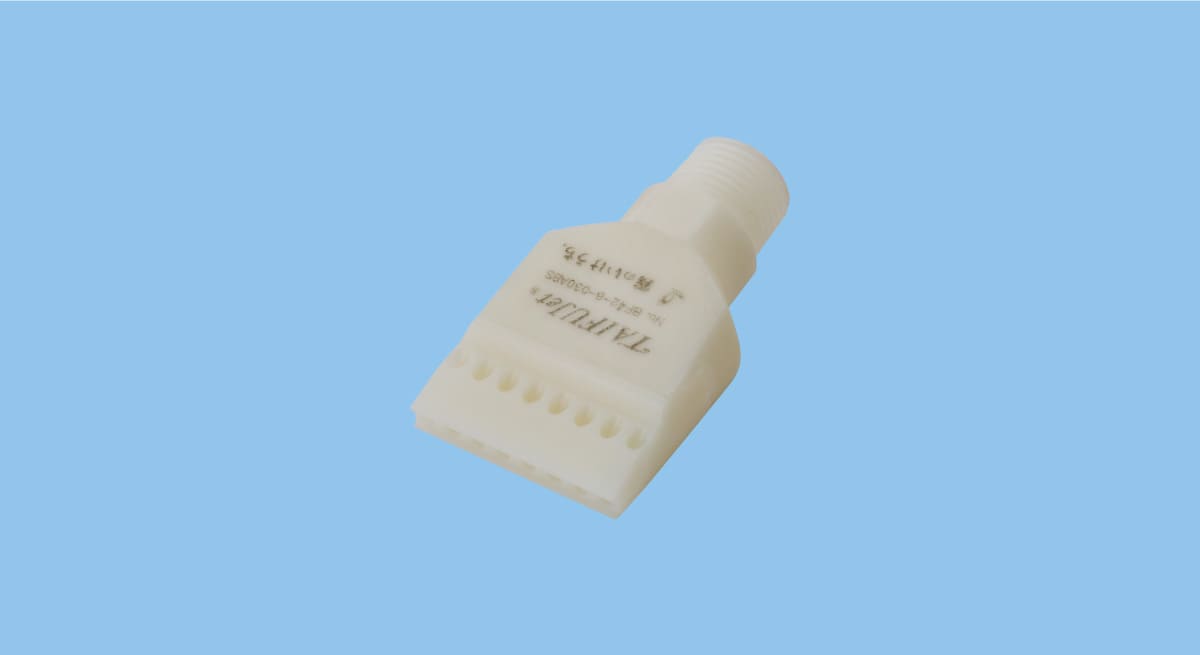

Flat Air Nozzle
TF-BF
TAIFUJet Series: air booster nozzles featuring a flat blow pattern and a uniform air flow distribution.
Specs
| Air Inlet Thread Size | R1/2 |
|---|---|
| Main Material | ABS |
| Air Supply | Blower air |
| Max. Operating Pressure | 100 kPa |
| Max. Temperature | 80℃ |
| Noise Level | 85 dBA *1 |
| Air Consumption | 0.565 N㎥/min *2 |
| Spray Width at Specified Pressure | 50 mm *3 |
| Spray Thickness at Specified Pressure | 50 mm *4 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) 85 dBA at 30 kPa
*2) 0.565 m3/min [565 L/min], Normal at 30 kPa
*3)*4) at 100 mm below the nozzle orifice
Resources for Download
• 42 mm wide air booster nozzle delivers a flat blow pattern.
• Powerful, high impact air stream lowers energy consumption by 2/3 compared to compressed air nozzles.
• Unique design provides uniform and efficient air flow distribution at low noise level.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment, Blow-off drying for engine block
- Blowing off: Blowing off cutting chips, Blowing off coating powder, Rejection of inferior products, Blowing off dust on steel plates
- Cooling: Pinpoint cooling for molded plastic Others: Detachment, Cleaning, etc.
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
