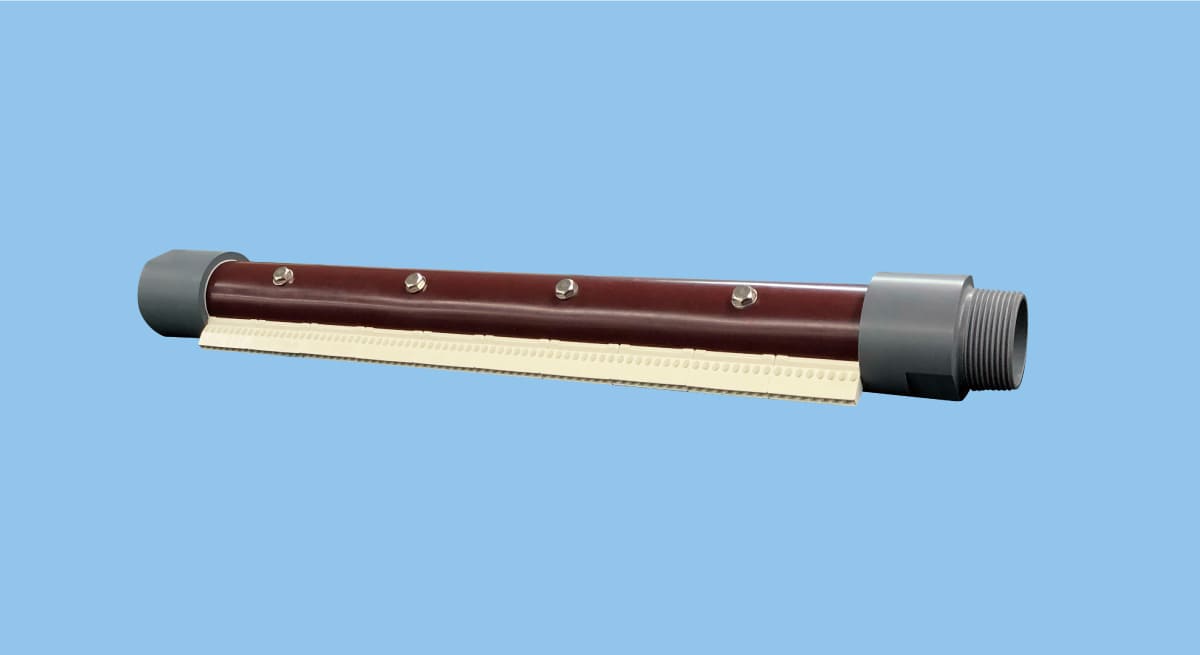

Long, Flat Air Nozzles
TF-BPF
TAIFUJet Series: long, flat blower air nozzles that uniformly cover wide areas.
The design, which involves arranging 42-mm width nozzle tips in a line on its body, allows for manufacturing the nozzle with the desired length in 42 mm increments.
Made of plastic resin (PPS nozzle tip and HTPVC pipe header), or Aluminum.
Specs
| Air Inlet Thread Size | R1–R2*1/2 |
|---|---|
| Main Material | PPS, HTPVC |
| Air Supply | Blower air |
| Max. Operating Pressure | 100 kPa *1 |
| Max. Temperature | 80℃ *2 |
| Noise Level | 106 dBA *3 |
| Air Consumption | 2.94–15.5 N㎥/min *4 |
| Spray Width at Specified Pressure | 425 mm *5 |
| Spray Thickness at Specified Pressure | 50 mm *6 |
Materials: Click here for full material descriptions, including chemical and heat resistance.
*1) Depends on temperature. See the catalog for details.
*2) Depends on operating pressure. See the catalog for details.
*3) At 10–30 kPa, 1,000 mm distance. Model: 1*1/2MTF-BPF420-80-030PPS+HTPVC
*4) 2.94–15.5 N㎥/min [2,940–15,500 L/min], Normal at 30 kPa
*5, *6) At 10 kPa, 100 mm distance. Model: 1*1/2MTF-BPF420-80-030PPS+HTPVC
Resources for Download
• Long flat air booster nozzle suitable for installation in confined spaces.
• Made of plastic resin (PPS nozzle tip and HTPVC pipe header), or Aluminum.
• Unique design provides uniform and efficient distribution of air flow.
• Blow coverage customizable by multiples of 42 mm up to a blow length of 1,596 mm.
Applications
- Blow-off drying: Blow-off drying after washing, Edge wiper for steel surface treatment
- Blowing off dust/paint dust/debris, Blowing off inferior products (rejection of inferior products), Blowing off dust of steel plates
Industries where this nozzle is used
- Steelmaking
- Machinery
- Electronics
- Paper & Pulp
- Printing
- Food
- Automotives
